Descriere

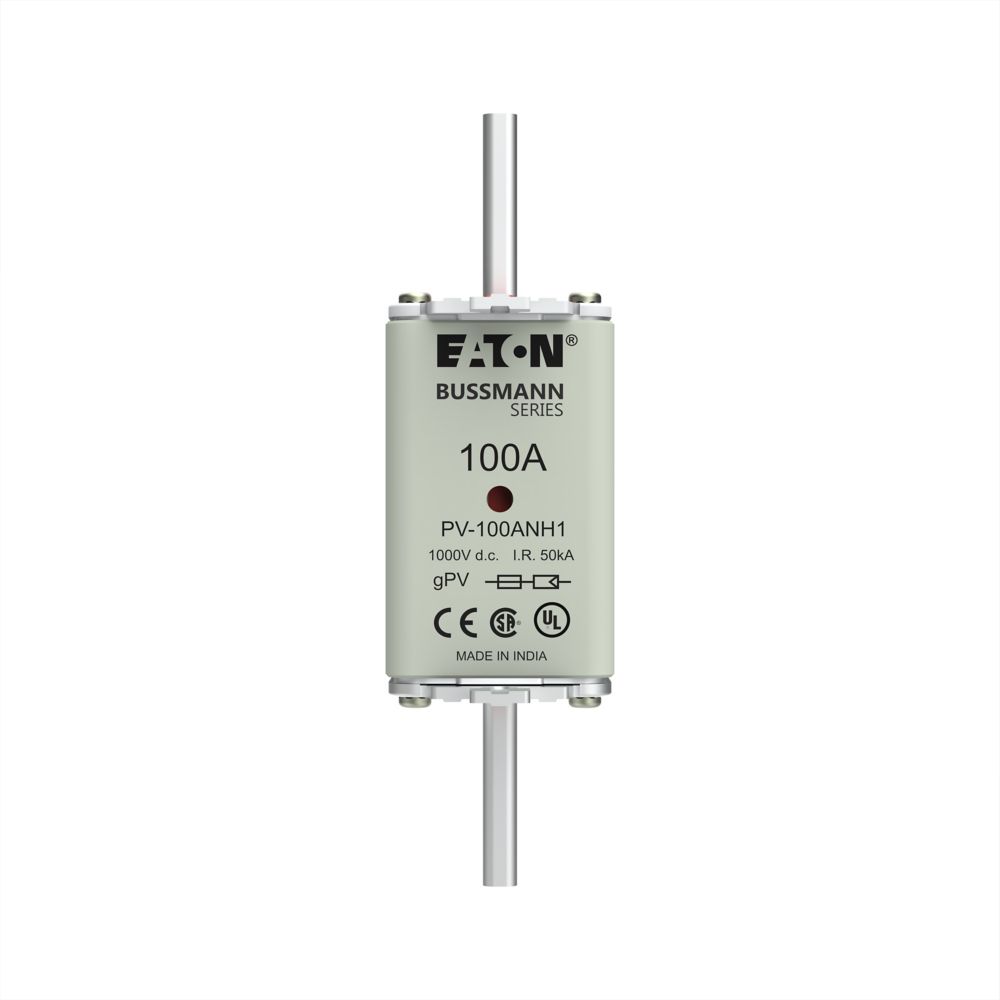

Fuse, Fuse-link, high speed, 100 A, DC 1000 V, NH1, gPV, UL PV, UL, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, protection of photovoltaic array combiners and disconnects, IEC 60269-6, UL2579, Breaking Capacity 50 kA, Optional accessories fuse-holder SD1-D-PV
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH1 |
| Voltage type | DC |
| Rated current | 100 |
| Rated voltage AC | - |
| Rated voltage DC | 1000 |
| Power loss at rated current | 16.5 |
| Performance | |
| Rated switching capacity AC | - |
| Rated switching capacity DC | 50 |
| Other | |
| Utilization category according to IEC 60269 | gPV |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| volume | 0,0003402 |
| weight | 0,407333 |
| length | 0,137 |
| width | 0,042 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590505314 |
| Package 2 | |
| volume | 0,00124834 |
| weight | 1,222 |
| length | 0,137 |
| width | 0,134 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590299428 |
| Package 3 | |
| volume | 0,01919365 |
| weight | 15,199 |
| length | 0,427 |
| width | 0,29 |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 5027590353144 |
| Dimensions of product | |
| Volume | 0,0003402 |
| Weight | 0,407333 |
| Length | 0,135 |
| Width | 0,04 |
| Depth | 0,063 |
