Descriere

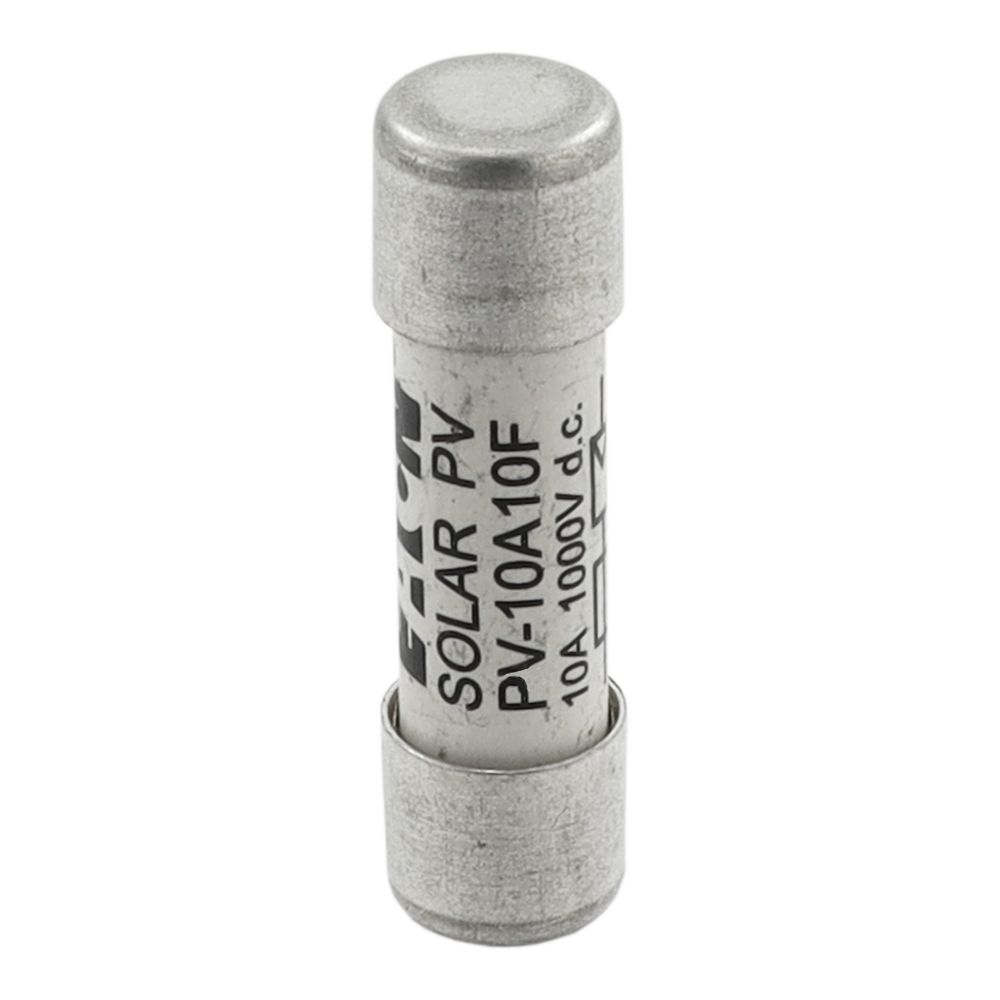

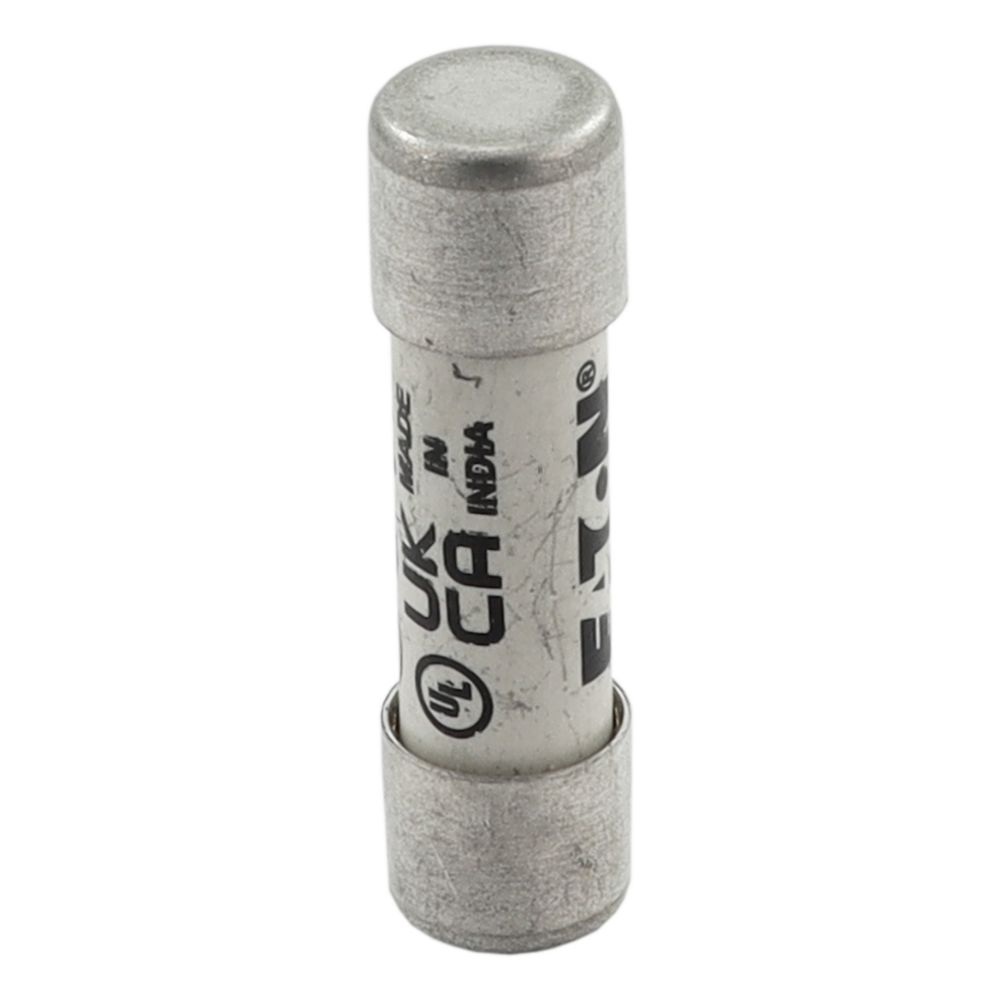

Fuse, Fuse-link, high speed, 10 A, DC 1000 V, IEC 60269-6 type A, 10 x 38 mm, gPV, UL PV, UL, IEC, cylindrical, protection of solar PV strings, IEC 60269-6, UL 249-19, Breaking Capacity 50 kA, Optional accessories fuse-holder CHPV1U
Documente
Fisa tehnica
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 10x38 mm |
| Electrical | |
| Voltage type | DC |
| Rated current | 10 |
| Rated voltage | 1000 |
| Release characteristic | Other |
| Breaking capacity | 50 |
| Power loss at rated current | 1.2 |
| Other | |
| Utilization category according to IEC 60269 | gPV |
| Rated operating frequency | 0 |
| Package 1 | |
| volume | 0,0000038 |
| weight | 0,0094 |
| length | 0,04 |
| width | 0,012 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590505352 |
| Package 2 | |
| volume | 0,00054648 |
| weight | 0,094 |
| length | 0,044 |
| width | 0,054 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590263344 |
| Package 3 | |
| volume | 0,018865 |
| weight | 19,384 |
| length | 0,385 |
| width | 0,28 |
| qmax | 1200 |
| qmin | 1200 |
| um | CT |
| gtin | 5027590365499 |
| Dimensions of product | |
| Volume | 0,0000038 |
| Weight | 0,0094 |
| Length | 0,038 |
| Width | 0,01 |
| Depth | 0,01 |
