Descriere

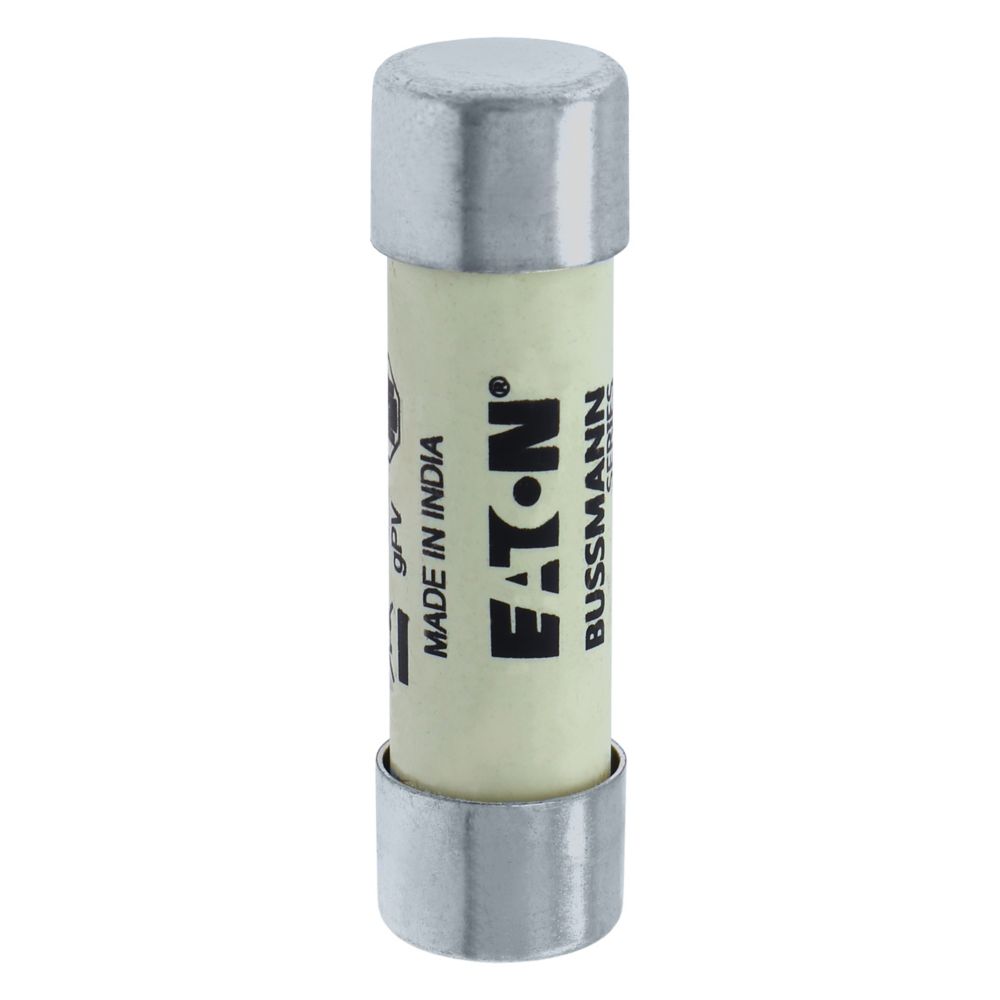

Fuse, Fuse-link, high speed, 15 A, DC 1100 V, IEC60269-6 type A, 14 x 51 mm, gPV, IEC, cylindrical, protection of solar PV strings, IEC 60269-6, UL2579, Breaking Capacity 30 kA
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | - |
| Electrical | |
| Voltage type | DC |
| Rated current | 15 |
| Rated voltage | 1100 |
| Release characteristic | Other |
| Breaking capacity | 30 |
| Power loss at rated current | 4 |
| Other | |
| Utilization category according to IEC 60269 | gPV |
| Rated operating frequency | 0 |
| Package 1 | |
| volume | 0,00001 |
| weight | 0,0215 |
| length | 0,053 |
| width | 0,016 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590505505 |
| Package 2 | |
| volume | 0,00012848 |
| weight | 0,215 |
| length | 0,055 |
| width | 0,073 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590299480 |
| Package 3 | |
| volume | 0,018865 |
| weight | 17,3 |
| length | 0,385 |
| width | 0,28 |
| qmax | 800 |
| qmin | 800 |
| um | CT |
| gtin | 5027590365604 |
| Dimensions of product | |
| Volume | 0,00001 |
| Weight | 0,0215 |
| Length | 0,051 |
| Width | 0,014 |
| Depth | 0,014 |
