Descriere

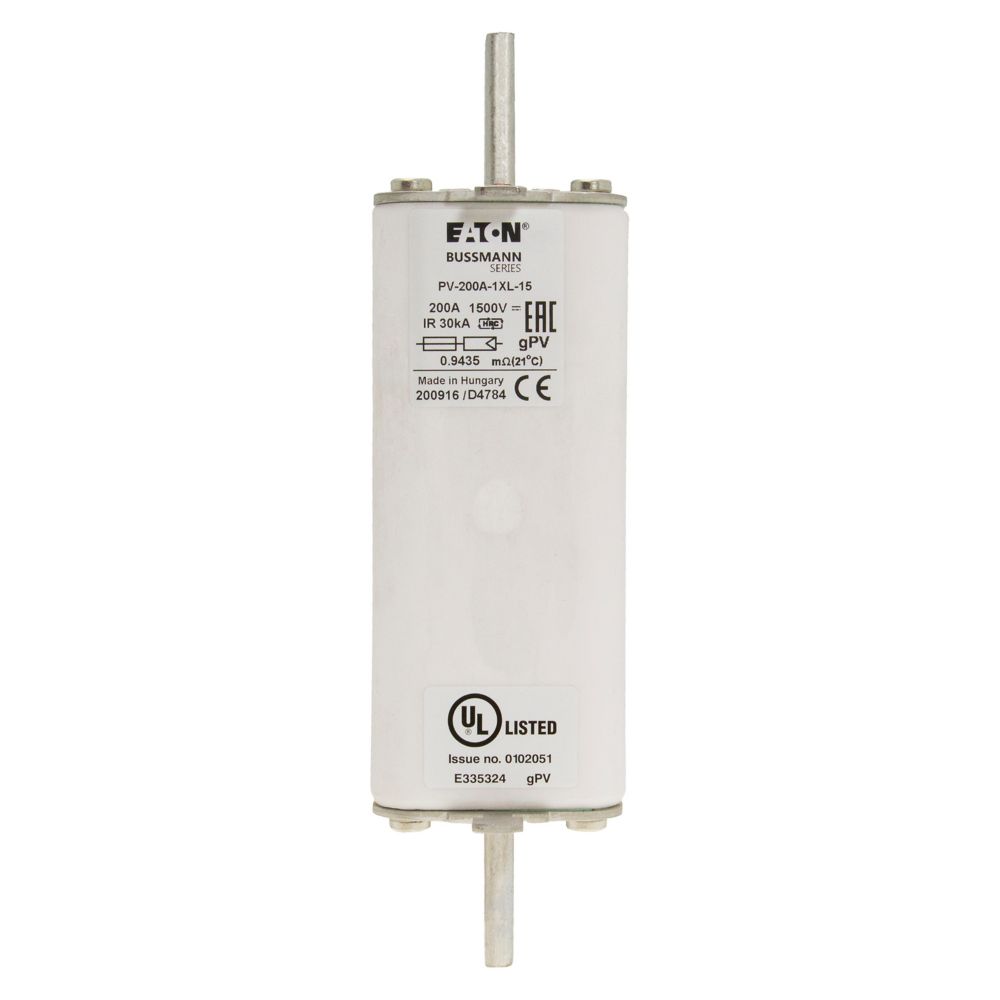

Fuse, Fuse-link, high speed, 200 A, DC 1500 V, 1XL, 51 x 189 mm, gPV, IEC, UL, with indicator, square body with knife blade contacts, photovoltaic array combiners and disconnects, IEC 60269-6, UL 2579, Breaking Capacity 33 kA, Optional accessories fuse-holder SD1XL-S
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 1XL |
| Rated voltage AC | - |
| Rated voltage DC | 1500 |
| Rated current | 200 |
| Breaking capacity | 30 |
| Power loss at rated current | 61 |
| Model/type | |
| Type of current | DC |
| Colour code | White |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | gPV |
| Mounting/installation | |
| Mounting holes | - |
| Connection | |
| Centre-to-centre distance of connections | - |
| Package 1 | |
| volume | 0,00119893 |
| weight | 1,2 |
| length | 0,217 |
| width | 0,085 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516000625 |
| Dimensions of product | |
| Volume | 0,001199 |
| Weight | 1,2 |
| Length | 0,217 |
| Width | 0,085 |
| Depth | 0,065 |
