Descriere

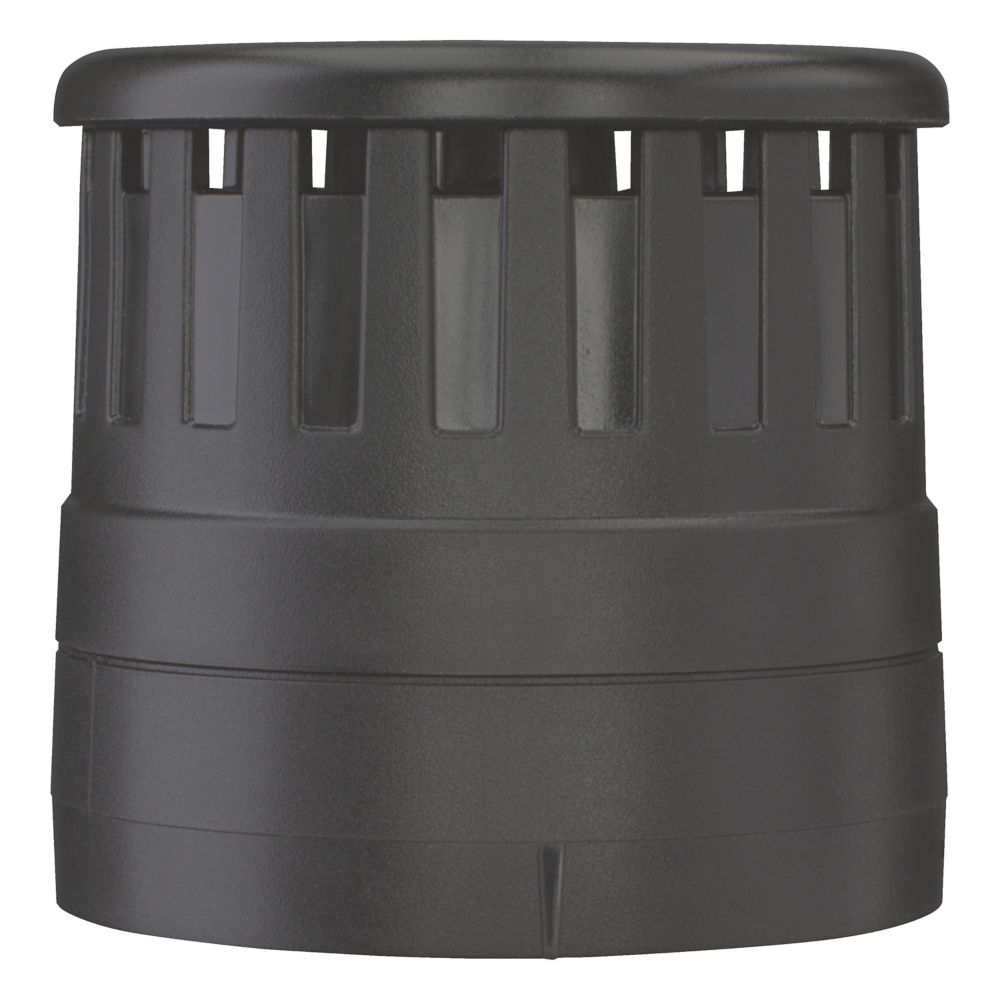

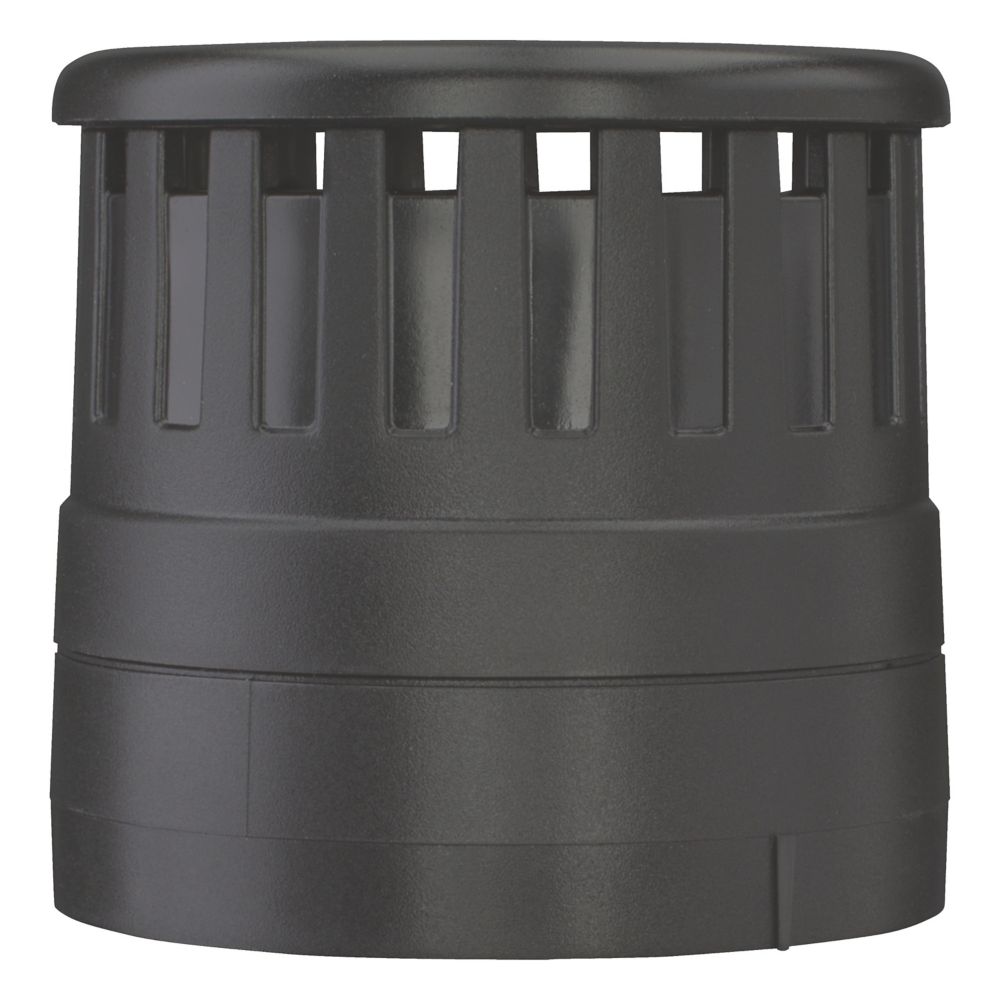

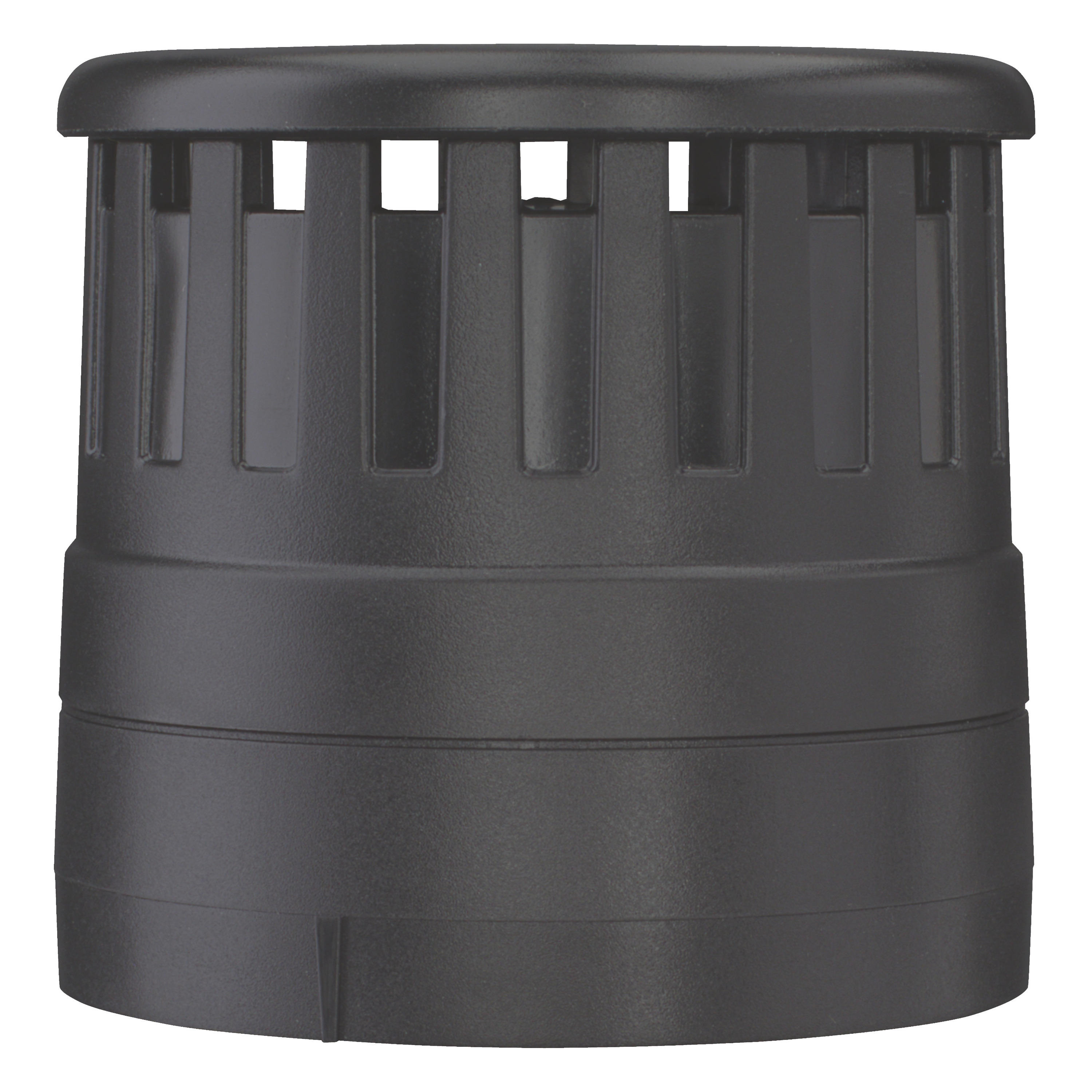

Acoustic module, 230/240 V AC, multi-tone (8 tones) adjustable with internal dip switch, sound pressure 100 db, adjustable with internal potentiometer, f = 0.5 - 2.7kHz, IP66
Specificatii
| Model/type | |
| Function | Other |
| Measurements | |
| Outer diameter | 73 |
| Colour | |
| Colour | Black |
| Electrical | |
| Operating voltage AC 50 Hz | 230 |
| Operating voltage AC 60 Hz | 230 |
| Operating voltage DC | 0 |
| Voltage type | AC |
| Setting/control | |
| Tone adjustable | Yes |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 13 |
| Energy efficiency/environmental | |
| Loudness | 100 |
| Package 1 | |
| volume | 0,00044903 |
| weight | 0,118 |
| length | 0,074 |
| width | 0,074 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081678334 |
| Dimensions of product | |
| Volume | 0,00037836 |
| Weight | 0,103 |
| Length | 0,073 |
| Width | 0,073 |
| Depth | 0,071 |
