Descriere

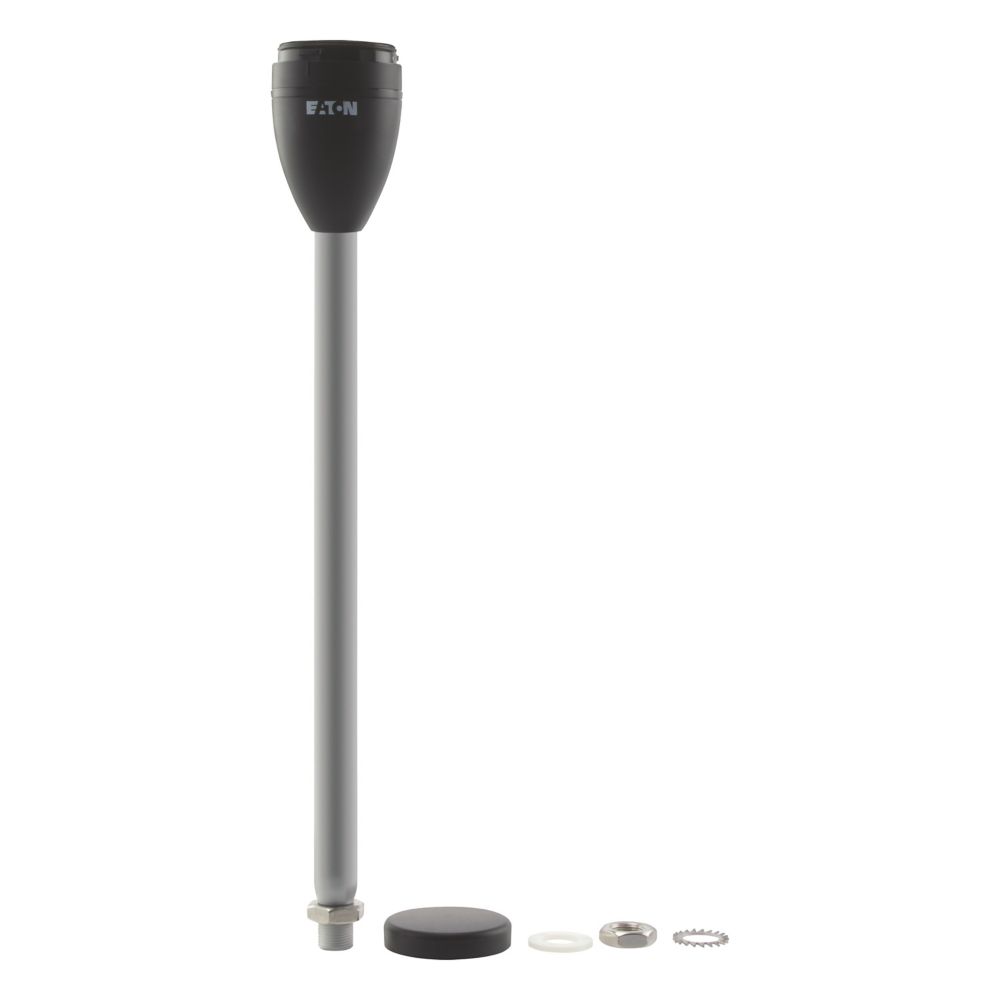

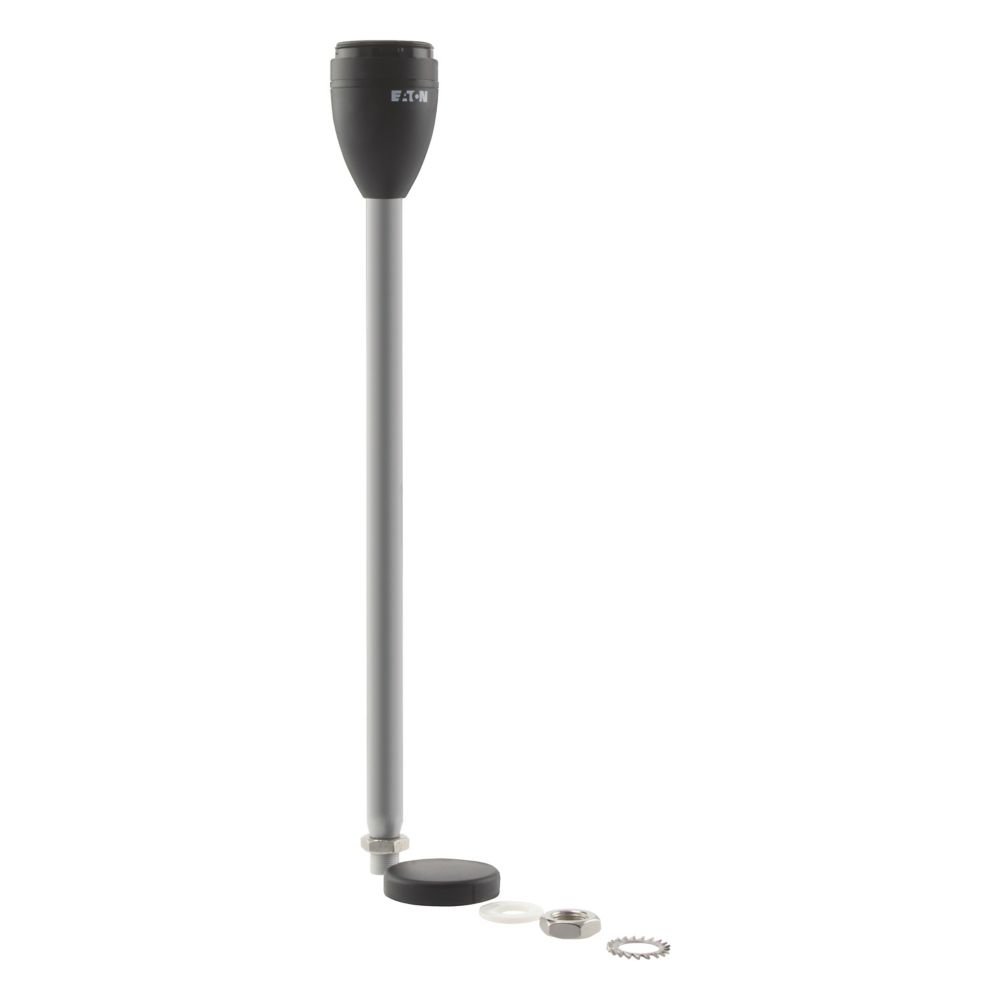

Base module, Color black, Aluminum color tube, Product range: SL signal towers, Connection technique: Spring-loaded terminals, Mounting type: for horizontal mounting, Fitted with: Base with aluminum tube and banjo bolt, including cover, Tube length: 400 mm, Number of modules: max. 5 modules, For use with: SL7-L-…, SL7-BL-…, SL7-FL-…, SL7-AP-…, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 4, 4X, 13
Specificatii
| Connection | |
| Connection type auxiliary circuit | Spring clamp connection |
| Suitable for M12 connector | No |
| Mounting/installation | |
| Suitable for tube mounting | Yes |
| Suitable for angle mounting | Yes |
| Suitable for floor mounting | Yes |
| Colour | |
| Colour | Other |
| Application | |
| Suitable for AS interface | No |
| Suitable for IO link | No |
| Package 1 | |
| volume | 0,005021 |
| weight | 0,536 |
| length | 0,085 |
| width | 0,085 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081677832 |
| Dimensions of product | |
| Volume | 0,002755 |
| Weight | 0,41 |
| Length | 0,073 |
| Width | 0,073 |
| Depth | 0,517 |
