Descriere

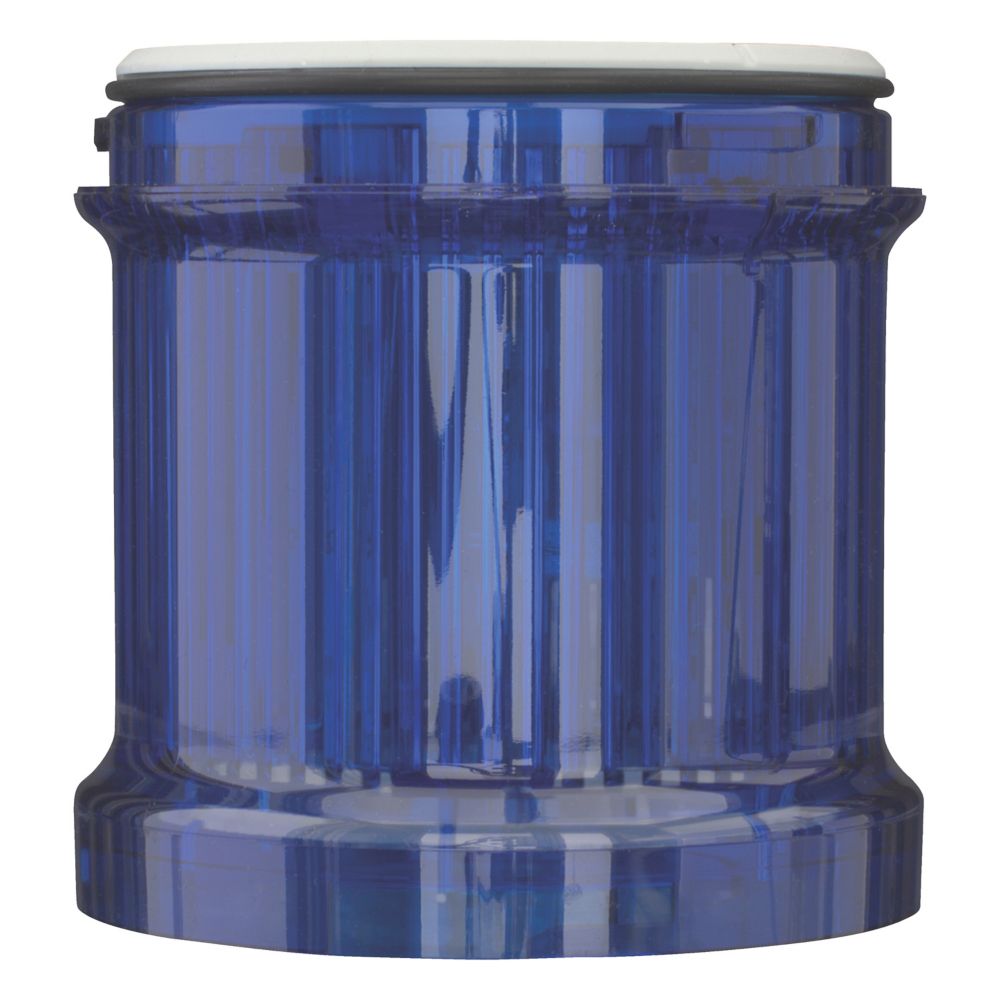

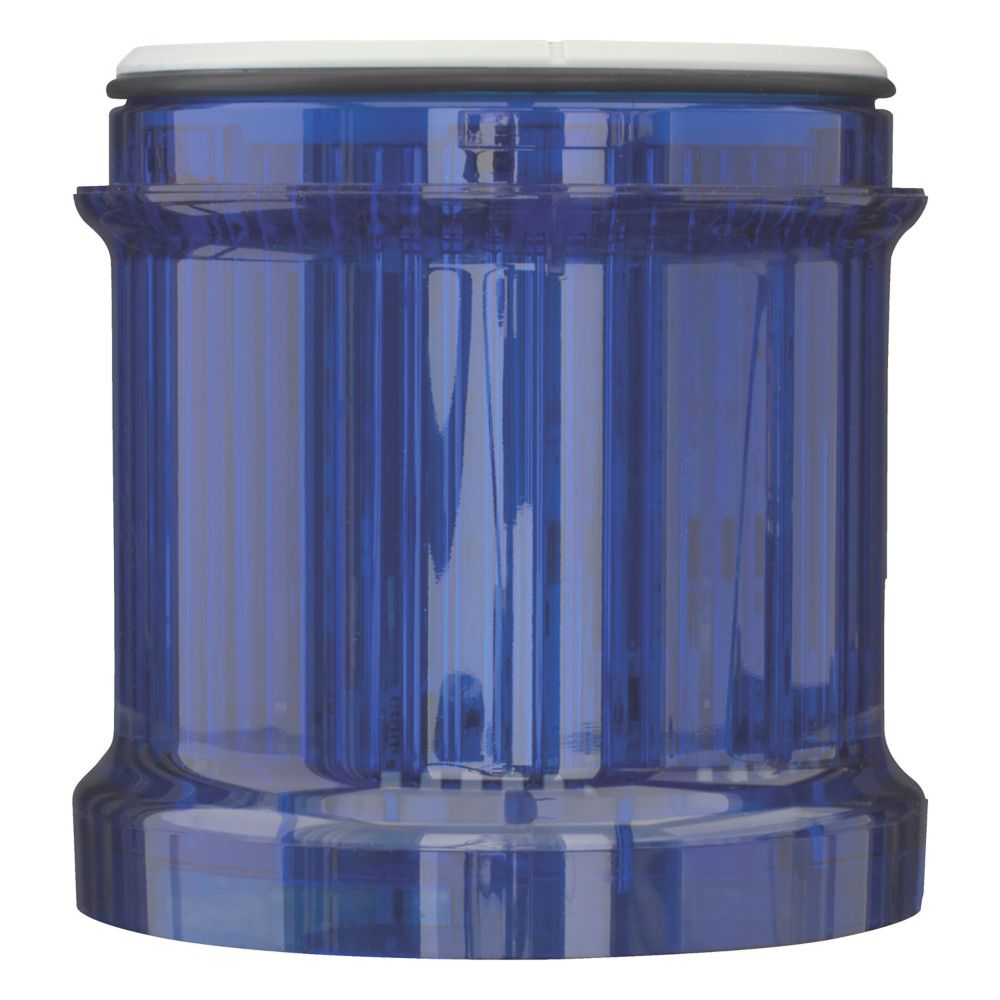

Continuous light module, Color Blue, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= 230/240 V AC, Type of light: Continuous light, Light elements: LED, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1
Specificatii
| Model/type | |
| Function | Continuous light |
| Lamp type | LED |
| Options | |
| Repetition frequency settable | No |
| Colour | |
| Colour | Blue |
| Housing colour | Black |
| Measurements | |
| Outer diameter | 73 |
| Electrical | |
| Operating voltage AC 50 Hz | 230 |
| Operating voltage AC 60 Hz | 230 |
| Operating voltage DC | 0 |
| Voltage type | AC |
| Power consumption | - |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4 |
| Package 1 | |
| volume | 0,00044903 |
| weight | 0,097 |
| length | 0,074 |
| width | 0,074 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081677993 |
| Dimensions of product | |
| Volume | 0,00038902 |
| Weight | 0,082 |
| Length | 0,073 |
| Width | 0,073 |
| Depth | 0,073 |
