Descriere

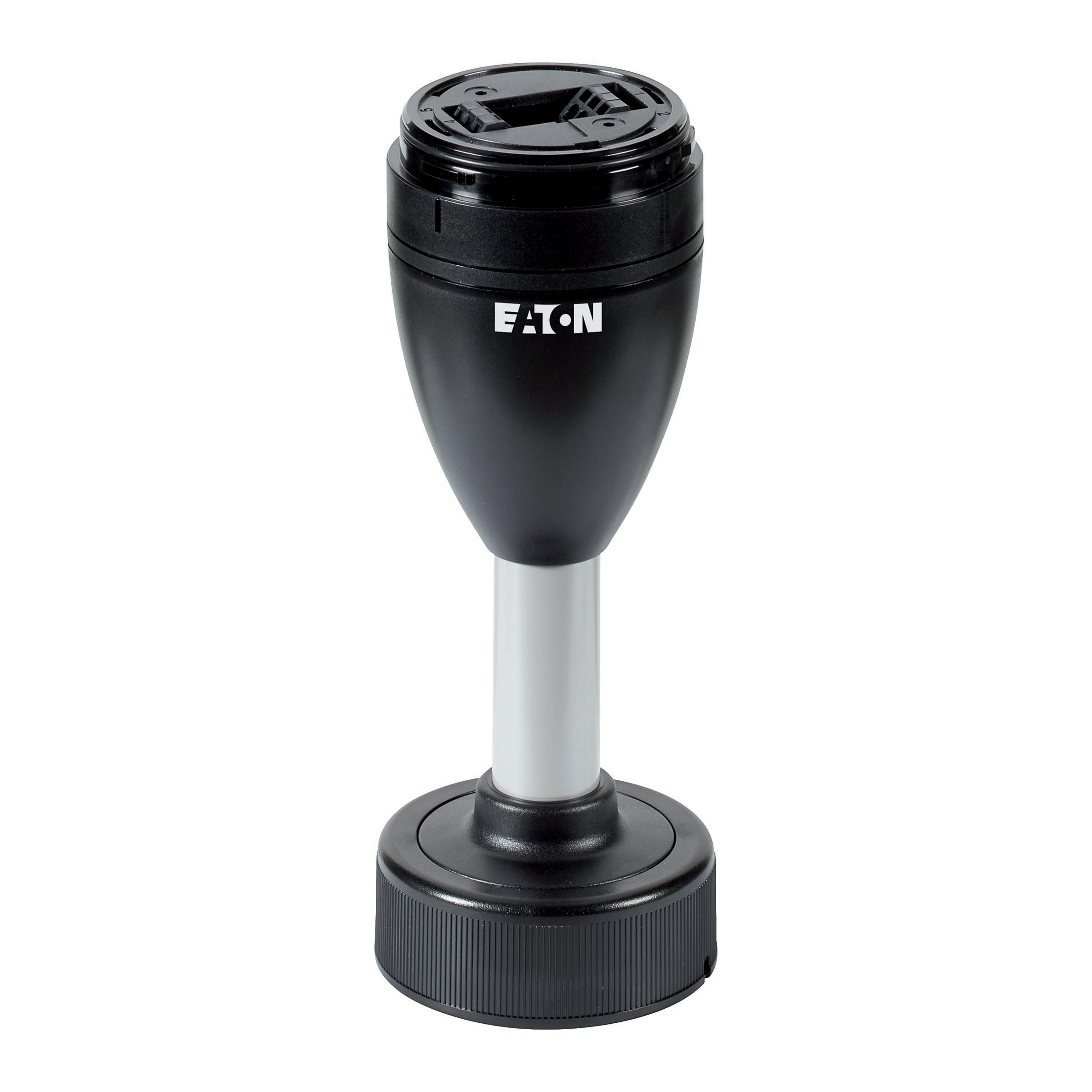

Base module, Color black, Aluminum color tube, Product range: SL signal towers, SmartWire-DT slave, Subrange: SmartWire-DT Signal towers, Connection technique: Blade terminal SWD4-8MF2, Mounting type: for horizontal mounting, Fitted with: Base with base adapter for slipping onto place (rapid mounting and wiring system), including cover, Tube length: 100 mm, Description: External power supply connectable (24 V DC), Configurable with SWD‐Assist (planning and ordering tool), Further technical data, see manual MN05006001Z., Number of modules: max. 5 modules, max. 0.3 A per module, For use with: SL7-L-…, SL7-BL-…, SL7-FL-…, SL7-AP-… , Connection to SmartWire-DT: yes, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 4, 4X, 13
Specificatii
| Connection | |
| Connection type auxiliary circuit | Spring clamp connection |
| Suitable for M12 connector | No |
| Mounting/installation | |
| Suitable for tube mounting | No |
| Suitable for angle mounting | Yes |
| Suitable for floor mounting | Yes |
| Colour | |
| Colour | Other |
| Application | |
| Suitable for AS interface | No |
| Suitable for IO link | No |
| Package 1 | |
| volume | 0,00224 |
| weight | 0,275 |
| length | 0,085 |
| width | 0,085 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081677870 |
| Dimensions of product | |
| Volume | 0,001148 |
| Weight | 0,231 |
| Length | 0,081 |
| Width | 0,081 |
| Depth | 0,175 |
