Descriere

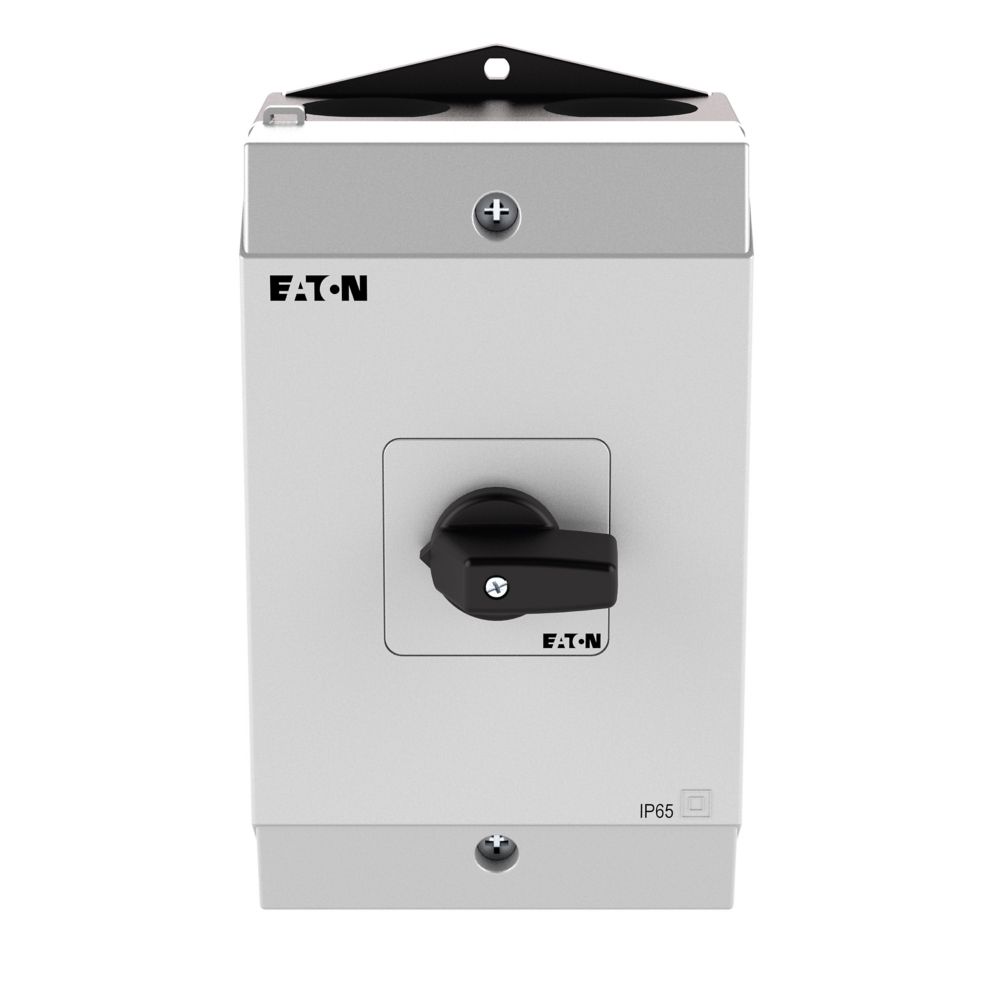

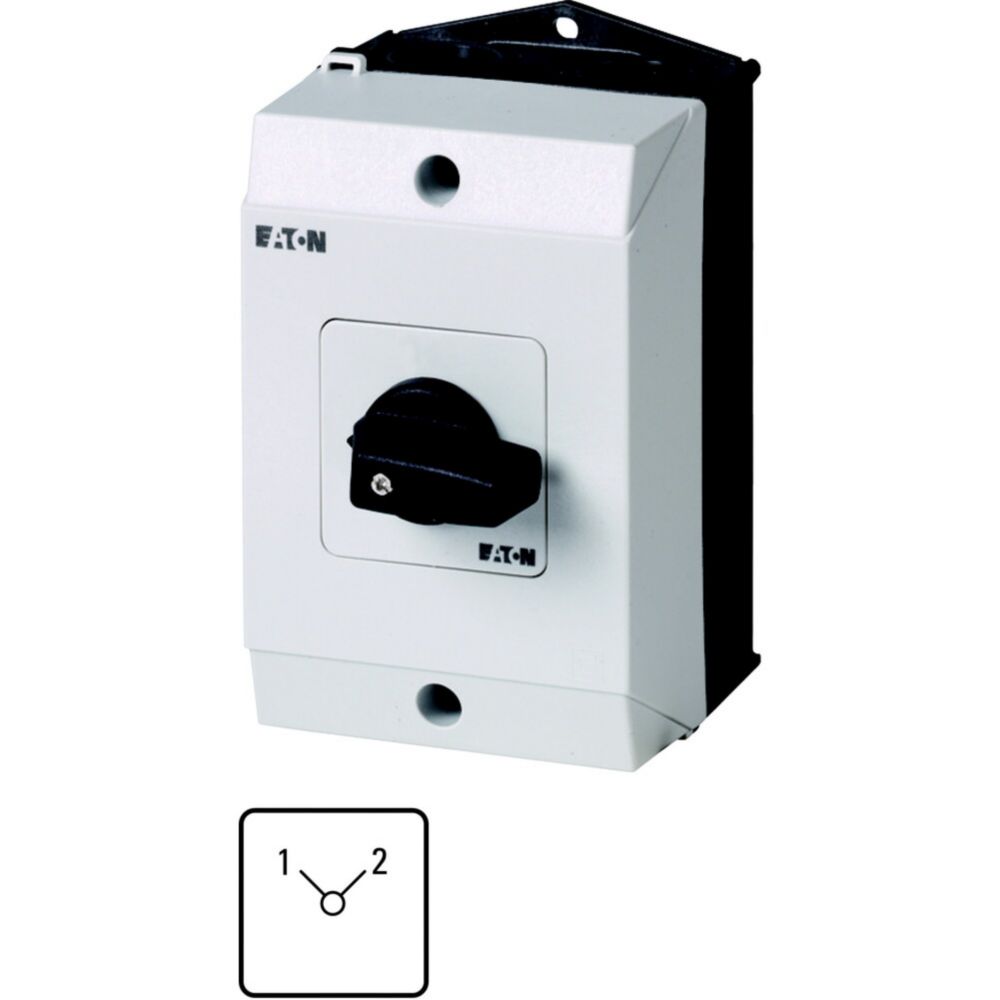

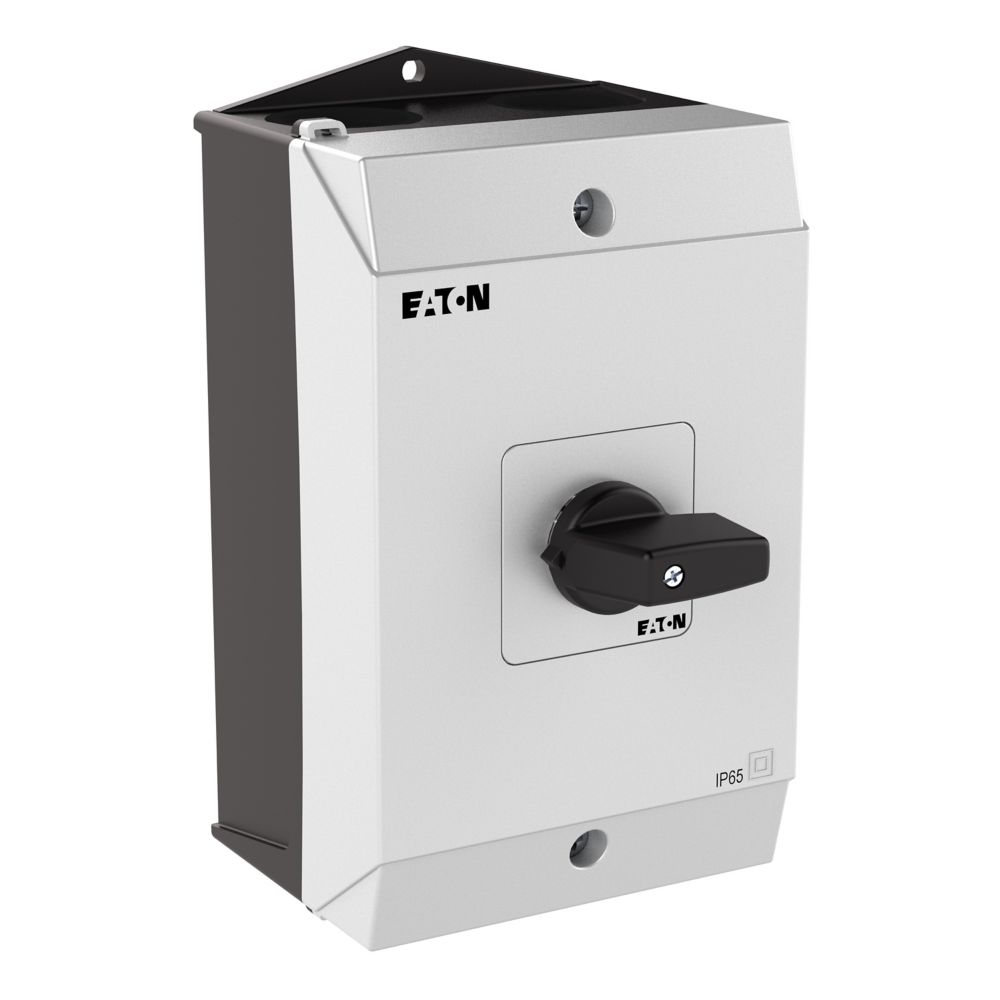

Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 2, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Specificatii
| Model/type | |
| Model | Reverser |
| With zero (off) position | No |
| With retraction in 0-position | No |
| Complete device in housing | Yes |
| Type of control element | Short rotary handle |
| Electrical | |
| Number of poles | 1 |
| Rated permanent current Iu | 32 |
| Rated operation current Ie at AC-3, 400 V | 23.7 |
| Rated operation power at AC-3, 400 V | 12 |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA), front side | 12 |
| Connection | |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Mounting/installation | |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | Yes |
| Suitable for intermediate mounting | No |
| Application | |
| Suitable for distribution board installation | No |
| Material | |
| Housing material | Plastic |
| Package 1 | |
| volume | 0,002268 |
| weight | 0,42 |
| length | 0,18 |
| width | 0,105 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082071714 |
| Dimensions of product | |
| Volume | 0,001937 |
| Weight | 0,389 |
| Length | 0,181 |
| Width | 0,1 |
| Depth | 0,107 |
