Descriere

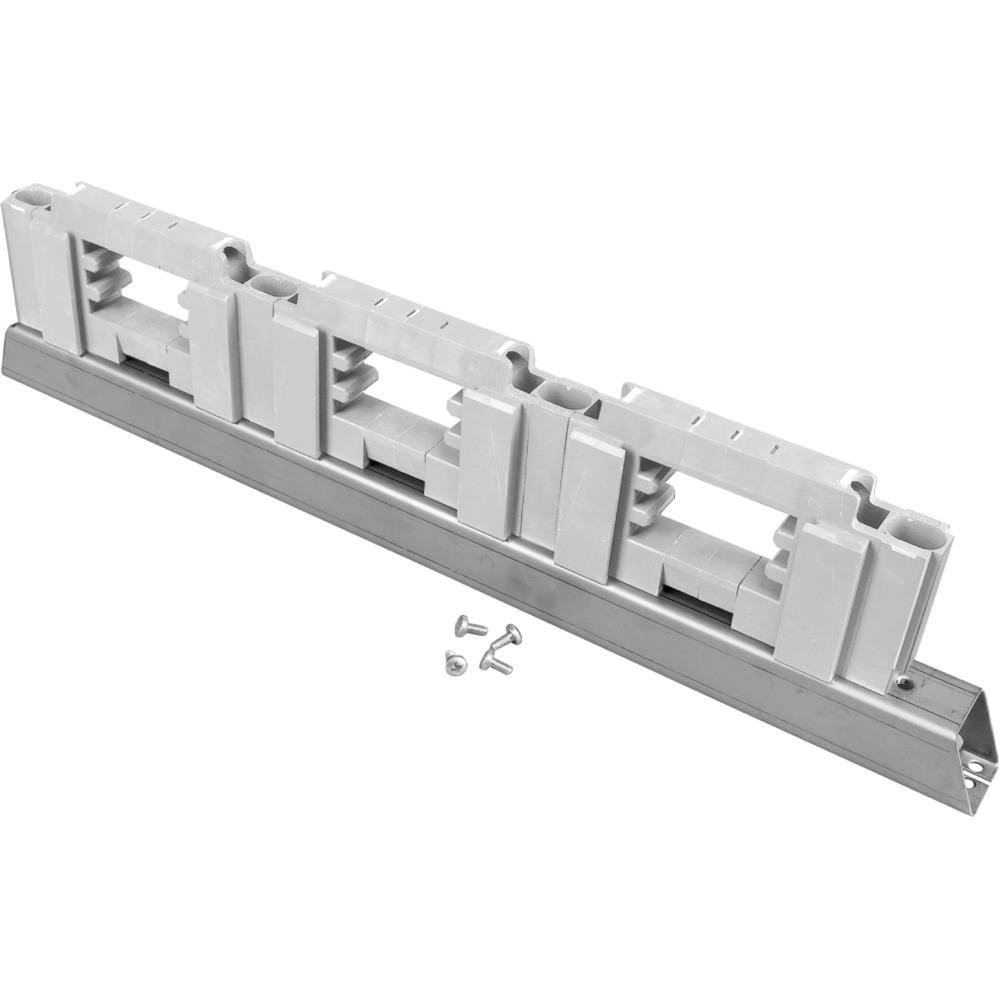

Main busbar support, 3 poles, 2 rows per phase, 2500 A; sheet steel with plastic attachment; installation in a section; including mounting material
Specificatii
| Electrical | |
| Number of poles | 3 |
| Max. rated current | 2500 |
| Measurements | |
| Busbar distance | 180 |
| Package 1 | |
| volume | 0,0099 |
| weight | 3,8 |
| length | 0,9 |
| width | 0,2 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082855154 |
| Dimensions of product | |
| Volume | 0,004756 |
| Weight | 3,76 |
| Length | 0,82 |
| Width | 0,145 |
| Depth | 0,04 |
