Descriere

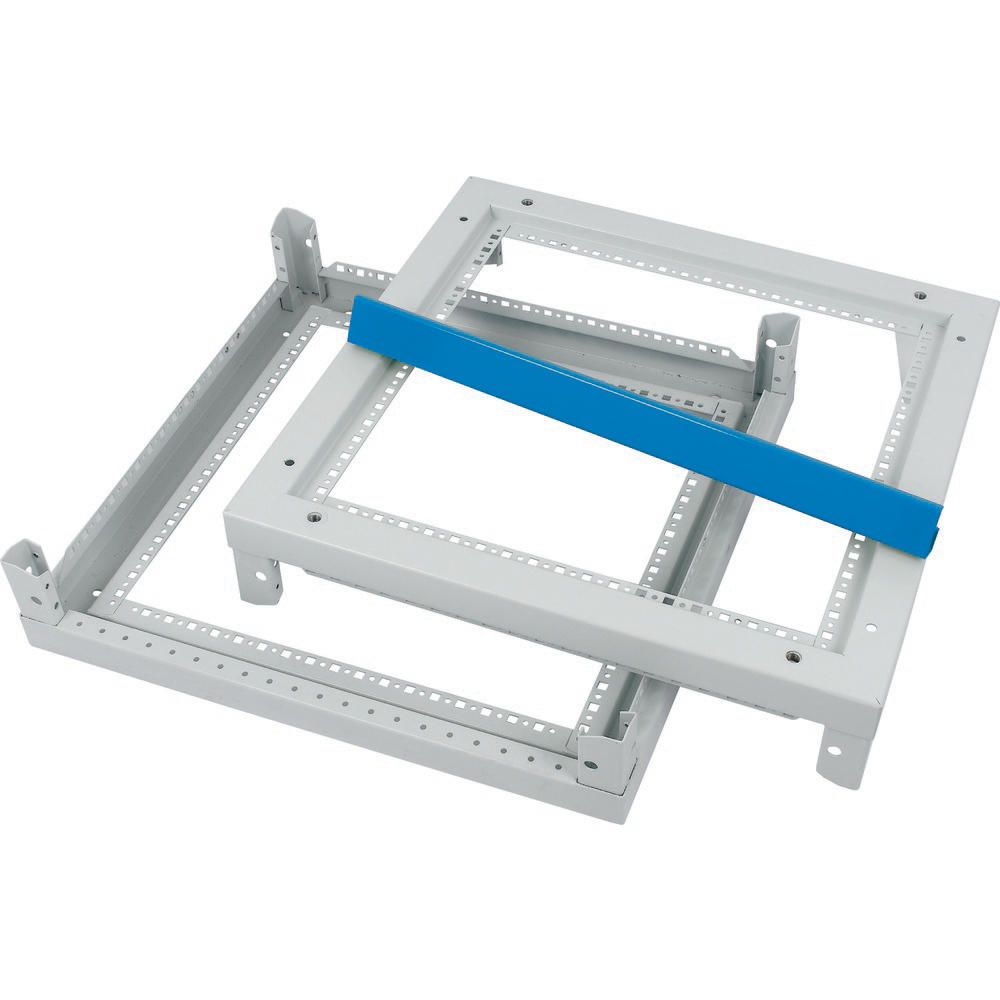

Frame for empty section, upper and lower frame, with RAL 5017 branding strip, steel plate, including mounting material, powder-spray painted in RAL 7035, width 600 mm, depth 400 mm
Specificatii
| Measurements | |
| Width | 385 |
| Height | 250 |
| Depth | 615 |
| Material | |
| Material | Steel |
| Material quality | Other |
| Surface finishing | Powder coating |
| Colour | |
| Colour | Grey |
| RAL-number | 7035 |
| Model/type | |
| Freestanding | No |
| Floor standing wall model | Yes |
| Corner model | No |
| With door | No |
| Number of doors | 0 |
| With glazed door | No |
| With ventilation door | No |
| With rear door | No |
| Number of locks | 0 |
| With cover | No |
| Transparent cover | No |
| Pitched roof | No |
| EMC-version | Yes |
| Mounting/installation | |
| Suitable for wall mounting | No |
| Intermediate mounting | No |
| With mounting plate | No |
| Mounting plate depth-adjustable | Yes |
| Suitable for wall built-in | No |
| Pole fastening | No |
| Suitable for metrical mounting | Yes |
| Options | |
| Couplable | Yes |
| Pre-stamping | No |
| Application | |
| Suitable for outdoor set-up | No |
| Connection | |
| Number of connector holes | 0 |
| Other | |
| Impact strength | IK10 |
| Protection | |
| Degree of protection (IP) | Other |
| Degree of protection (NEMA) | Other |
| Energy efficiency/environmental | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | 0 |
| Performance | |
| Max. permitted load of the enclosure according to IEC 62208 | 5000 |
| Max. permitted load of the door(s) according to IEC 62208 | 1000 |
| Max. permitted load of the mounting plate according to IEC 62208 | 4000 |
| Package 1 | |
| volume | 0,059194 |
| weight | 11,81 |
| length | 0,615 |
| width | 0,385 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082842345 |
| Dimensions of product | |
| Volume | 0,059194 |
| Weight | 11,8 |
| Length | 0,615 |
| Width | 0,385 |
| Depth | 0,25 |
