Descriere

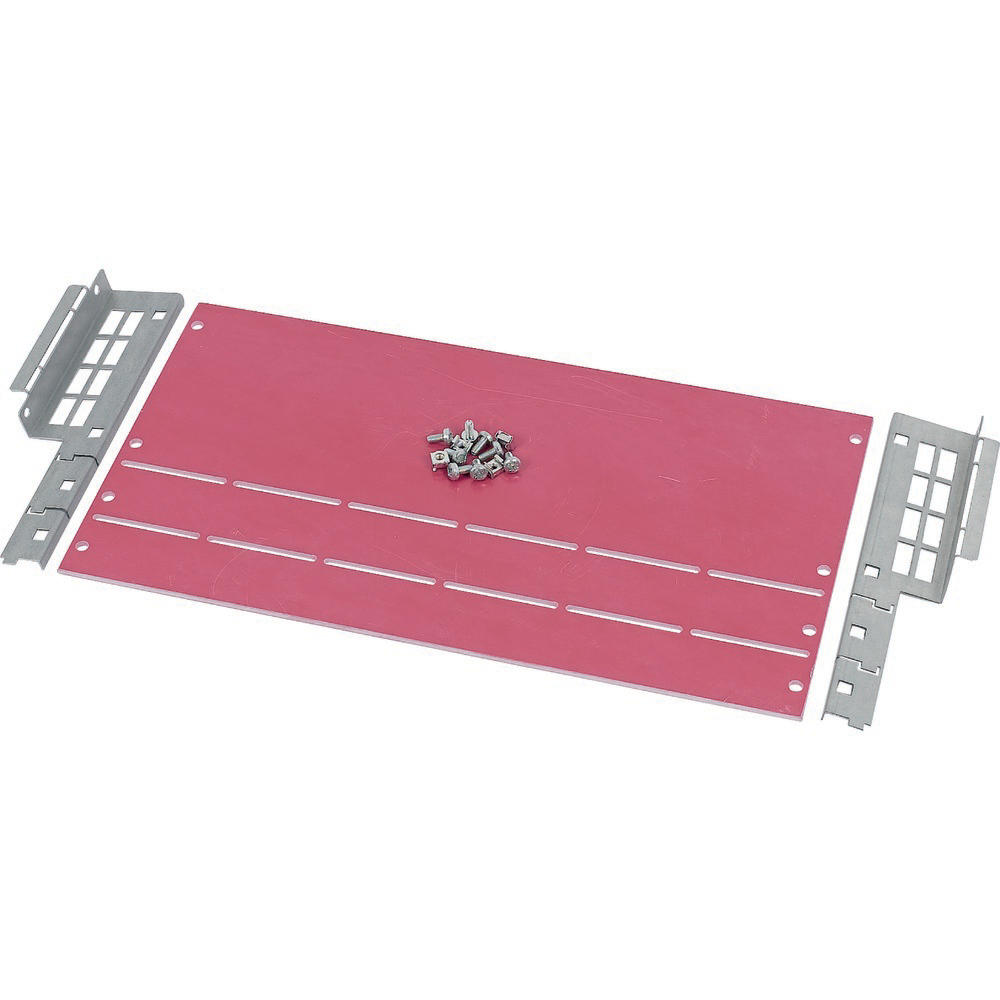

Partition / mounting plate suitable for XP panels with 1/3 pitch, with a depth of 400mm, width of 800mm, material thickness 1,5mm. The mounting plate has pre-cutouts on the right side for a cutout, which can be used as an access for the main busbar transport separation. The cut-out part is turned through 180 ° and is screwed back onto the mounting plate to close the hole. Incl. 4 pcs. Mounting bracket and screw material.
Specificatii
| Measurements | |
| Modular spacing | 12.5 |
| Suitable for enclosure building width | 800 |
| Suitable for enclosure building depth | 800 |
| Width | 370 |
| Height | 50 |
| Number of height units | 0 |
| Material | |
| Material | Steel |
| Surface finishing | Other |
| Colour | |
| Colour | Other |
| RAL-number | 0 |
| Model/type | |
| With cable entry | No |
| With lock | No |
| Construction type | Assembly kit |
| Options | |
| For internal separation form 2a | Yes |
| For internal separation form 2b | Yes |
| For internal separation form 3a | Yes |
| For internal separation form 3b | Yes |
| For internal separation form 4a | Yes |
| For internal separation form 4b | Yes |
| Package 1 | |
| volume | 0,00875 |
| weight | 3,6 |
| length | 0,7 |
| width | 0,5 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082841041 |
| Dimensions of product | |
| Volume | 0,013228 |
| Weight | 3,2 |
| Length | 0,715 |
| Width | 0,37 |
| Depth | 0,05 |
