Descriere

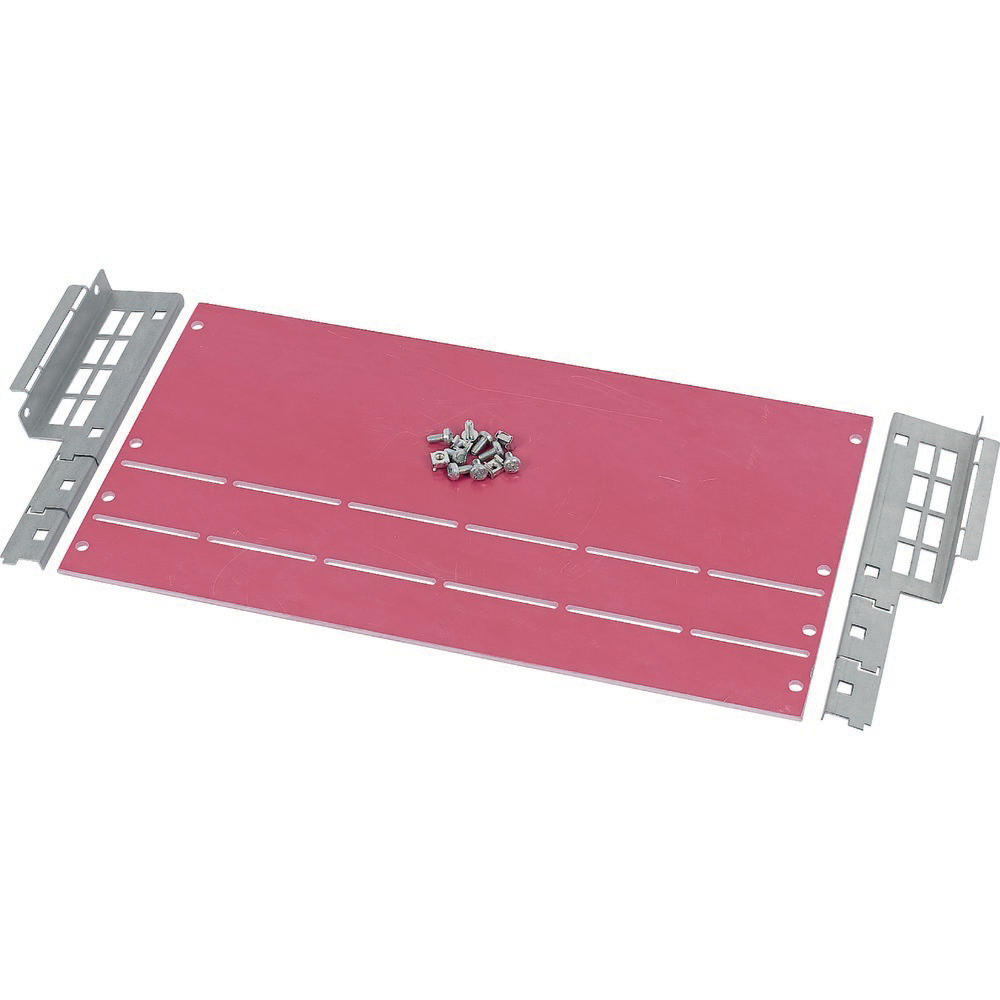

Eaton xEnergy Main LV systems LV switchgear. Partition, IZM connection-/busbar back area, horizontal, WxD=800x400mm
Specificatii
| Measurements | |
| Modular spacing | 12.5 |
| Suitable for enclosure building width | 800 |
| Suitable for enclosure building depth | 400 |
| Width | 150 |
| Height | 50 |
| Number of height units | 0 |
| Material | |
| Material | Plastic |
| Surface finishing | Other |
| Colour | |
| Colour | Red |
| RAL-number | 0 |
| Model/type | |
| With cable entry | No |
| With lock | No |
| Construction type | Individual part |
| Options | |
| For internal separation form 2a | Yes |
| For internal separation form 2b | Yes |
| For internal separation form 3a | Yes |
| For internal separation form 3b | Yes |
| For internal separation form 4a | Yes |
| For internal separation form 4b | Yes |
| Package 1 | |
| volume | 0,00525 |
| weight | 3,27 |
| length | 0,7 |
| width | 0,15 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081299577 |
| Dimensions of product | |
| Volume | 0,00525 |
| Weight | 2,7 |
| Length | 0,7 |
| Width | 0,15 |
| Depth | 0,05 |
