Descriere

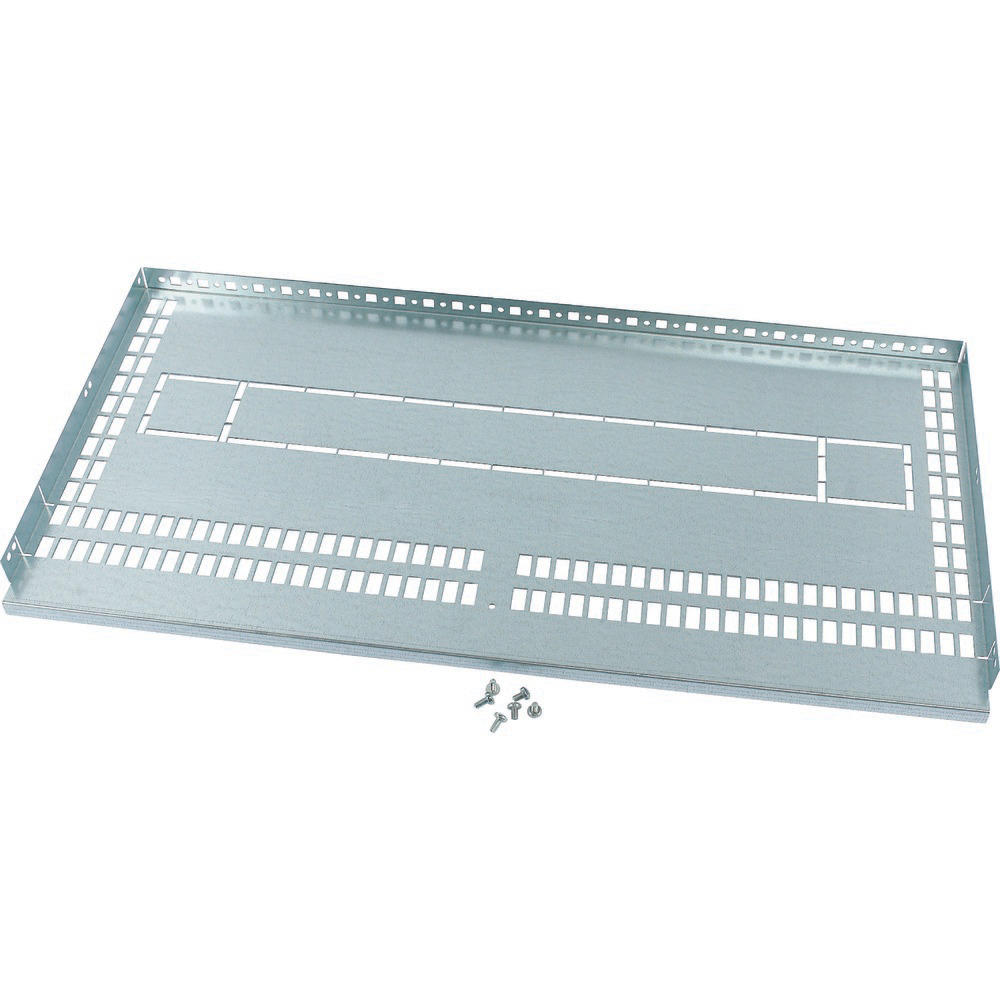

partition plate; connection space to dropper bar area and component mounting area; shape 2/4; main busbar at the rear; sheet steel; depth 400 mm, width 800mm
Specificatii
| Measurements | |
| Modular spacing | 12.5 |
| Suitable for enclosure building width | 800 |
| Suitable for enclosure building depth | 400 |
| Width | 370 |
| Height | 30 |
| Number of height units | 0 |
| Material | |
| Material | Steel |
| Surface finishing | Galvanised |
| Colour | |
| Colour | Stainless steel |
| RAL-number | 0 |
| Model/type | |
| With cable entry | No |
| With lock | No |
| Construction type | Assembly kit |
| Options | |
| For internal separation form 2a | No |
| For internal separation form 2b | No |
| For internal separation form 3a | Yes |
| For internal separation form 3b | Yes |
| For internal separation form 4a | Yes |
| For internal separation form 4b | Yes |
| Package 1 | |
| volume | 0,007776 |
| weight | 2,7 |
| length | 0,72 |
| width | 0,36 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082841652 |
| Dimensions of product | |
| Volume | 0,008048 |
| Weight | 2,2 |
| Length | 0,725 |
| Width | 0,37 |
| Depth | 0,03 |
