Descriere

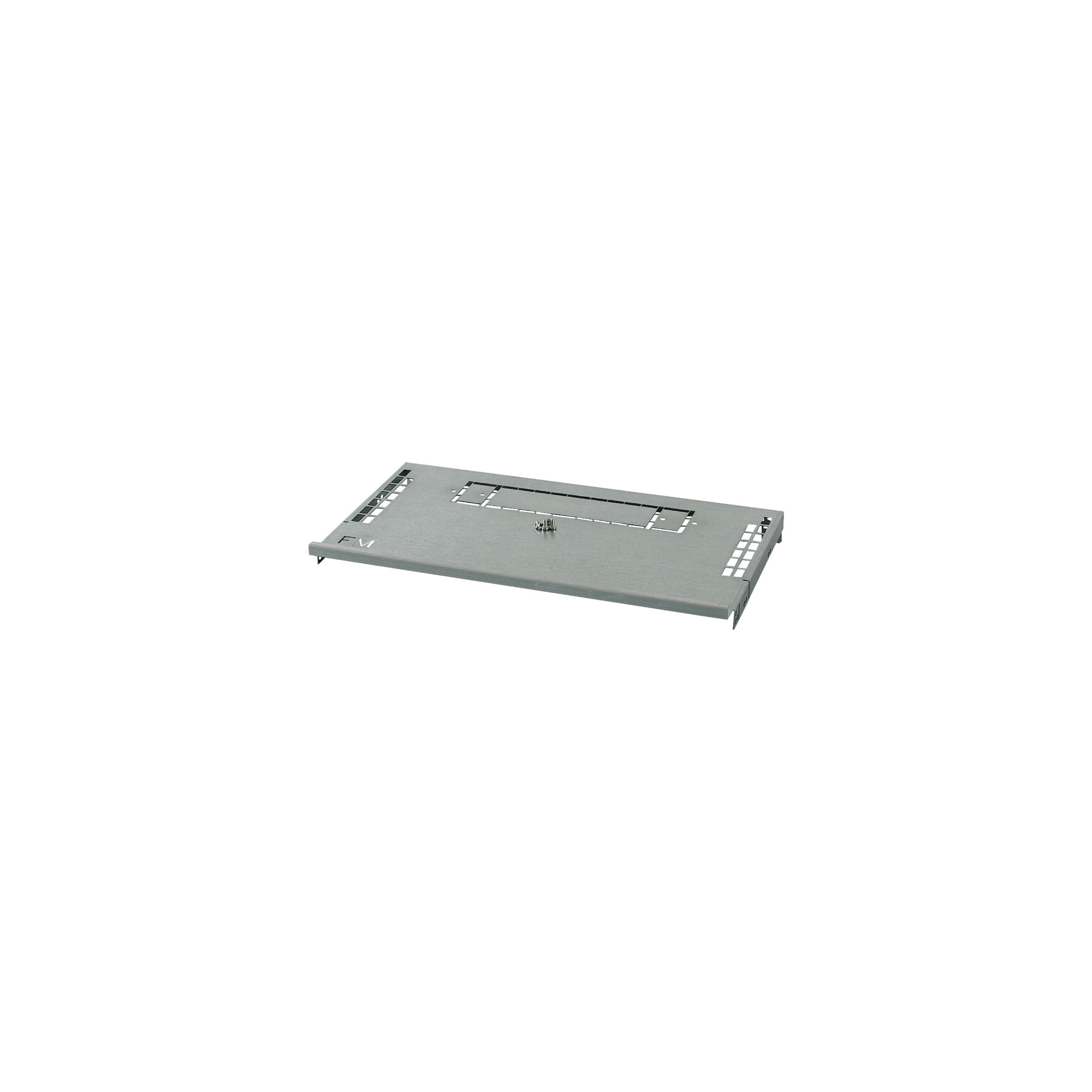

Partition mounting plate; feeder section; NZM4; for devices and main busbar; fixed mounting with remote operator; galvanized sheet steel; with mounting material; section width 600 mm
Specificatii
| Measurements | |
| Modular spacing | 12.5 |
| Suitable for enclosure building width | 600 |
| Suitable for enclosure building depth | 0 |
| Width | 510 |
| Height | 60.5 |
| Number of height units | 0 |
| Material | |
| Material | Steel |
| Surface finishing | Galvanised |
| Colour | |
| Colour | Stainless steel |
| RAL-number | 0 |
| Model/type | |
| With cable entry | Yes |
| With lock | Yes |
| Construction type | Individual part |
| Options | |
| For internal separation form 2a | No |
| For internal separation form 2b | No |
| For internal separation form 3a | No |
| For internal separation form 3b | No |
| For internal separation form 4a | No |
| For internal separation form 4b | Yes |
| Package 1 | |
| volume | 0,008053 |
| weight | 1,47 |
| length | 0,261 |
| width | 0,51 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081739356 |
| Dimensions of product | |
| Volume | 0,008053 |
| Weight | 1,4 |
| Length | 0,261 |
| Width | 0,51 |
| Depth | 0,0605 |
