Descriere

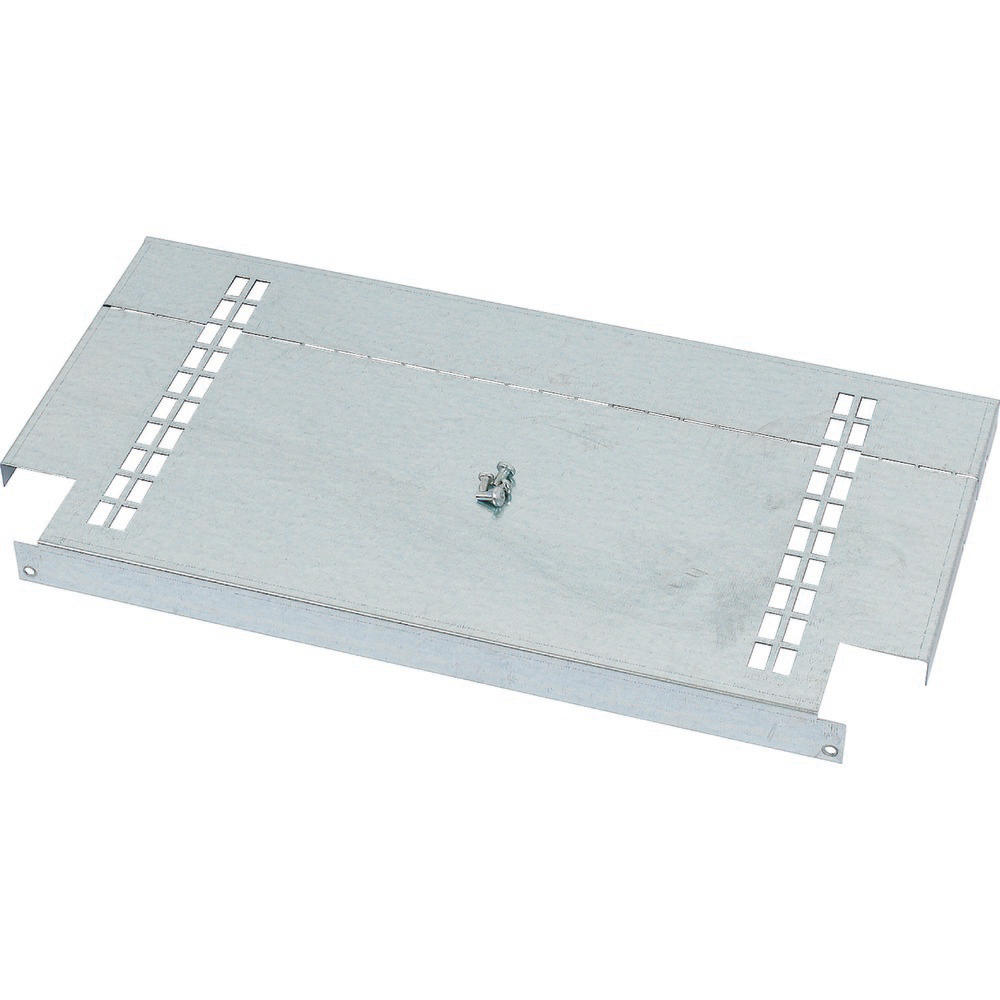

Eaton xEnergy Main LV systems LV switchgear. Partition, circuit breaker connection-/busbar back area, form 2b, WxD=425x800mm
Specificatii
| Measurements | |
| Modular spacing | 12.5 |
| Suitable for enclosure building width | 425 |
| Suitable for enclosure building depth | 800 |
| Width | 360 |
| Height | 30 |
| Number of height units | 0 |
| Material | |
| Material | Steel |
| Surface finishing | Galvanised |
| Colour | |
| Colour | Stainless steel |
| RAL-number | 0 |
| Model/type | |
| With cable entry | No |
| With lock | No |
| Construction type | Assembly kit |
| Options | |
| For internal separation form 2a | Yes |
| For internal separation form 2b | Yes |
| For internal separation form 3a | No |
| For internal separation form 3b | No |
| For internal separation form 4a | No |
| For internal separation form 4b | No |
| Package 1 | |
| volume | 0,00378 |
| weight | 1,5 |
| length | 0,35 |
| width | 0,36 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082855239 |
| Dimensions of product | |
| Volume | 0,00378 |
| Weight | 1,5 |
| Length | 0,35 |
| Width | 0,36 |
| Depth | 0,03 |
