Descriere

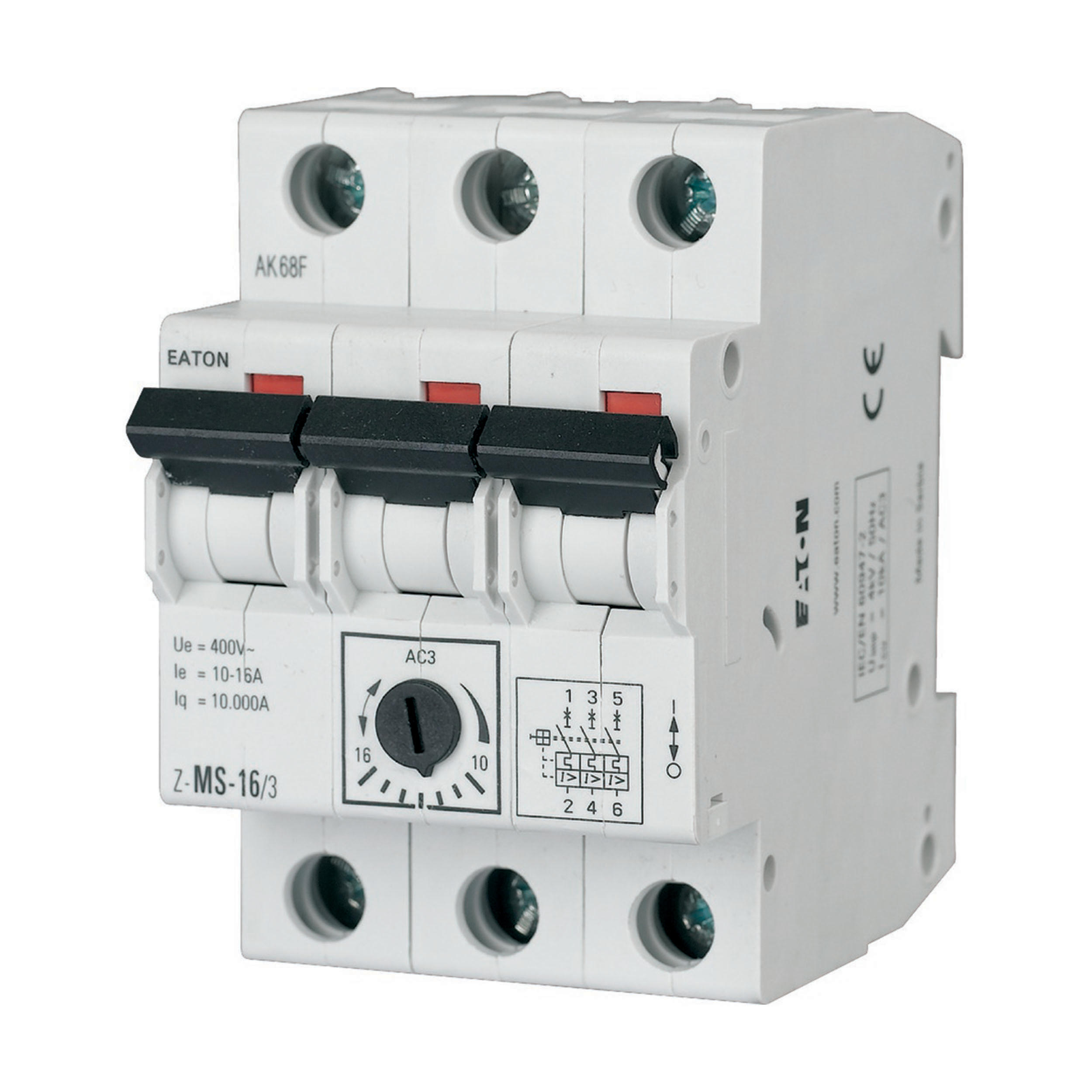

Motor-protective circuit-breaker with thermal overload release and magnetic short-circuit release, for switching and protecting three-phase motors with outputs of up to 15 kW (380/400 V) or other loads with currents of up to 40 A, can also be used as a main switch, isolating characteristics to IEC/EN 60947, contact position display red/green
Specificatii
| Electrical | |
| Overload release current setting | 16 |
| Adjustment range undelayed short-circuit release | 250 |
| Rated operating voltage | 400 |
| Rated permanent current Iu | 20 |
| Rated operation power at AC-3, 230 V | 0 |
| Rated operation power at AC-3, 400 V | 11 |
| Power loss | - |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 10 |
| Model/type | |
| With thermal overload protection | Yes |
| Type of control element | Rocker lever |
| With integrated auxiliary switch | No |
| Options | |
| Phase failure sensitive | No |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Complete device in housing |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Protection | |
| Degree of protection (IP) | IP20 |
| Measurements | |
| Height | 75 |
| Width | 54 |
| Depth | 80 |
| Package 1 | |
| volume | 0,000355 |
| weight | 0,376 |
| length | 0,055 |
| width | 0,086 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082484132 |
| Package 2 | |
| volume | 0,015939 |
| weight | 15,235 |
| length | 0,18 |
| width | 0,385 |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 9007912227953 |
| Dimensions of product | |
| Volume | 0,000324 |
| Weight | 0,366 |
| Length | 0,08 |
| Width | 0,054 |
| Depth | 0,075 |
