Descriere
System Pura-Dispozitive modulare Alb lucios - Gama System Pura combină modularitatea, designul și sustenabilitatea pentru a oferi soluții versatile și complete. Alb lucios: sobru, modern și ușor de integrat în orice mediu, System Pura răspunde oricărei cerințe estetice și funcționale. Include dispozitive pentru comandă, protecție, conectare și confort, ideale pentru medii rezidențiale și aplicații speciale.
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Nominal voltage | 250 |
| Rated current | 10 |
| Number of poles | 1 |
| Mounting/installation | |
| Mounting method | Module frame |
| Type of fastening | Engage (snap) |
| Model/type | |
| Assembly arrangement | Modular device for domestic switching devices |

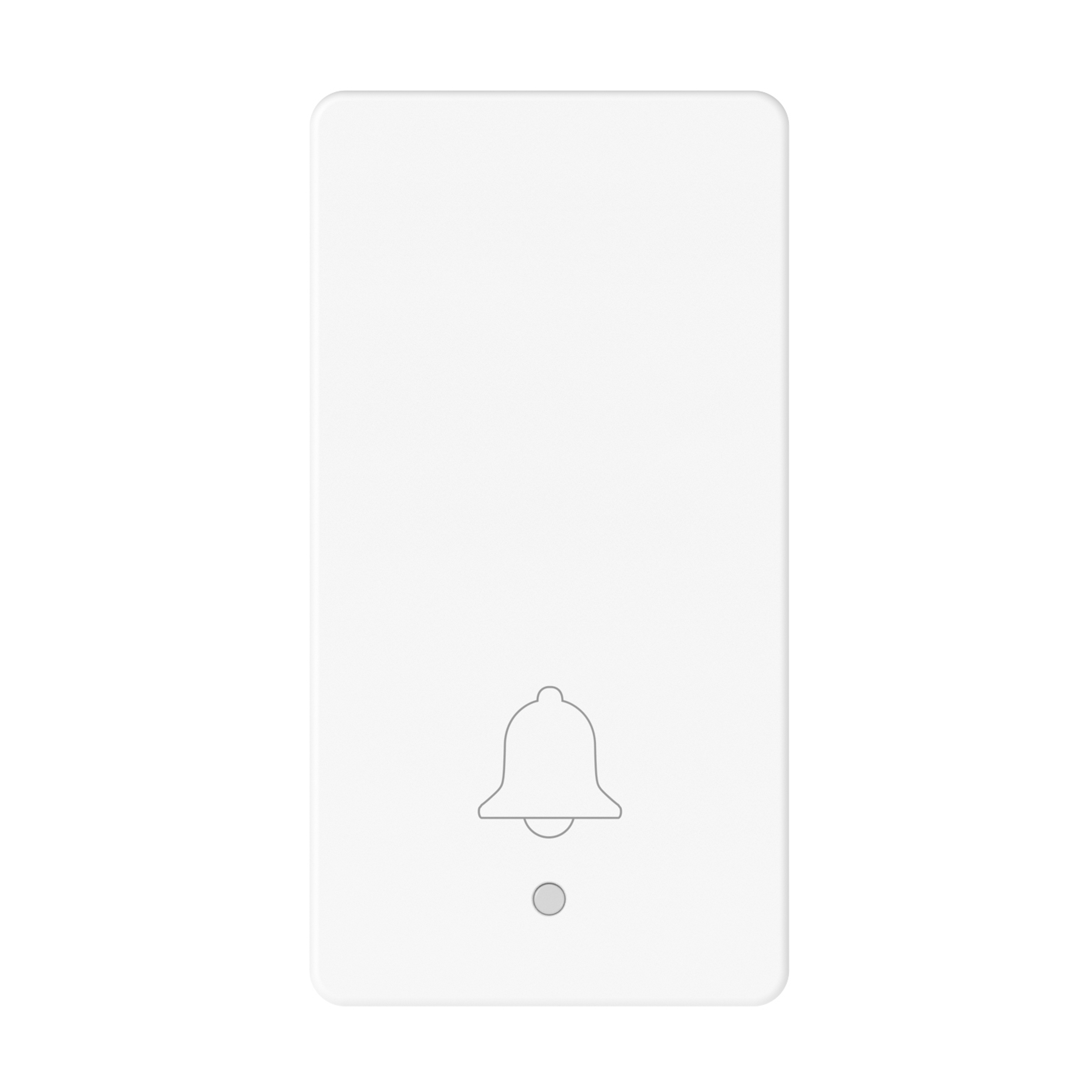

| Model | Single push button |
| Imprint | Symbol "bell" |
| With signal lamp | No |
| Number of rockers | 1 |
| With lighting | No |
| With light source | No |
| Number of modules (module system) | 1 |
| Contactless type | No |
| Setting/control | |
| Method of operation | Push button |
| Colour | |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Material | |
| Halogen free | Yes |
| Surface protection | Untreated |
| Material quality | Thermoplastic |
| Material | Plastic |
| Surface finishing | Glossy |
| Connection | |
| Connection type | Screwed terminal |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of revolving contacts | 0 |
| Options | |
| Label space/information surface | Yes |
| IFTTT support available | No |
| Anti-bacterial treatment | No |
| Communication | |
| Monitoring contact | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Operating principle | Electromechanical |
| Impact strength | - |
| Protection | |
| Suitable for degree of protection (IP) | IP41 |
| Measurements | |
| Device width | 22.9 |
| Device height | 45.6 |
| Device depth | 35.25 |
| Min. depth of built-in installation box | 35.25 |
| Package 1 | |
| volume | 0,008 |
| weight | 2,025 |
| length | 0,29 |
| width | 0,17 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 8034035637087 |
| Package 2 | |
| volume | 0,001 |
| weight | 0,169 |
| length | 0,228 |
| width | 0,041 |
| qmax | 5 |
| qmin | 5 |
| um | PA |
| gtin | 8034035637063 |
| Package 3 | |
| volume | 0 |
| weight | 0,034 |
| length | 0,046 |
| width | 0,041 |
| qmax | 1 |
| qmin | 1 |
| um | SET |
| gtin | 8034035179068 |
| Package 4 | |
| volume | 0,778 |
| weight | 117,996 |
| length | 1,2 |
| width | 0,8 |
| qmax | 4,32 |
| qmin | 4,32 |
| um | PF |
| Package 5 | |
| volume | 0,004 |
| weight | 1,013 |
| length | 0,245 |
| width | 0,165 |
| qmax | 30 |
| qmin | 30 |
| um | BX |
| gtin | 8034035637070 |
| Dimensions of product | |
| Weight | 0,027314 |
