Descriere
System Pura-Dispozitive modulare Alb lucios - Gama System Pura combină modularitatea, designul și sustenabilitatea pentru a oferi soluții versatile și complete. Alb lucios: sobru, modern și ușor de integrat în orice mediu, System Pura răspunde oricărei cerințe estetice și funcționale. Include dispozitive pentru comandă, protecție, conectare și confort, ideale pentru medii rezidențiale și aplicații speciale.
Documente
Declaratie de conformitate
Specificatii
| Electrical | |
| Nominal current | 16 |
| Nominal voltage | 250 |
| Number of phases | 1 |
| Overvoltage protection | No |
| Special power supply | Additional safety power supply (red) |
| Rated fault current | - |
| Max. current rating of USB power supply | - |
| Mounting/installation | |
| Mounting method | Module frame |
| Insulated mounting | Yes |
| Type of fastening | Snap mounting (engagement) |
| Mounting direction | - |
| Model/type | |
| Assembly arrangement | - |

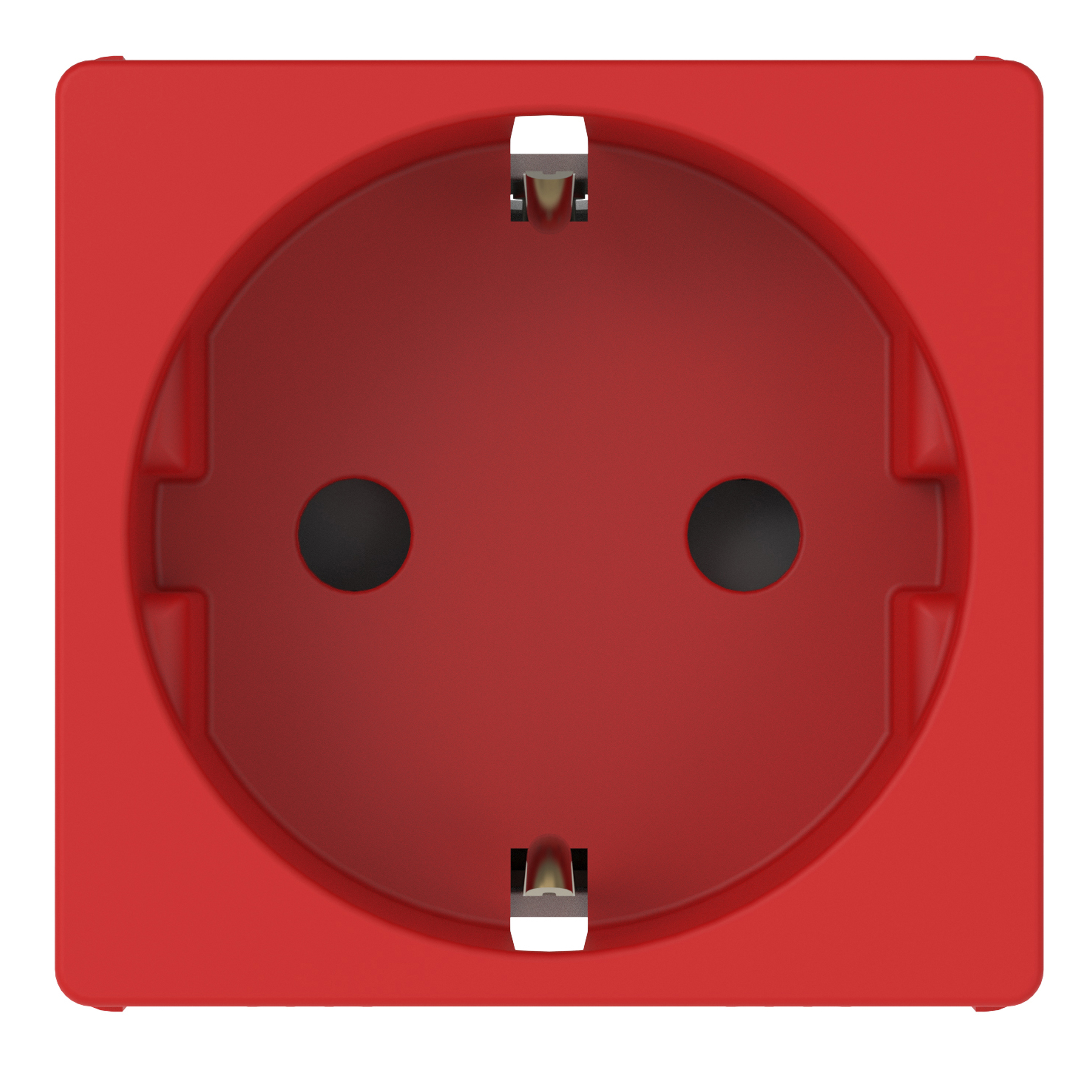

| Model | Socket outlet with protective contact CEE 7/3 (type F) |
| With hinged lid | No |
| With signal lamp | No |
| Number of socket outlets | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| With miniature fuse | No |
| With loop through function | No |
| Number of socket outlets switchable | 0 |
| With function lighting | No |
| With orientation lighting | No |
| Number of modules (module system) | 2 |
| With built-in bluetooth speaker | No |
| Number of loop throughs | 0 |
| Colour | |
| Colour | Red |
| RAL-number (similar) | 3000 |
| Transparent | No |
| Metallic colour | No |
| Colour of switch operator | - |
| Material | |
| Halogen free | Yes |
| Surface protection | Untreated |
| Material quality | Thermoplastic |
| Material | Plastic |
| Surface finishing | Glossy |
| Options | |
| Lockable | No |
| Label space/information surface | No |
| Eject-mechanism | No |
| Rotated central insert | No |
| Concurrently switching neutral conductor | Yes |
| IFTTT support available | No |
| Socket outlets phase-separated | - |
| Anti-bacterial treatment | No |
| Connection | |
| Connection type | Screwed terminal |
| Number of ports USB-A | 0 |
| Number of active contacts (round) | 2 |
| Number of active contacts (flat) | 0 |
| Number of ports USB-C | 0 |
| Number of active contacts (square) | 0 |
| Other | |
| Frequency | 50 |
| Imprint/indication | None |
| Impact strength | - |
| Protective contact | Round |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP41 |
| Inflammability class of insulation material according to UL 94 | - |
| Measurements | |
| Device width | 46.1 |
| Device height | 45.6 |
| Device depth | - |
| Min. depth of built-in installation box | - |
| Device diameter | - |
| Communication | |
| With Wi-Fi signal repeater | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | No |
| Package 1 | |
| volume | 0,024 |
| weight | 6,83 |
| length | 0,342 |
| width | 0,265 |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 8034035638671 |
| Package 2 | |
| volume | 0,001 |
| weight | 0,285 |
| length | 0 |
| width | 0 |
| qmax | 5 |
| qmin | 5 |
| um | PA |
| gtin | 8034035638657 |
| Package 3 | |
| volume | 0 |
| weight | 0,057 |
| length | 0 |
| width | 0 |
| qmax | 1 |
| qmin | 1 |
| um | SET |
| gtin | 8034035179938 |
| Package 4 | |
| volume | 0,643 |
| weight | 136,601 |
| length | 1,2 |
| width | 0,8 |
| qmax | 2,4 |
| qmin | 2,4 |
| um | PF |
| Package 5 | |
| volume | 0,006 |
| weight | 1,708 |
| length | 0,245 |
| width | 0,165 |
| qmax | 30 |
| qmin | 30 |
| um | BX |
| gtin | 8034035638664 |
| Dimensions of product | |
| Weight | 0,049332 |
