Descriere

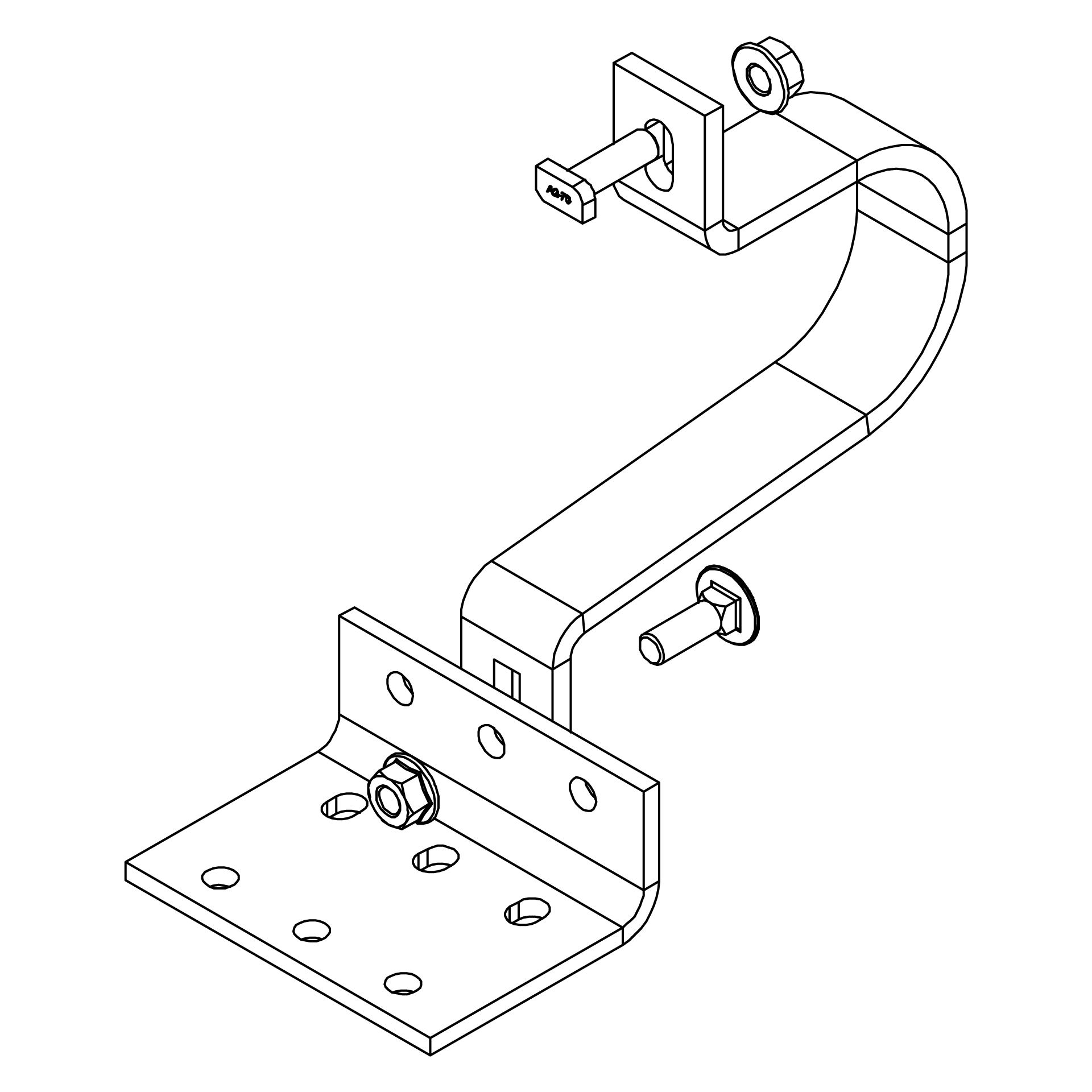

Dual, height-adjustable Roof Fastener to fasten K2 system components to tile roofs. Bracket with slotted hole for mounting and adjusting the height of the SingleRail. For various battens by means height of bracket infinitely adjustable on baseplate to suit. Including T-Bolt and Locking nut for SingleRail assembly. Material: Stainless steel
Documente
Fisa tehnica
Alte surse
Specificatii
| Material | |
| Material | Stainless steel |
| Surface protection | Other |
| Mounting/installation | |
| Suitable for pitched roof mounting | Yes |
| Suitable for flat roof mounting | No |
| Suitable for in-roof mounting | No |
| Suitable for facade mounting | No |
| Suitable for open terrain mounting | No |
| Suitable for mounting as facade element | No |
| Suitable for mounting as overhang/sunshade | No |
| With mounting material | Yes |
| With mounting plate | Yes |
| Setting/control | |
| Adjustable | Yes |
| Options | |
| Roof perforation necessary | Yes |
| Other | |
| Bracing | Screwing |
| Angle of inclination | - |
| Orientation | - |
| Application | |
| Suitable for roofing material | Pantile |
| Measurements | |
| Width mounting plate | 100 |
| Length of mounting plate | 75 |
| Height mounting plate | 6 |
| Hook width | 30 |
| Material thickness hook | 6 |
| Package 1 | |
| weight | 22,641 |
| length | 0,4 |
| width | 0,3 |
| qmax | 25 |
| qmin | 25 |
| um | CT |
| Package 2 | |
| weight | 543,4 |
| length | 1,2 |
| width | 0,8 |
| qmax | 600 |
| qmin | 600 |
| um | PF |
| Dimensions of product | |
| Weight | 0,864 |
| Length | 0,205 |
| Width | 0,100 |
| Depth | 0,172 |
