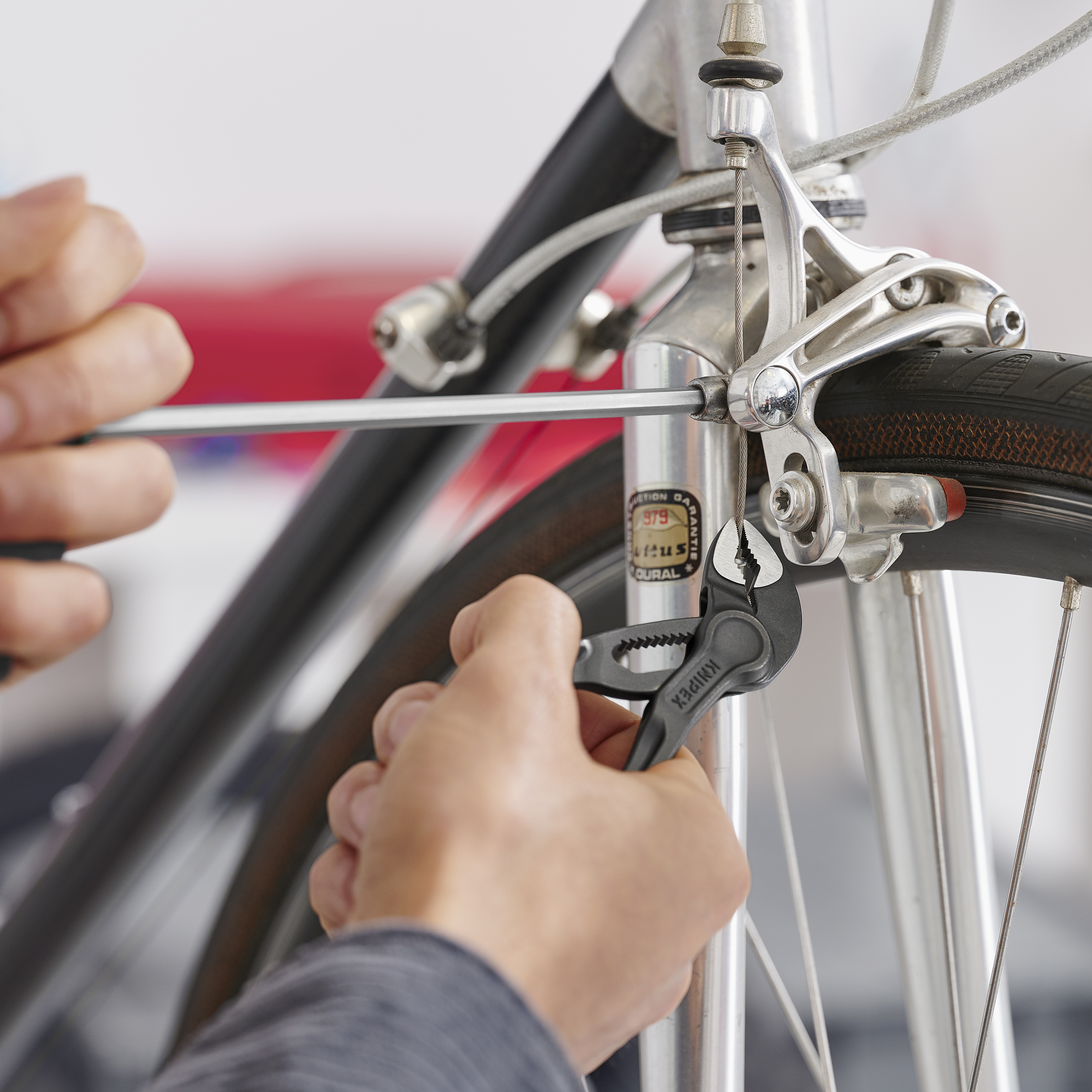

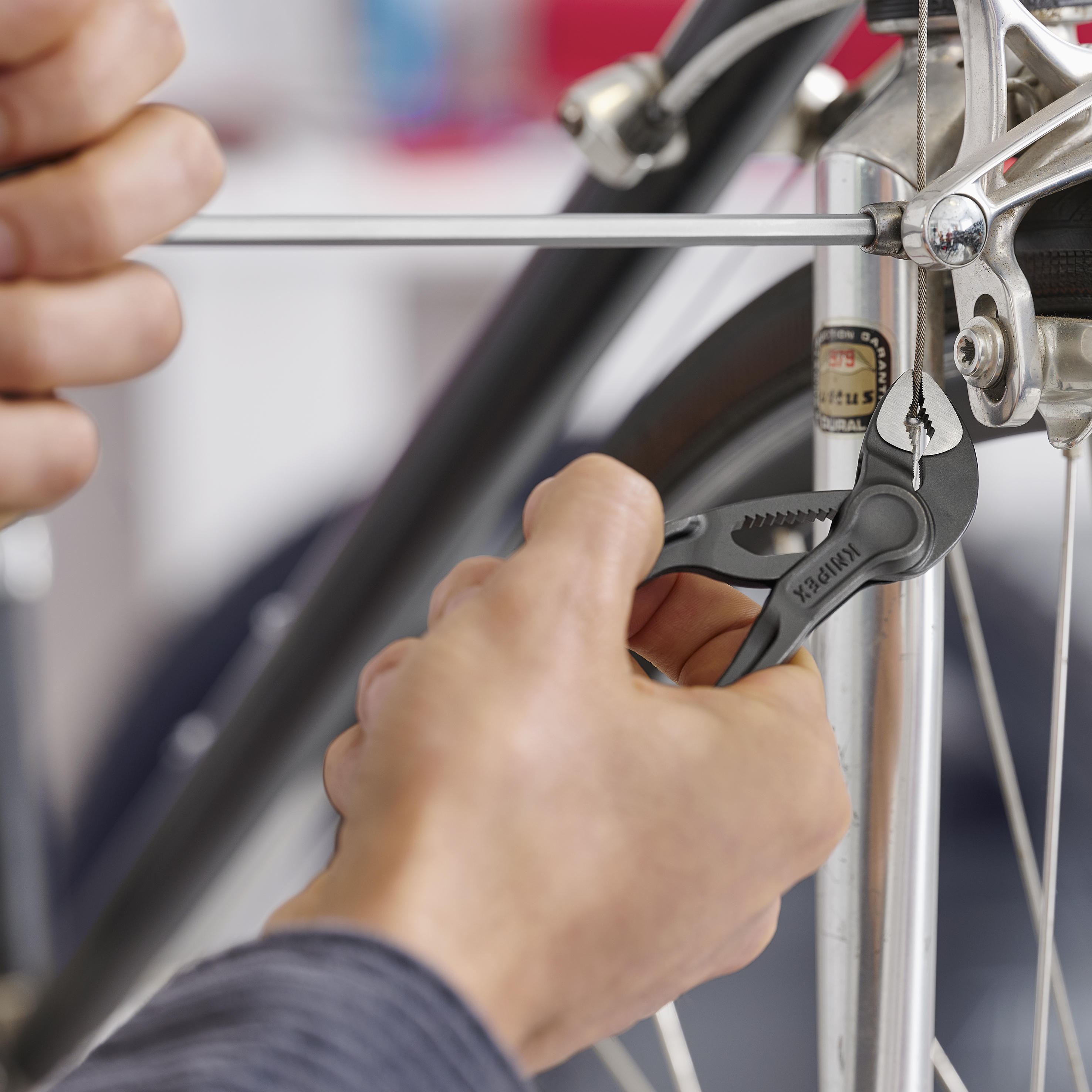

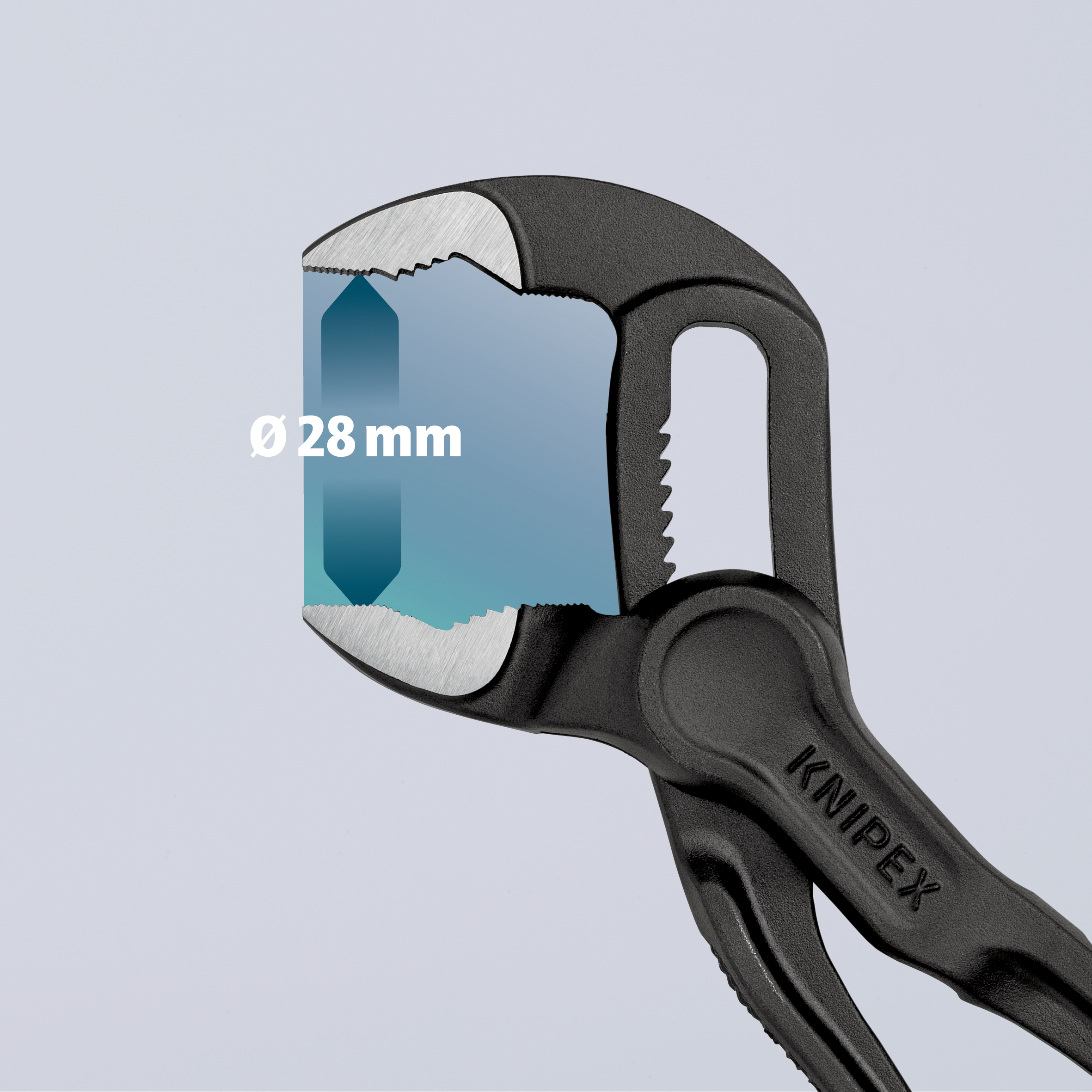

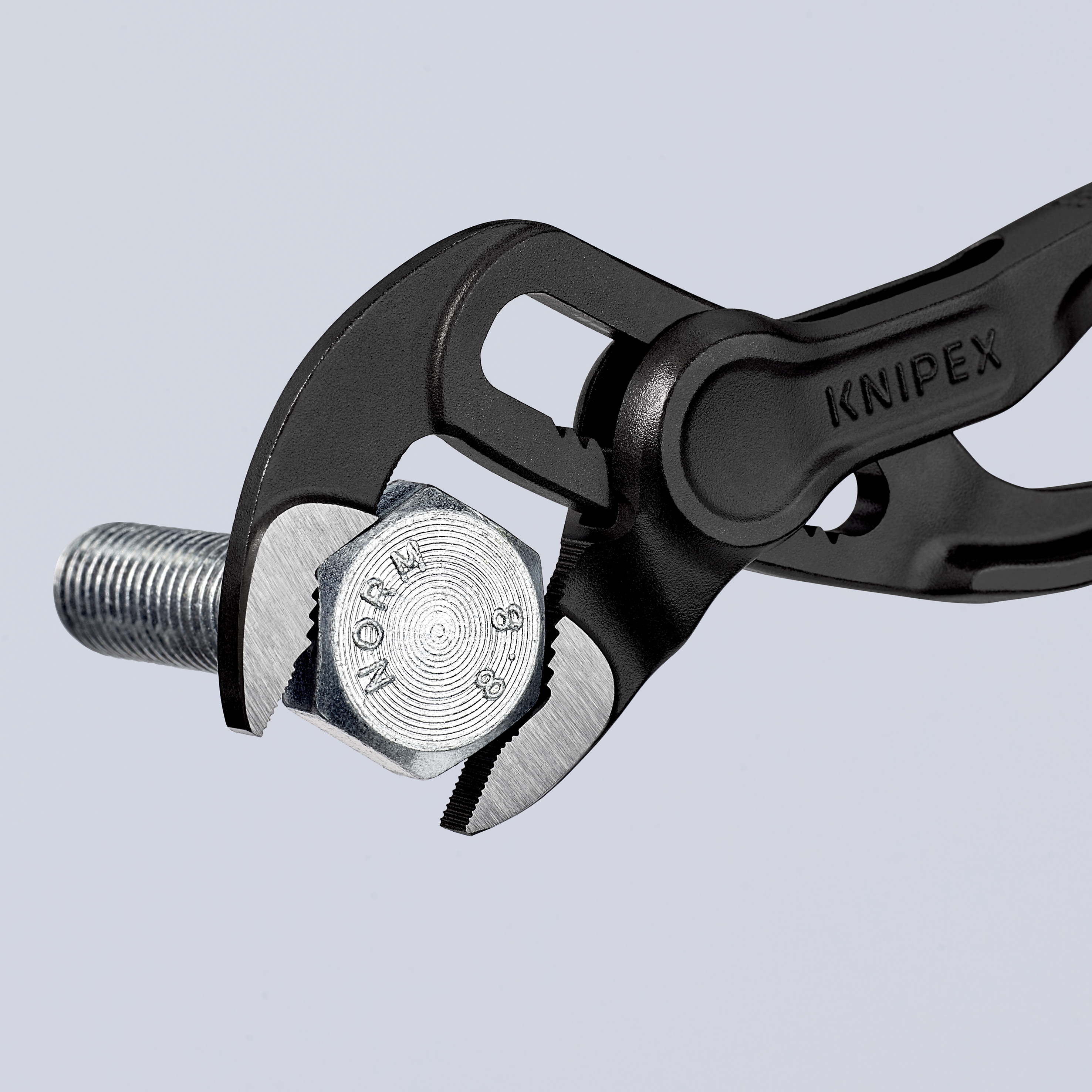

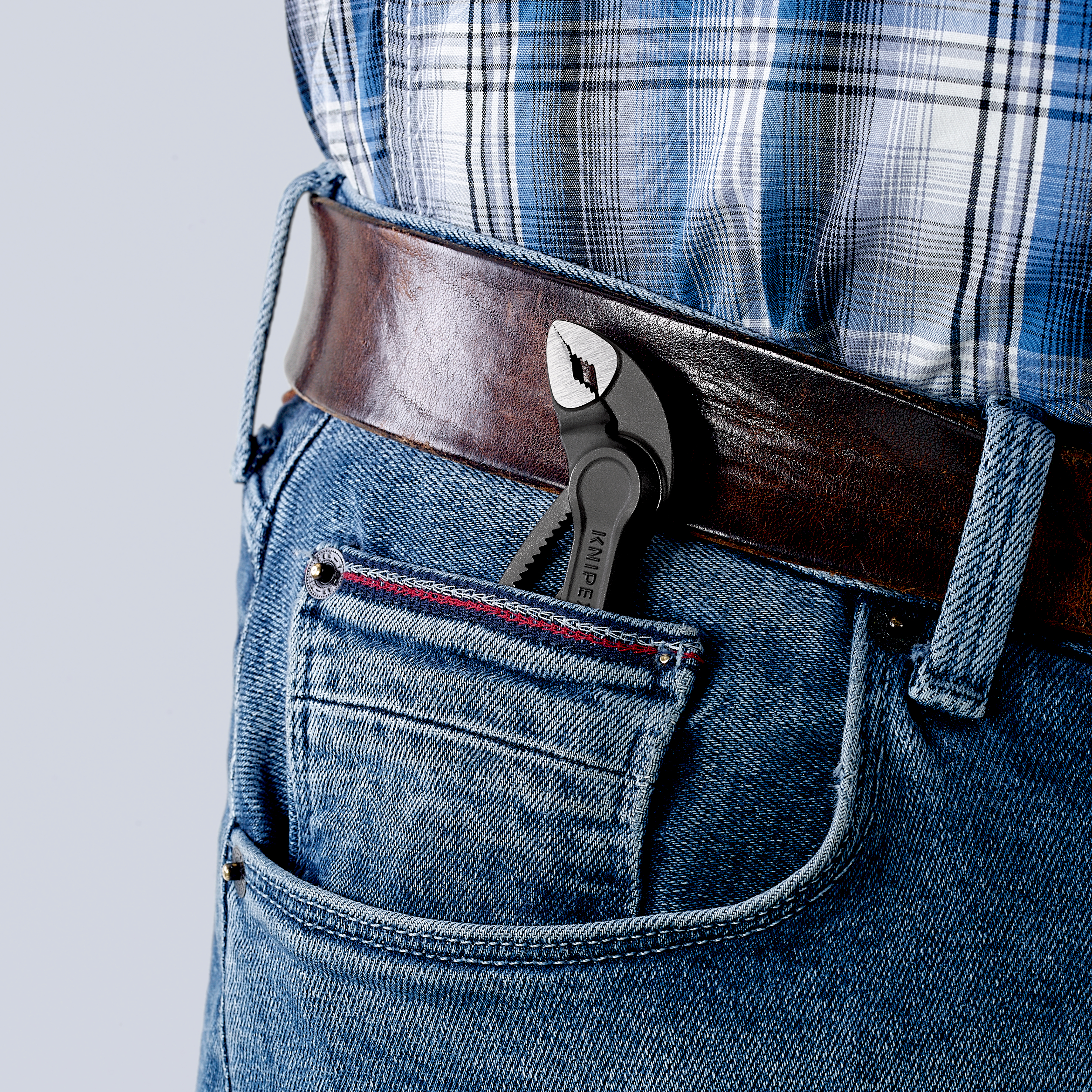

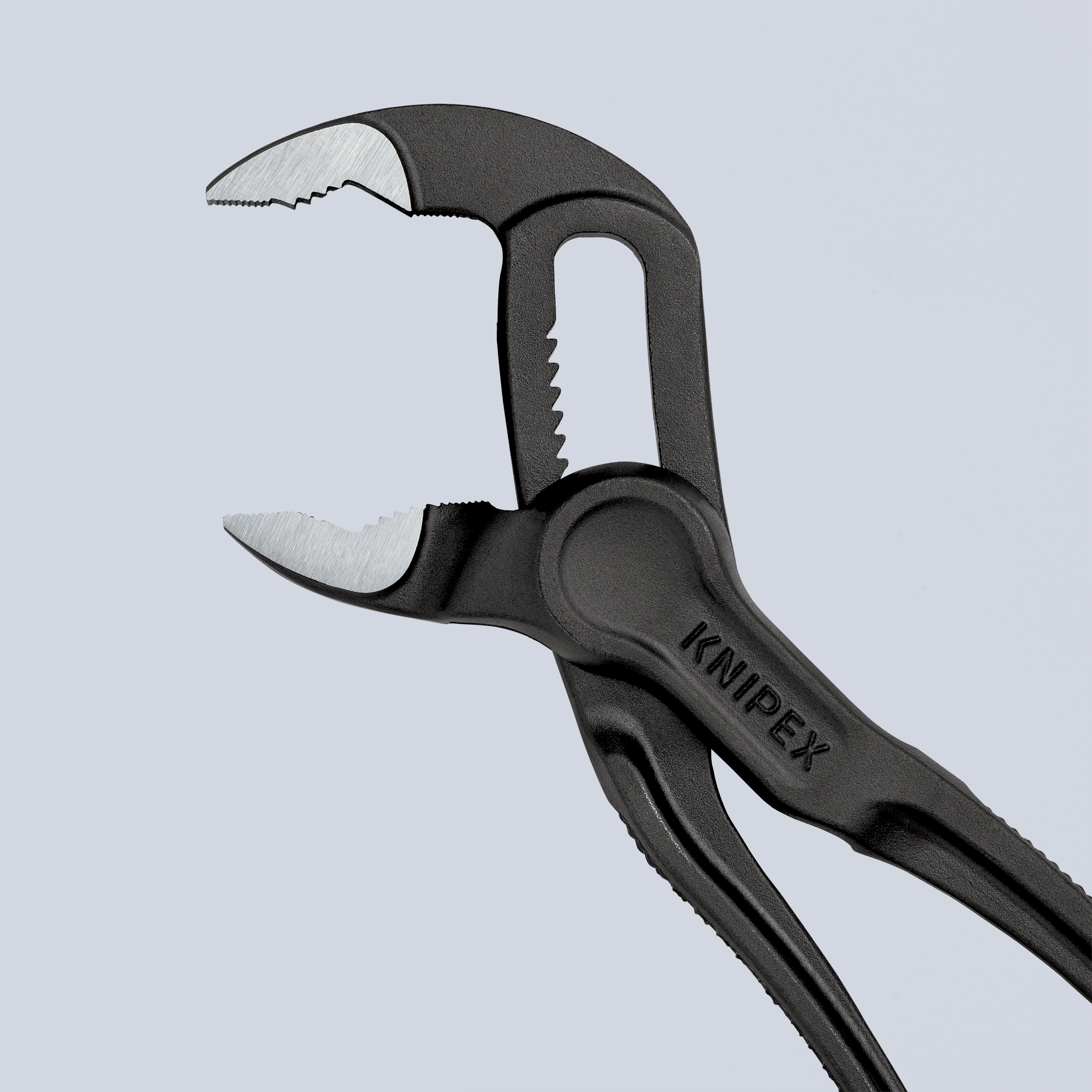

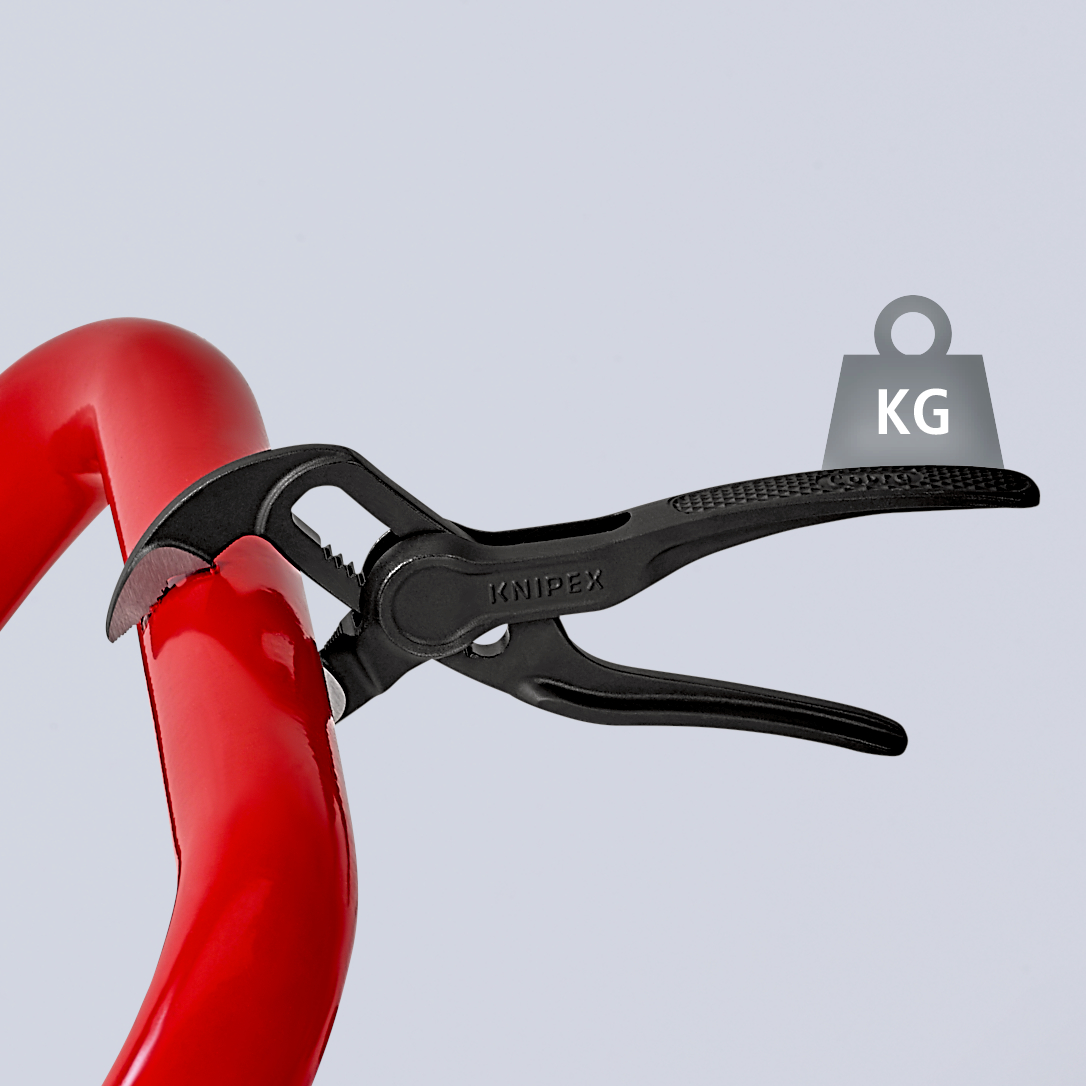

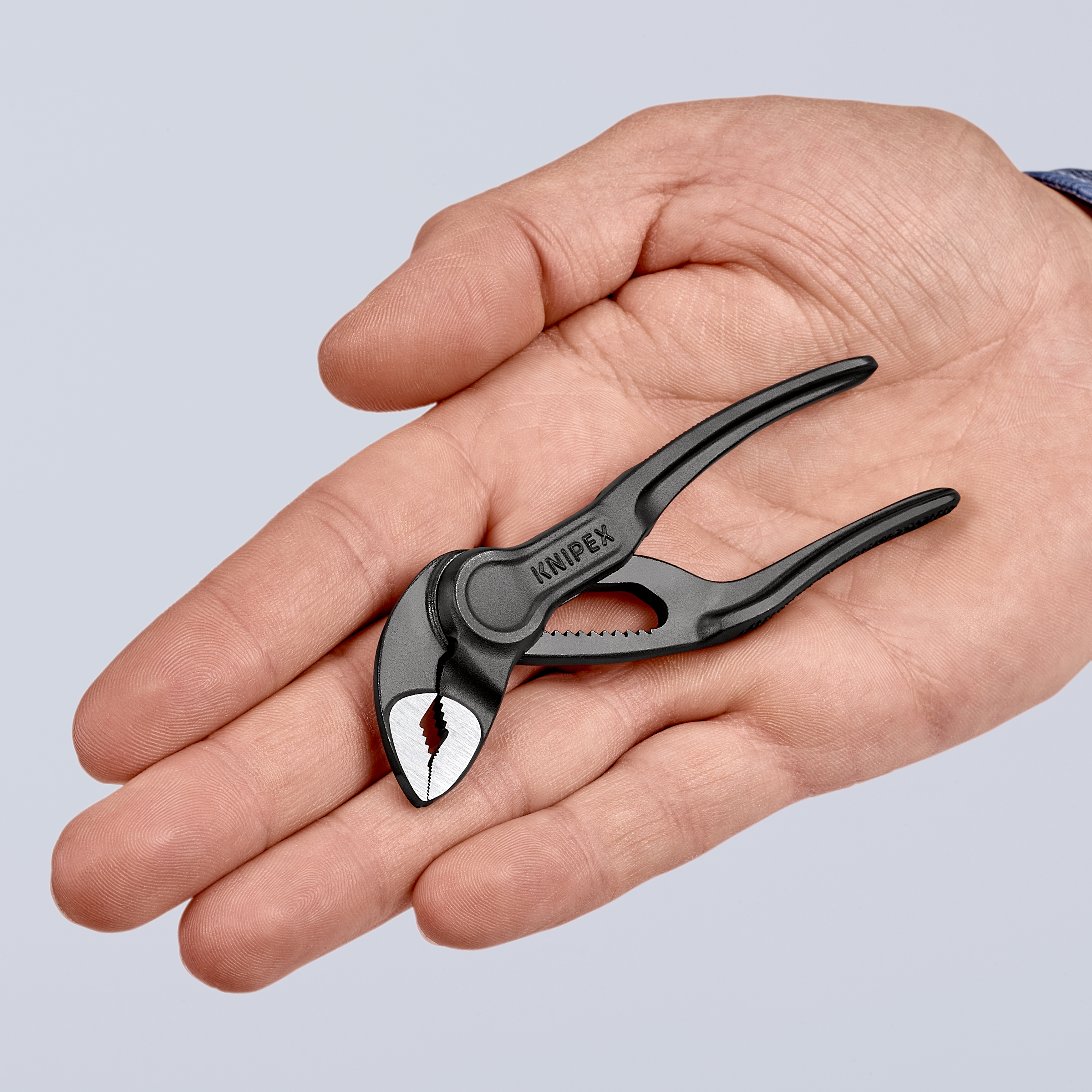

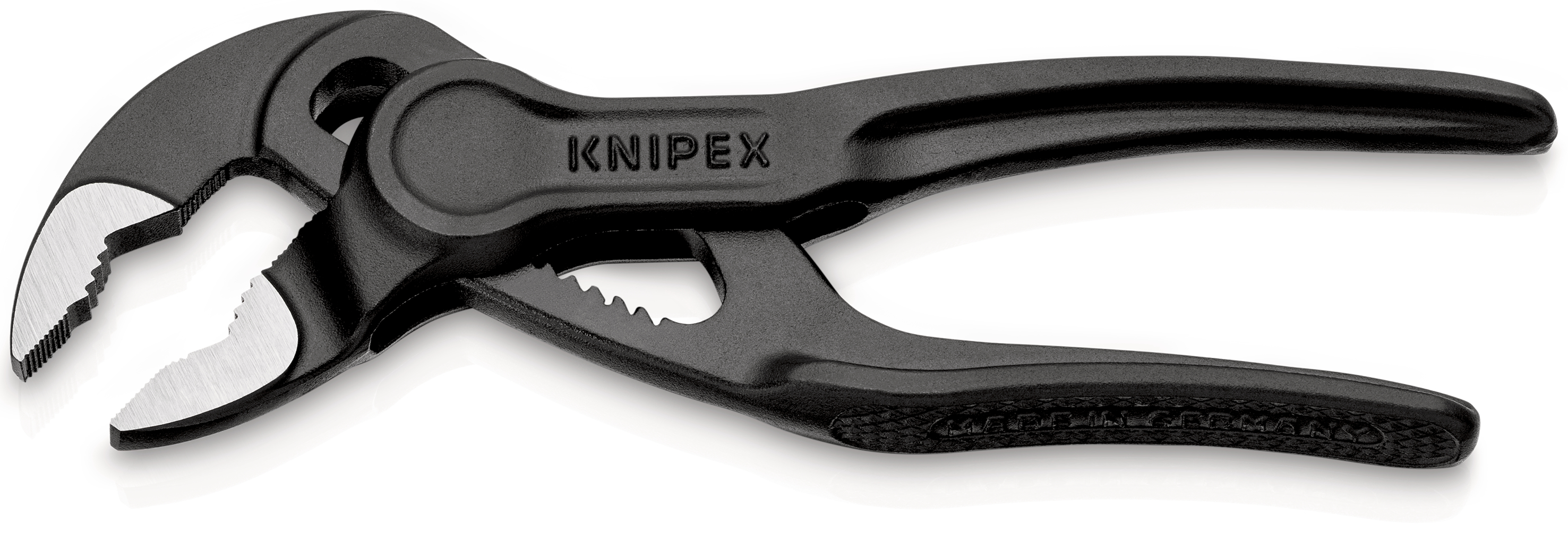

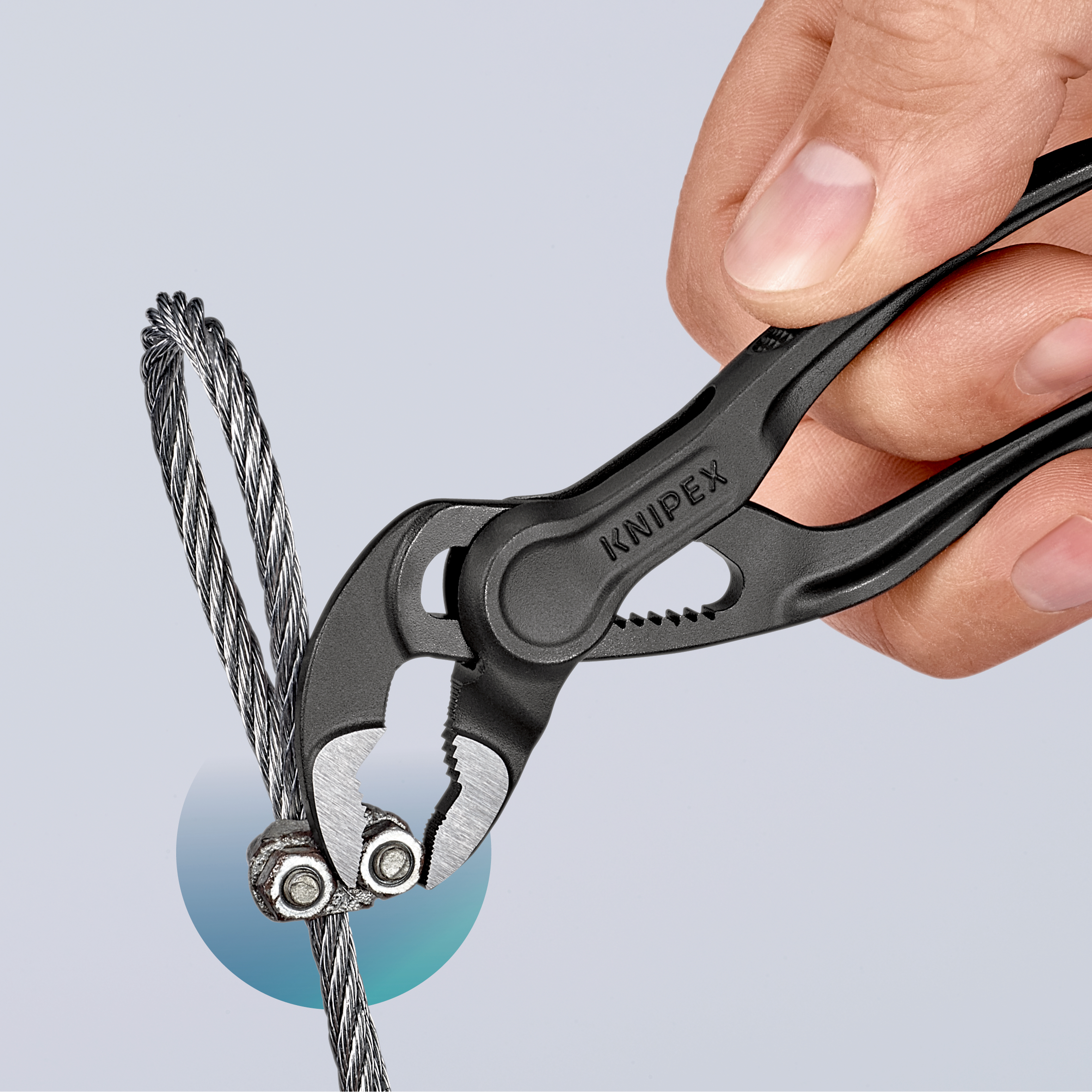

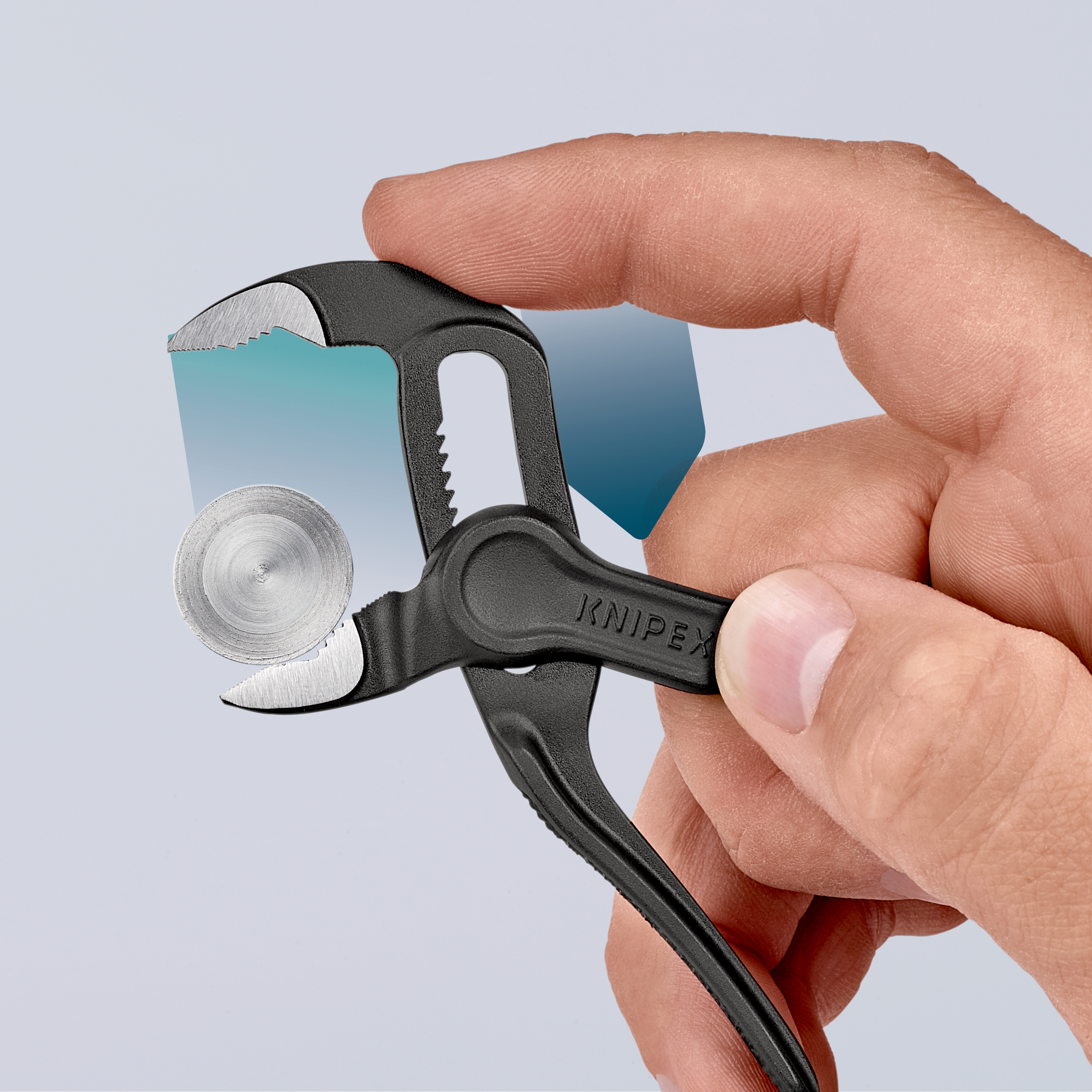

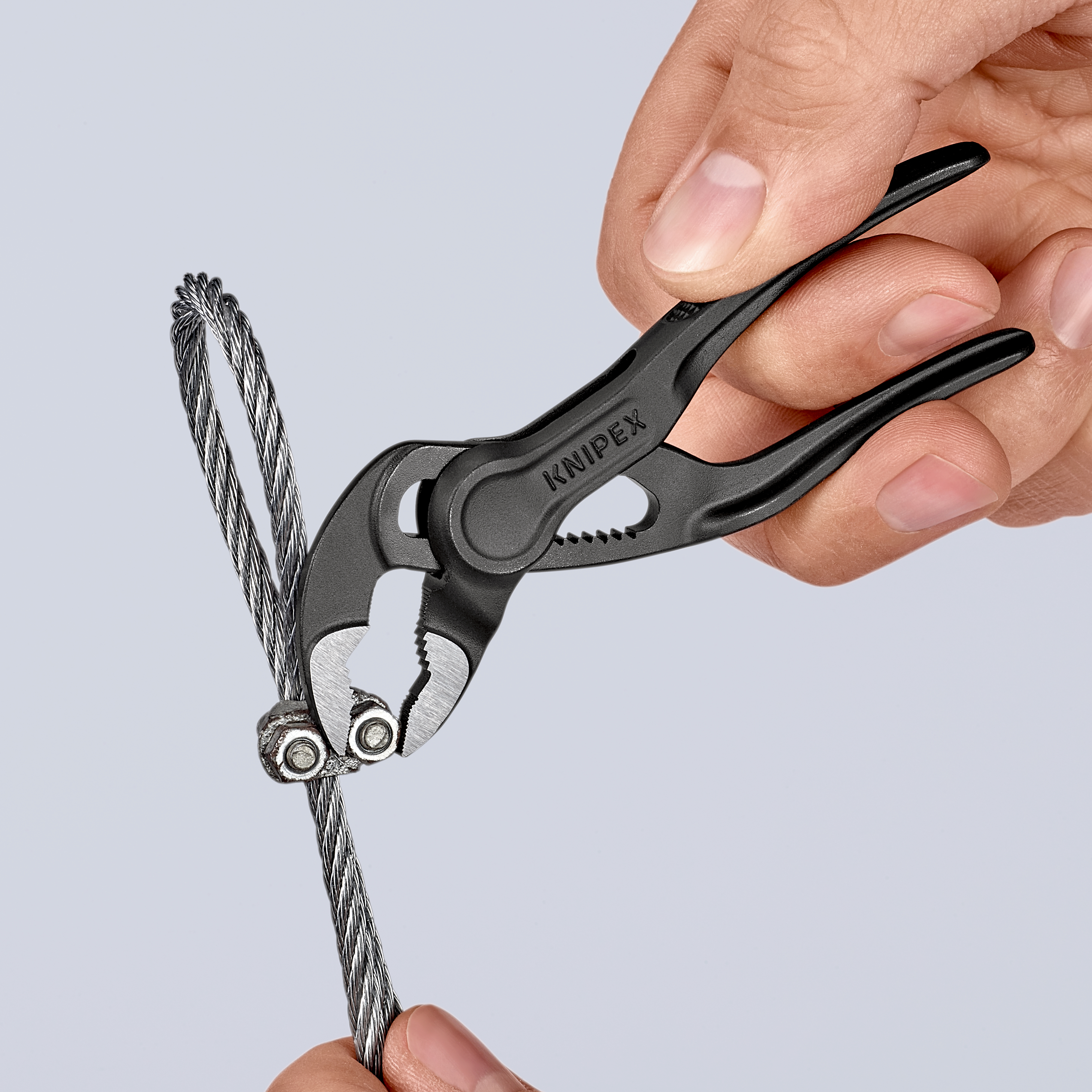

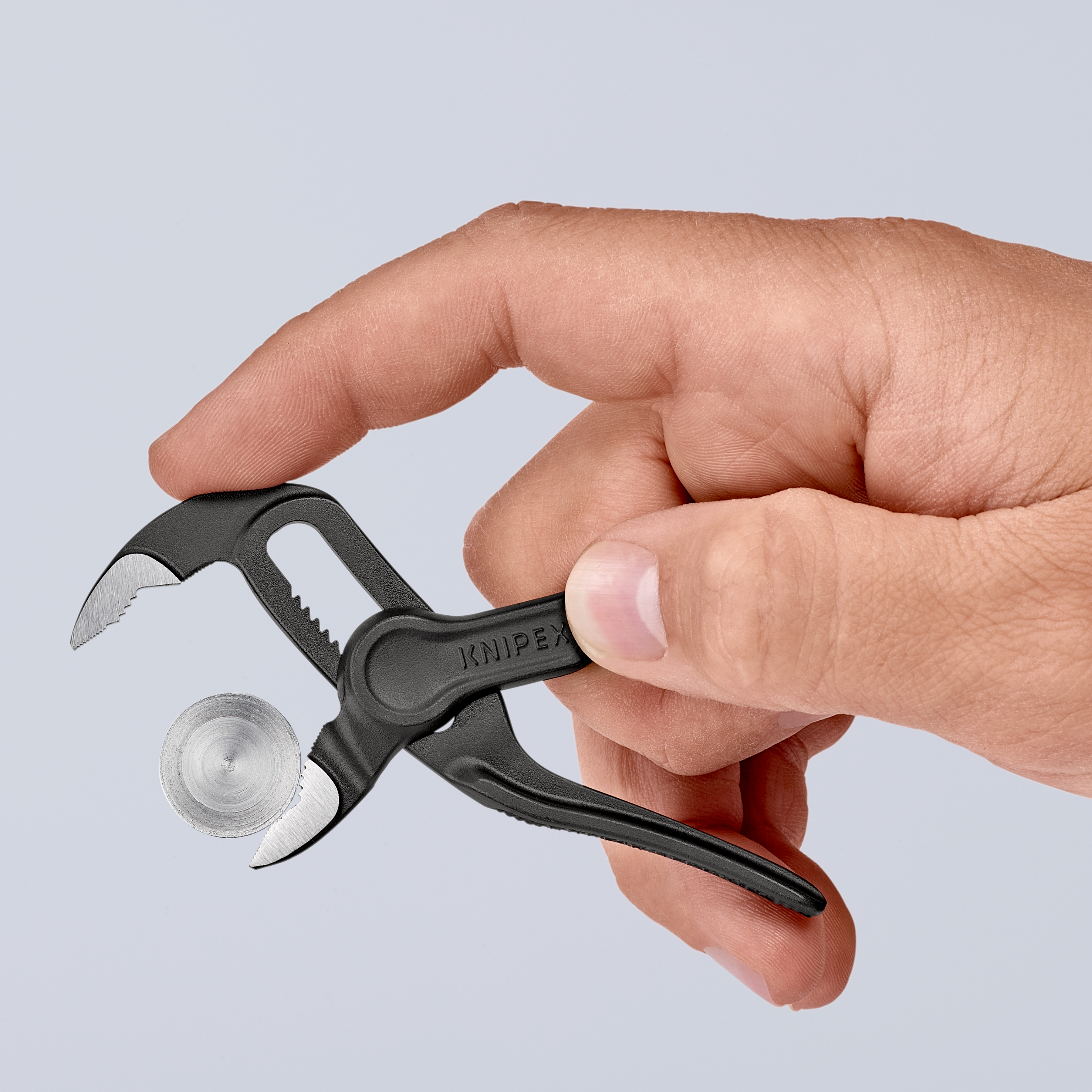

87 00 100 KNIPEX Cobra® XS Optimum accessibility, even in confined spaces: particularly compact design, very slim head. One-handed fine adjustment by pushing for the simplest adjustment to different workpiece sizes. Gripping capacity Ø 28 mm, width across flats up to 24 mm – at only 100 mm length. Box joint: high quality and durability provided by dual guide. Gripping surfaces with special hardened teeth, teeth hardness approx. 61 HRC: high wear resistance and stable gripping. Self-clamping on pipes and nuts: no slipping on the workpiece, effortless working. Pinch guard prevents operators' fingers being pinched. Fine adjustment with 11 adjustment positions. - Adjustment positions: 11- Capacities for pipes (diameter): Ø 1 in- Capacities for nuts: 24mm- Capacities for pipes (diameter): Ø 28mm
Documente
Specificatii
| Options | |
| Insulated | No |
| Antimagnetic | No |
| Low spark model | No |
| Material | |
| Surface protection | Other |
| Surface treatment | - |
| Measurements | |
| Weight | 62 g |
| Length | 100 mm |
| Jaw length | - mm |
| Max. cheeks opening | - mm |
| Head width | - mm |
| Head height | - mm |
| Protection | |
| Isolation protection 1000 V | No |
| Other | |
| Joint | Through-feed joint |
| Handle cover | None |
| Model/type | |
| Grip design | 1-component |
| With impact protection | - |
| Number of positions | 11 |
| Approval/certification | |
| VDE tested | No |
| Package 1 | |
| volume | 0,0003 |
| weight | 0,062 |
| length | 0,102 |
| width | 0,03 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4003773085836 |
| Dimensions of product | |
