Descriere
Downlights cu carcasă din aluminiu și driver DALI. Caracteristici produs: Utilizări avansate cu instalațiile de lumină DALI. Diametrul decupajului necesar în plafon: 150 mm sau 200 mm (în funcție de variantă). Tip de protecție: IP44. Beneficii produs: Funcționalitate avansată datorită mecanismului de acționare DALI deja inclus. Driver DALI cu o configurație de curent pentru fiecare corp de iluminat în parte deja instalată. Eficacitate luminoasă ridicată. Economii de energie de până la 60 % (față de corpurile de iluminat cu lămpi CFL). Lumină foarte omogenă. Design funcțional. Instalare ușoară cu racordare rapidă. Garanție 5 ani. Zone de utilizare: Înlocuitor direct pentru corpuri de iluminat cu lămpi fluorescente compacte. Iluminare generală. Zone publice. Scări. Coridoare. Foaiere. Magazine. Recomandări privind siguranța: Toate conexiunile electrice trebuie efectuate de o persoană calificată.. Atenție, risc de electrocutare.. Corpurile de iluminat nu sunt adecvate pentru a fi acoperite cu material izolat termic..
Documente
Specificatii
| Mounting/installation | |
| Suitable for surface mounting | Yes |
| Suitable for built-in mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Application | |
| Suitable for low voltage cable system | No |
| Suitable for workplace according to EN 12464-1 | No |
| Setting/control | |
| Adjustability | Not adjustable |
| Type of control gear | LED operating device current-controlled |
| Dimming mains voltage modulation | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Operation by Bluetooth | No |
| Model/type | |
| With movement sensor | No |
| With light sensor | No |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Lamp holder | None |
| With control gear | Yes |
| Dimming potentiometer (integrated) | No |
| Reflector | None |
| Type of wiring | Ending |
| Other | |
| Suitable for number of light sources | 0 |
| Light distributor | Diffuser lens/optic/panel |

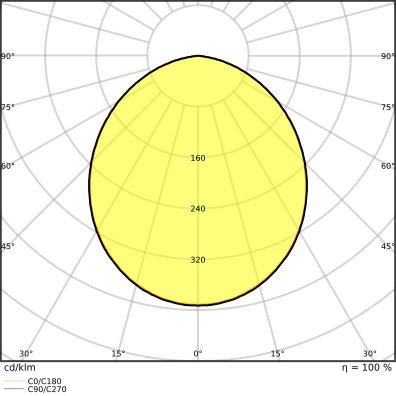

| Light distribution | Symmetric |

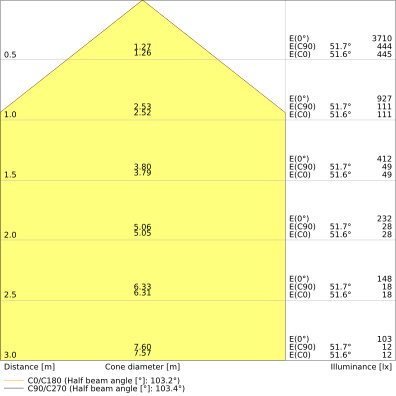

| Beam angle | > 80° - Extreme wide beam |
| Light outlet | Direct |
| Rated lifetime L70/B50 at 25 °C | 50000 |
| Impact strength | IK02 |
| Luminous flux | 2370 |
| Rated luminous flux according to IEC 62722-2-1 | 2370 |
| Luminaire efficacy | 95 |
| Total harmonic distortion | - |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Ratio (UGR) | - |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Material | |
| Housing material | Aluminium |
| Surface protection | Powder coating |
| Material cover | Plastic, transparent |
| Surface brushed | No |
| Colour | |
| Housing colour | White |
| Colour of light | White |
| Colour temperature | 4000 |
| Colour rendering index CRI | 80-89 |
| Colour of light adjustable | No |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Reflector colour | - |
| Electrical | |
| Voltage type | AC |
| Nominal voltage | 220 |
| Nominal current | 110 |
| Max. system power | 25.00 |
| Power factor | 0.90 |
| Number of poles | 4 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 32 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 53 |
| Emergency power supply integrated | No |
| Suitable for lamp power | - |
| Connection | |
| Exchangeable control gear | Yes |

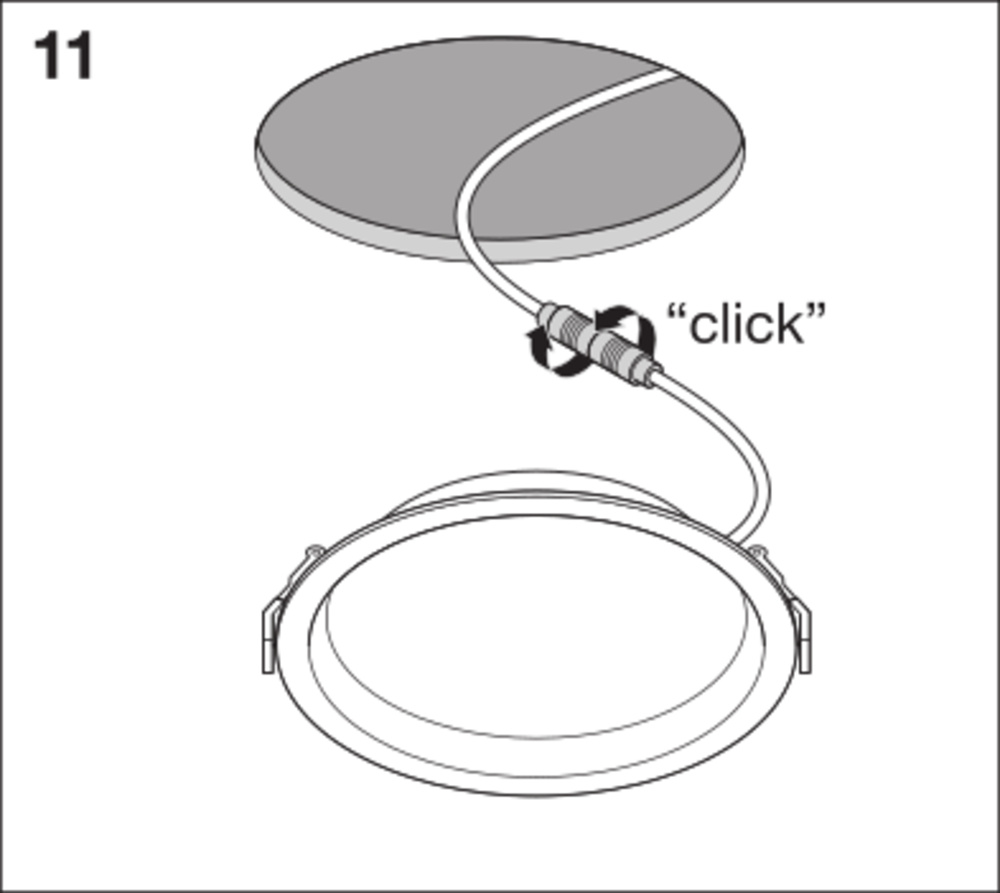

| Connection type | Push-in clamp |
| Connectable conductor cross section | - |
| Conductor cross section | - |
| Options | |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | Yes |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Constant light output (CLO) | No |
| Covering of the luminaire with thermally insulating material possible | No |
| IFTTT support available | Yes |
| Protection | |
| Degree of protection (IP) | IP44 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -20 |

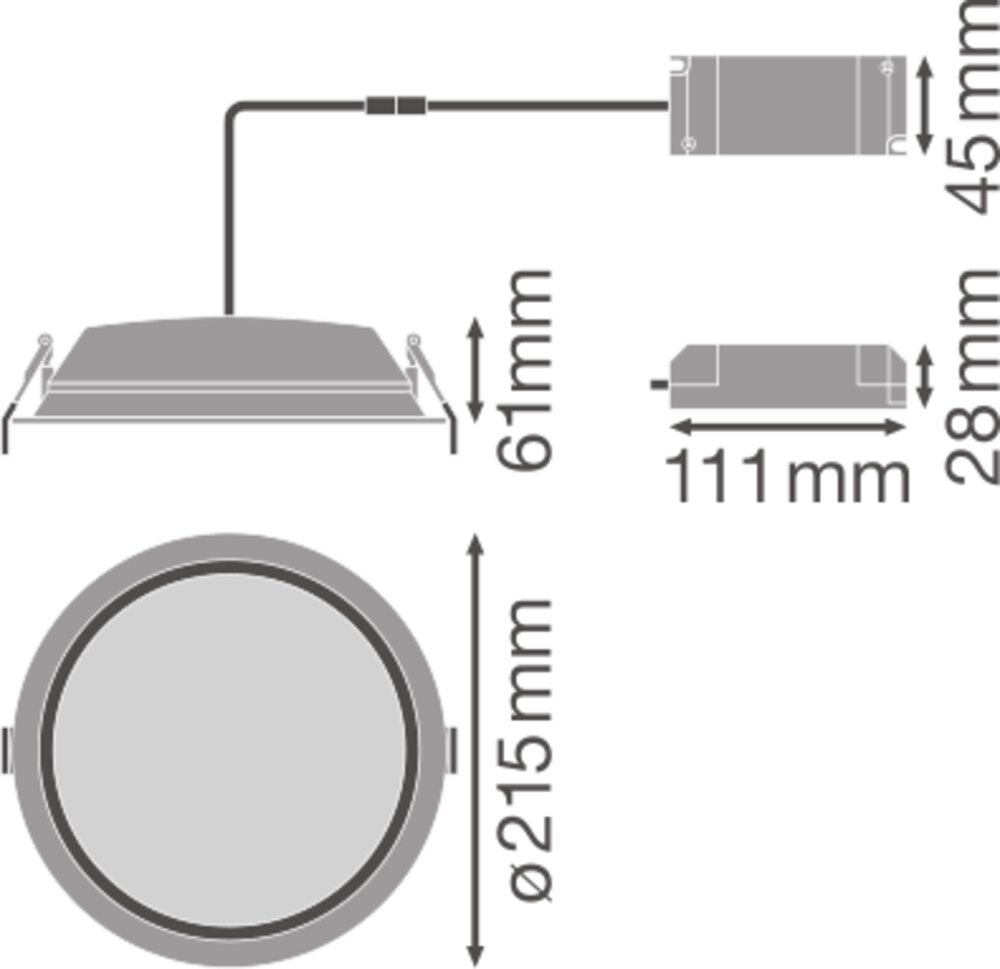

| Measurements | |
| Width | 215.00 |
| Height/depth | 61.00 |
| Length | 215.00 |
| Outer diameter | 215.00 |
| Built-in width | 200 |
| Built-in height/depth | 120 |
| Built-in length | 200 |
| Built-in diameter | 200 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG0 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Performance | |
| Luminous intensity | - |
| Package 1 | |
| volume | 0,005569 |
| weight | 0,775 |
| length | 0,23 |
| width | 0,23 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4058075091634 |
| Package 2 | |
| volume | 0,080643 |
| weight | 7,68 |
| length | 0,66 |
| width | 0,47 |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 4058075091641 |
| Dimensions of product | |
| Weight | 0,6 |
