Descriere

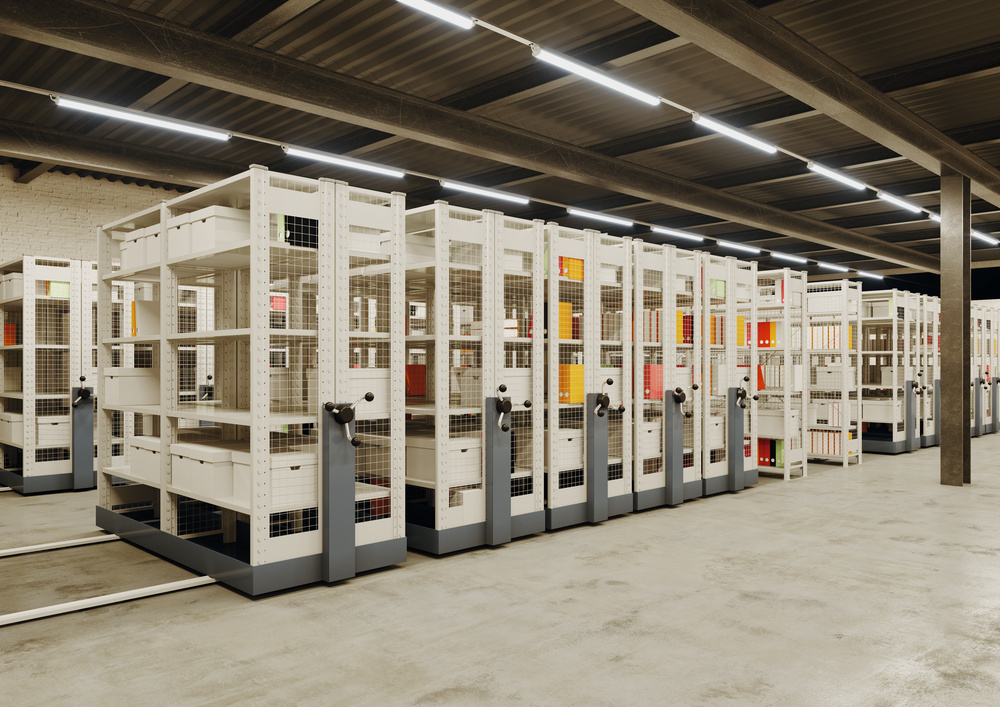

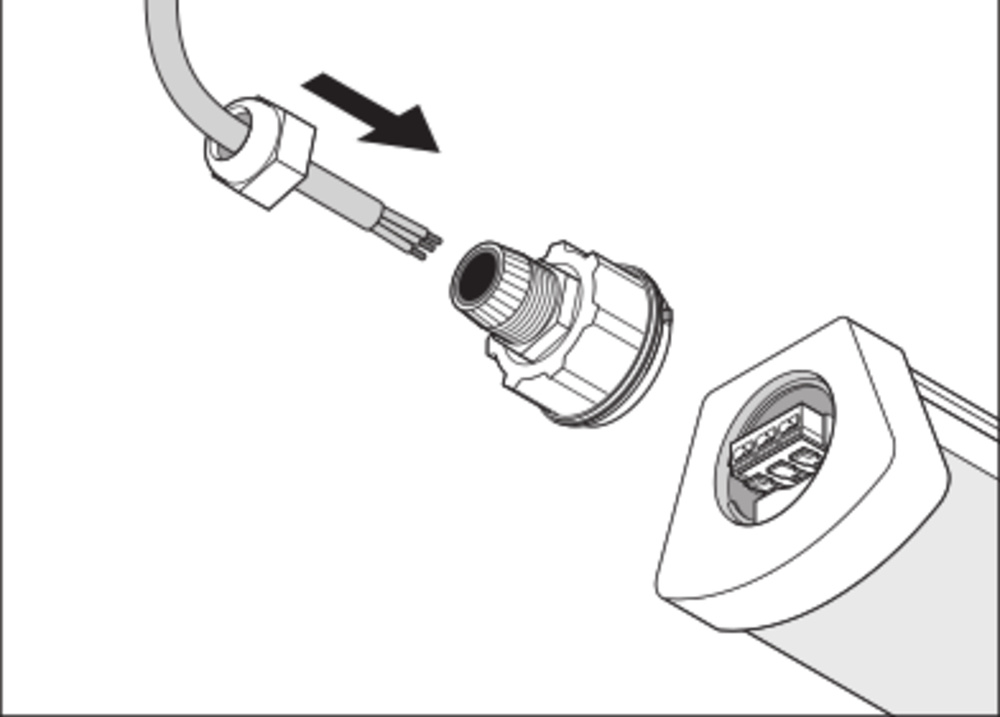

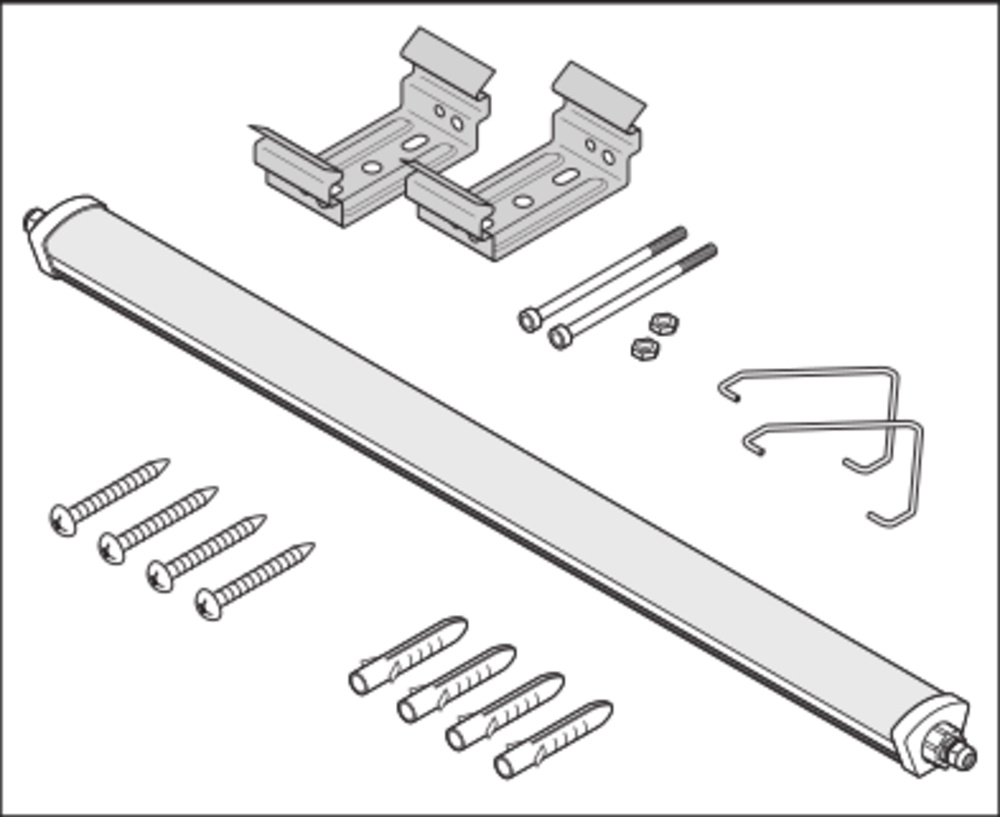

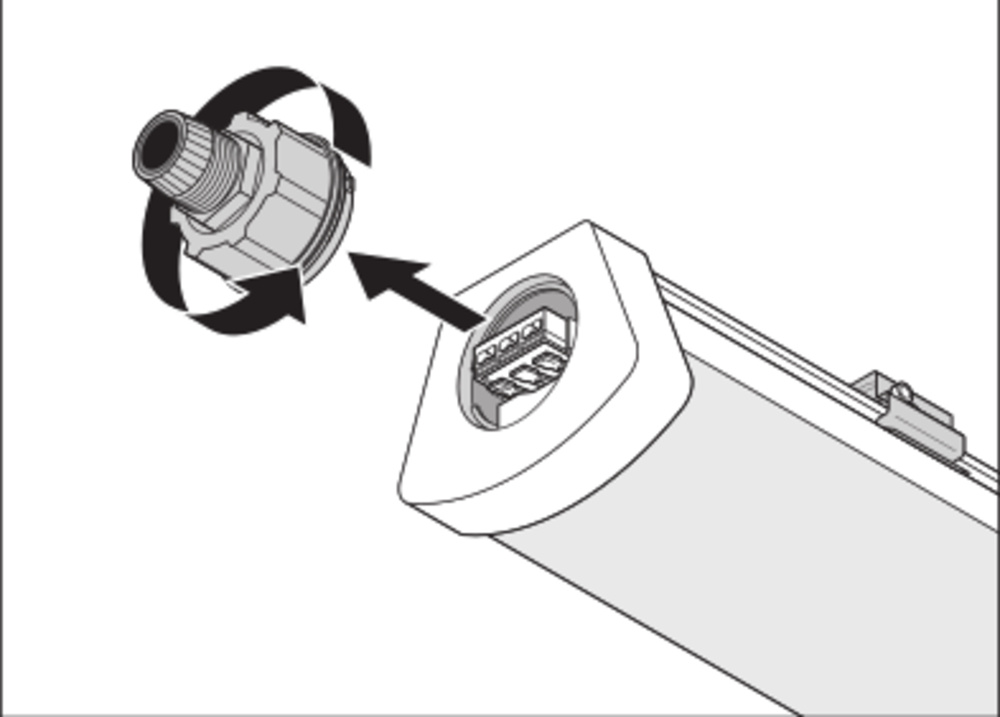

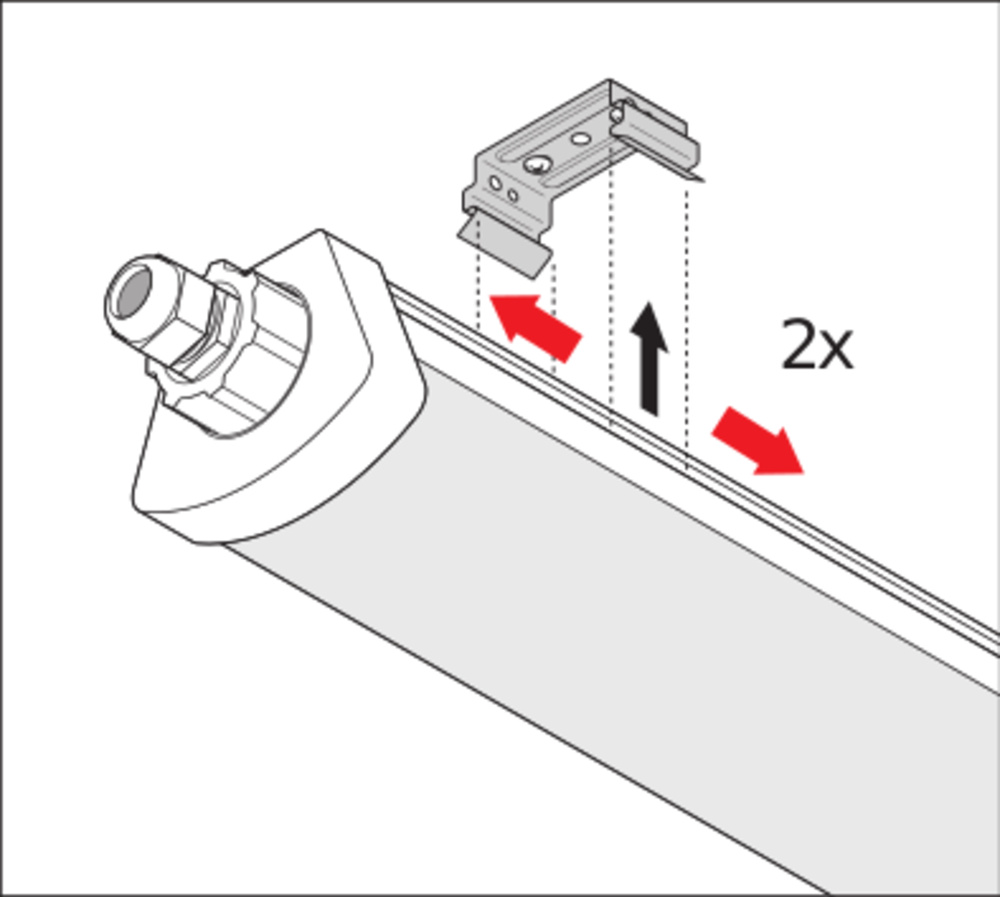

Damp-proof, cablat de trecere (L, N ,). Caracteristici produs: Înaltă eficacitate luminoasă: până la 120 lm/W. Tip de protecție: IP66. Unghiul fasciculului: 120°. Cablaj de trecere 3x1,5mm² deja instalat. Carcasă din policarbonat. Beneficii produs: Lumină distribuită uniform. Economii de energie de până la 50 % (față de corpurile de iluminat cu lămpi fluorescente). Instalare ușoară, deoarece suporturile de fixare pot fi poziționate liber pe corpul de iluminat. Acces ușor la bornele electrice datorită capacelor de capăt cu mecanism de blocare prin răsucire. Racordare electrică fără scule datorită conectorului cu buton de comandă. Garanție 5 ani. Zone de utilizare: Unități industriale și de depozitare. Parcări și pasaje subterane. Garaje. Ateliere, linii de asamblare. Echipamente / Accesorii: Cleme din oțel inoxidabil cu șuruburi de siguranță incluse. Accesorii de fixare incluse (kit de suspendare, kit de protecție antifurt). Recomandări privind siguranța: Toate conexiunile electrice trebuie efectuate de o persoană calificată.. Atenție, risc de electrocutare..
Documente
Specificatii
| Mounting/installation | |
| Suitable for wall mounting | Yes |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for surface mounting | Yes |
| Application | |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for emergency lighting | No |
| Model/type | |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Type of grid | High-gloss |
| With control gear | Yes |
| Dimming potentiometer (integrated) | No |
| With movement sensor | No |
| With light sensor | No |
| With air slots | No |

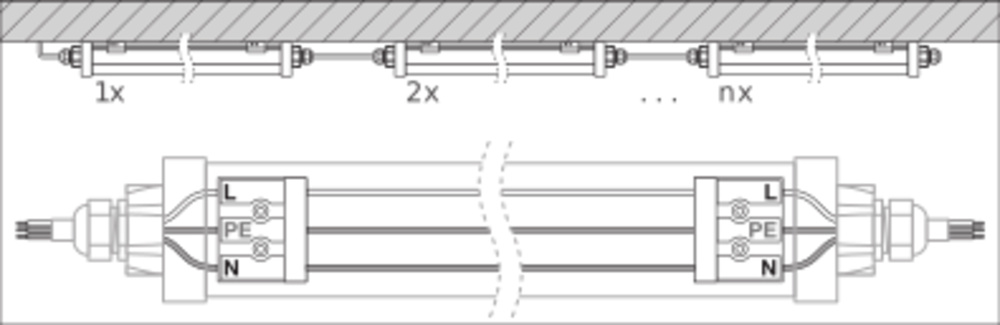

| Type of wiring | Loop-through wiring included |
| Lamp holder | - |
| Other | |
| Suitable for number of light sources | 0 |
| Light distributor | Diffuser lens/optic/panel |

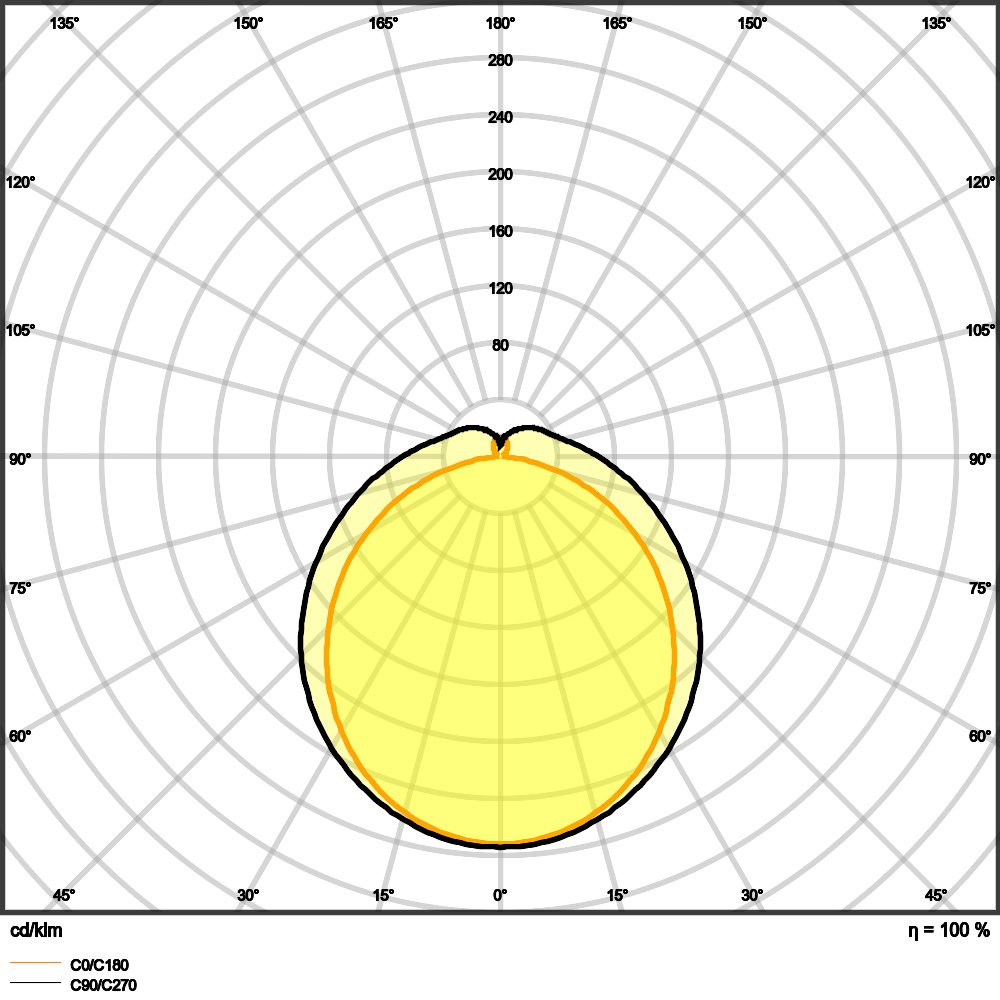

| Light distribution | Symmetric |
| Beam angle | > 80° - Extreme wide beam |
| Light outlet | Direct |
| Rated lifetime L70/B50 at 25 °C | 50000 |
| Impact strength | IK08 |
| Luminaire efficacy | 115 |
| Rated luminous flux according to IEC 62722-2-1 | 6300 |
| Total harmonic distortion | 20 |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Ratio (UGR) | - |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Material | |
| Housing material | Plastic |
| Surface protection housing | Untreated |
| Material cover | Plastic, opal |
| Colour | |
| Housing colour | Grey |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Colour of light | White |
| Colour temperature | 3000 |
| Colour rendering index CRI | 80-89 |
| Colour of light adjustable | No |
| Electrical | |
| Voltage type | AC |
| Nominal voltage | 220 |
| Nominal current | 300 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 32 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 42 |
| Emergency power supply integrated | No |
| Max. system power | 55.00 |
| Power factor | 0.90 |
| Number of poles | 3 |
| Suitable for lamp power | - |
| Setting/control | |
| Type of control gear | Electronic ballast |
| Dimming mains voltage modulation | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Operation by Bluetooth | No |
| Connection | |
| Exchangeable control gear | No |
| Connection type | Push-in clamp |
| Conductor cross section | - |
| Options | |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| IFTTT support available | Yes |
| Constant light output (CLO) | - |
| Protection | |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | - |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -35 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |

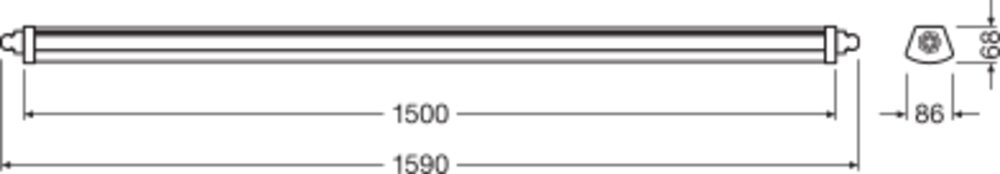

| Measurements | |
| Width | 86.00 |
| Height/depth | 68.00 |
| Length | 1590.00 |
| Built-in width | - |
| Built-in height/depth | - |
| Built-in diameter | - |
| Built-in length | - |
| Outer diameter | - |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG0 |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | - |
| Performance | |
| Luminous intensity | - |
| Package 1 | |
| volume | 0,010491 |
| weight | 1,57 |
| length | 0,07 |
| width | 1,62 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4058075424289 |
| Package 2 | |
| volume | 0,07872 |
| weight | 10,035 |
| length | 1,64 |
| width | 0,2 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 4058075424296 |
| Dimensions of product | |
| Weight | 1,38 |
