Descriere
Corpuri de iluminat panel. Caracteristici produs: Durată de funcționare (L70/B50): până la 72.000 h (la 25 °C). Durată de viață (L80/B10): până la 50.000 h (la 25 °C). Carcasă din metal, lentile și reflectoare din policarbonat (PC). Flux luminos: până la 4.150 lm. Garanție 5 ani. Beneficii produs: UGR < 16 și distribuție omogenă a luminii. Lumină cu licărire redusă datorită unui dispozitiv electronic special de control. Economii de energie datorită eficacității sistemului de până la 150 lm/W. Driver extern pentru flexibilitate extinsă și instalare ușoară. Este disponibilă varianta cu carcasă neagră sau albă. Zone de utilizare: Înlocuitor direct pentru corpuri de iluminat cu lămpi fluorescente. Birouri, săli de conferințe. Zone de recepție, holuri, coridoare, lifturi. Potrivit pentru sisteme de plafon încastrat.
Documente
Specificatii
| Mounting/installation | |
| Suitable for wall mounting | No |
| Suitable for suspended mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for built-in mounting | Yes |
| Suitable for surface mounting | No |
| Application | |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for emergency lighting | Yes |
| Model/type | |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Dimming potentiometer (integrated) | No |
| With movement sensor | No |
| With light sensor | No |
| With air slots | No |
| Type of wiring | Ending |
| Lamp holder | - |
| Type of grid | - |
| With control gear | - |
| Other | |
| Suitable for number of light sources | 0 |
| Light distributor | Focal lens |
| Light distribution | Symmetric |
| Beam angle | 5-10° - Extreme narrow beam |
| Light outlet | Direct |
| Rated lifetime L70/B50 at 25 °C | 72000 |
| Impact strength | IK02 |
| Luminaire efficacy | 150 |
| Rated luminous flux according to IEC 62722-2-1 | 4150 |
| Total harmonic distortion | 15 |
| Unified Glare Ratio (UGR) | 16 |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Material | |
| Housing material | Steel |
| Surface protection housing | Powder coating |
| Material cover | Other |
| Colour | |
| Housing colour | White |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Colour of light | White |
| Colour temperature | 4000 |
| Colour rendering index CRI | 80-89 |
| Colour of light adjustable | No |
| Electrical | |
| Voltage type | AC |
| Nominal voltage | 220 |
| Nominal current | 121 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 21 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 21 |
| Emergency power supply integrated | No |
| Max. system power | 27.50 |
| Number of poles | 2 |
| Suitable for lamp power | - |
| Power factor | - |
| Setting/control | |
| Type of control gear | Electronic ballast |
| Dimming mains voltage modulation | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Operation by Bluetooth | No |
| Connection | |
| Exchangeable control gear | Yes |
| Connection type | Push-in clamp |
| Conductor cross section | - |
| Options | |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Constant light output (CLO) | No |
| IFTTT support available | Yes |
| Energy efficiency/environmental | |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | C |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | No |
| Photobiological safety according to EN 62471 | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | 0 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |

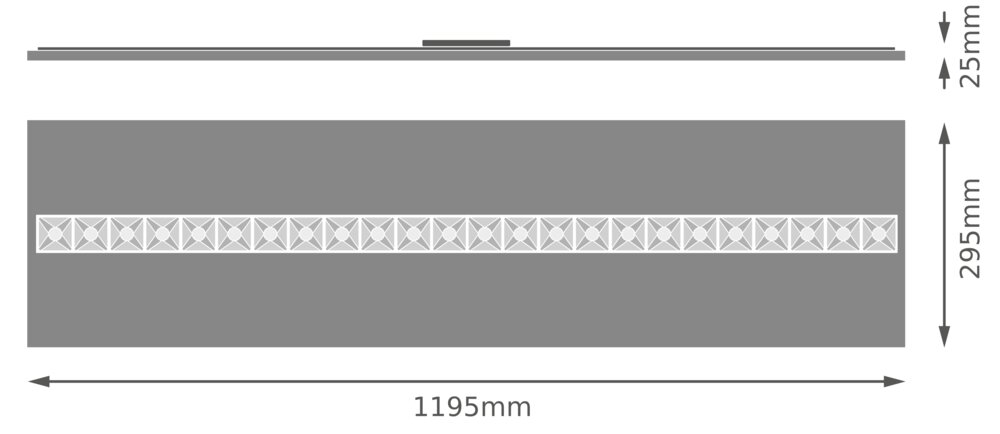

| Measurements | |
| Width | 295.00 |
| Height/depth | 29.00 |
| Length | 1195.00 |
| Built-in length | 1175 |
| Built-in width | 275 |
| Built-in height/depth | 50 |
| Built-in diameter | - |
| Outer diameter | - |
| Communication | |
| Compatible with Casambi | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Performance | |
| Luminous intensity | - |
| Package 1 | |
| volume | 0,022335 |
| weight | 2,678 |
| length | 1,25 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4099854149719 |
| Package 2 | |
| volume | 0,129283 |
| weight | 14,575 |
| length | 1,27 |
| width | 0,28 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4099854149726 |
| Dimensions of product | |
| Weight | 2,25 |
