Descriere

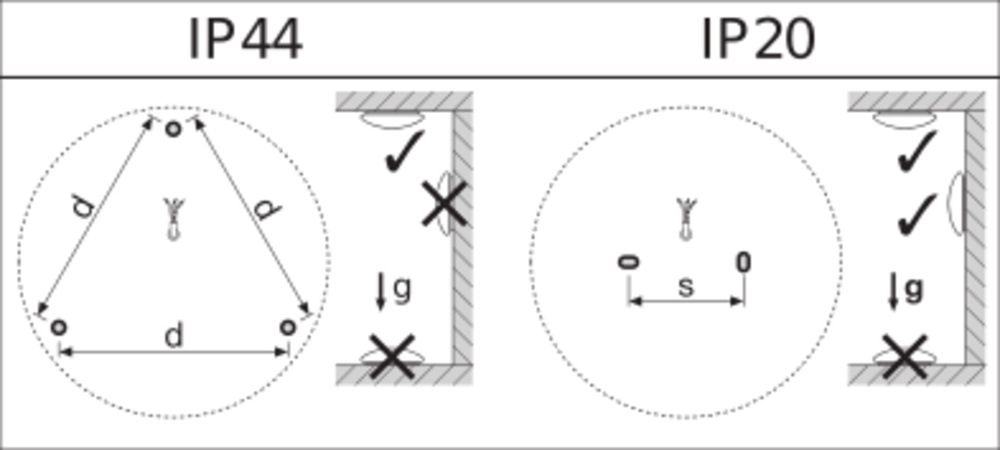

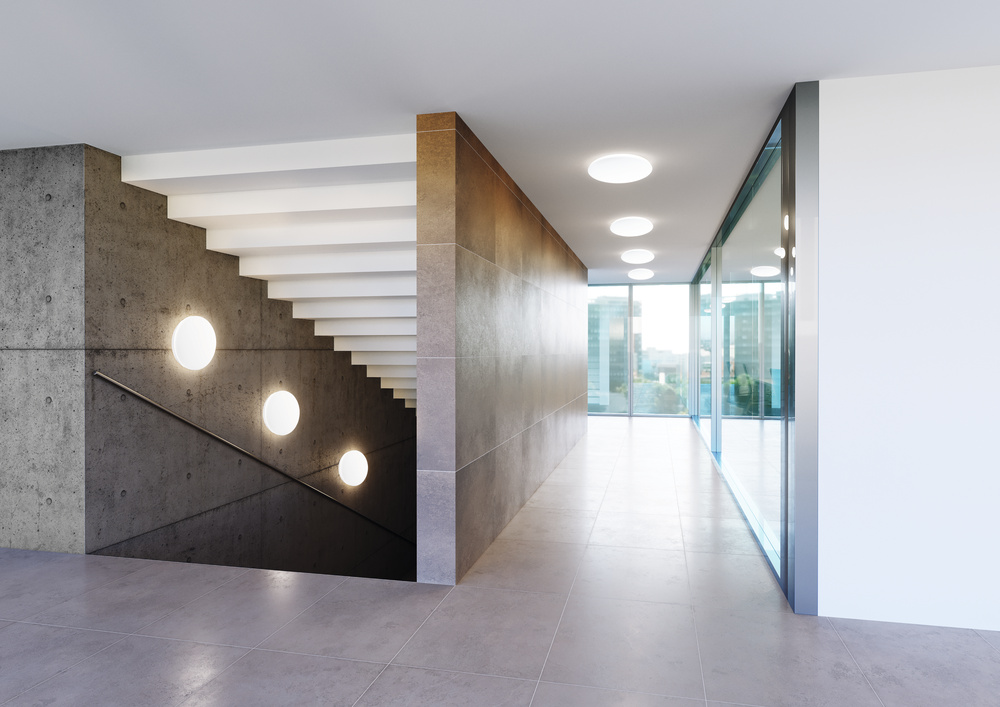

Aplică și plafonieră, cu IP44. Caracteristici produs: Tip de protecție: IP44 (montare pe plafon), IP20 (montare pe perete). Rezistență la impact: IK03. Carcasă din metal, capac din PMMA. Temperatura ambiantă în timpul funcționării: -20…+40 °C. Se utilizează numai în spații interioare, nu este destinat utilizării în spații exterioare. Beneficii produs: Corp de iluminat de interior cu eficacitate luminoasă ridicată. Economii de energie de până la 55 % față de corpurile de iluminat cu CFL. Instalare ușoară și rapidă. Lumină foarte omogenă. Garanție 3 ani. Zone de utilizare: Coridoare. Scări. Băi. Foaiere. Echipamente / Accesorii: Capac de schimb disponibil opțional. Recomandări privind siguranța: Toate conexiunile electrice trebuie efectuate de o persoană calificată.. Atenție, risc de electrocutare.. Produs cu clasa de protecție I. Toate componentele metalice conductoare de electricitate ale carcasei care pot absorbi tensiune în timpul funcționării sau în timpul întreținerii în cazul unei defecțiuni trebuie conectate continuu la conductorul de împământare de protecție..
Documente
Specificatii
| Mounting/installation | |
| Suitable for wall mounting | Yes |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for surface mounting | Yes |
| Application | |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for emergency lighting | No |
| Model/type | |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Type of grid | Matt |
| With control gear | Yes |
| Dimming potentiometer (integrated) | No |
| With movement sensor | No |
| With light sensor | No |
| With air slots | No |
| Type of wiring | Ending |
| Lamp holder | - |
| Other | |
| Suitable for number of light sources | 0 |
| Light distributor | Other |

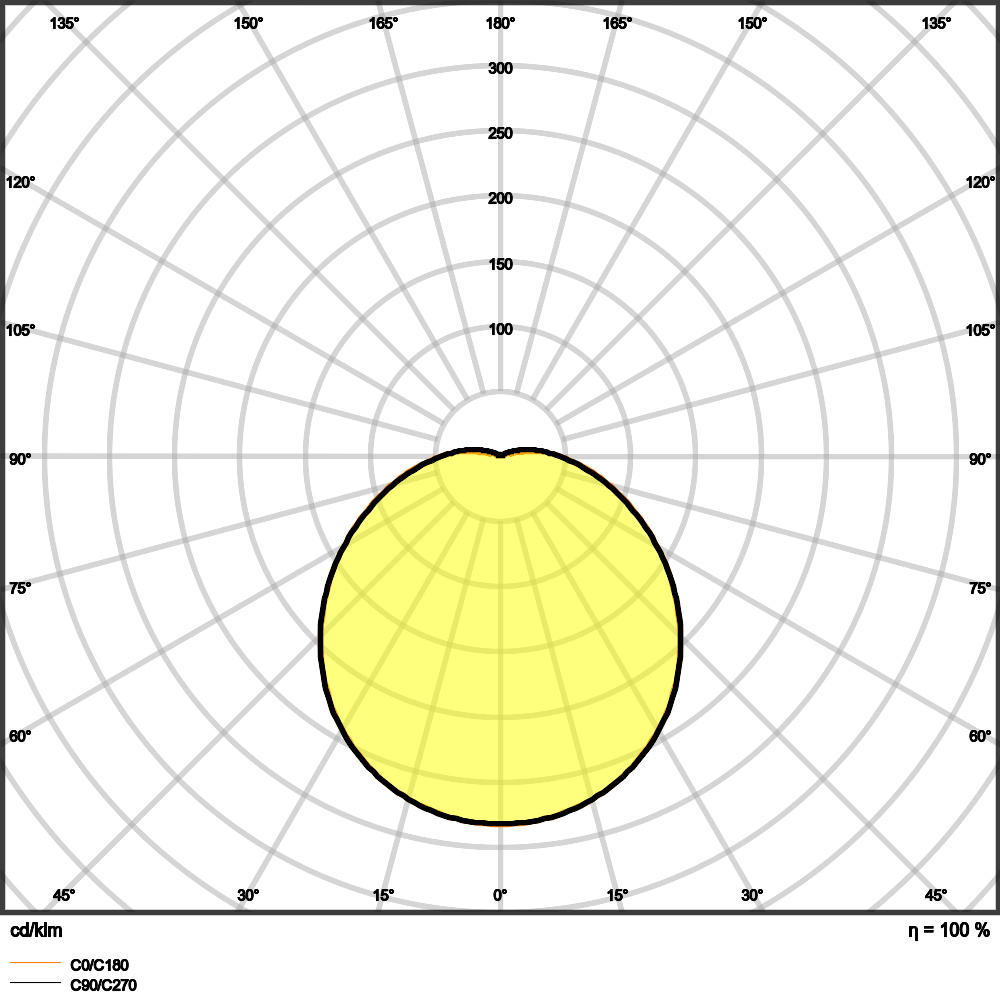

| Light distribution | Symmetric |

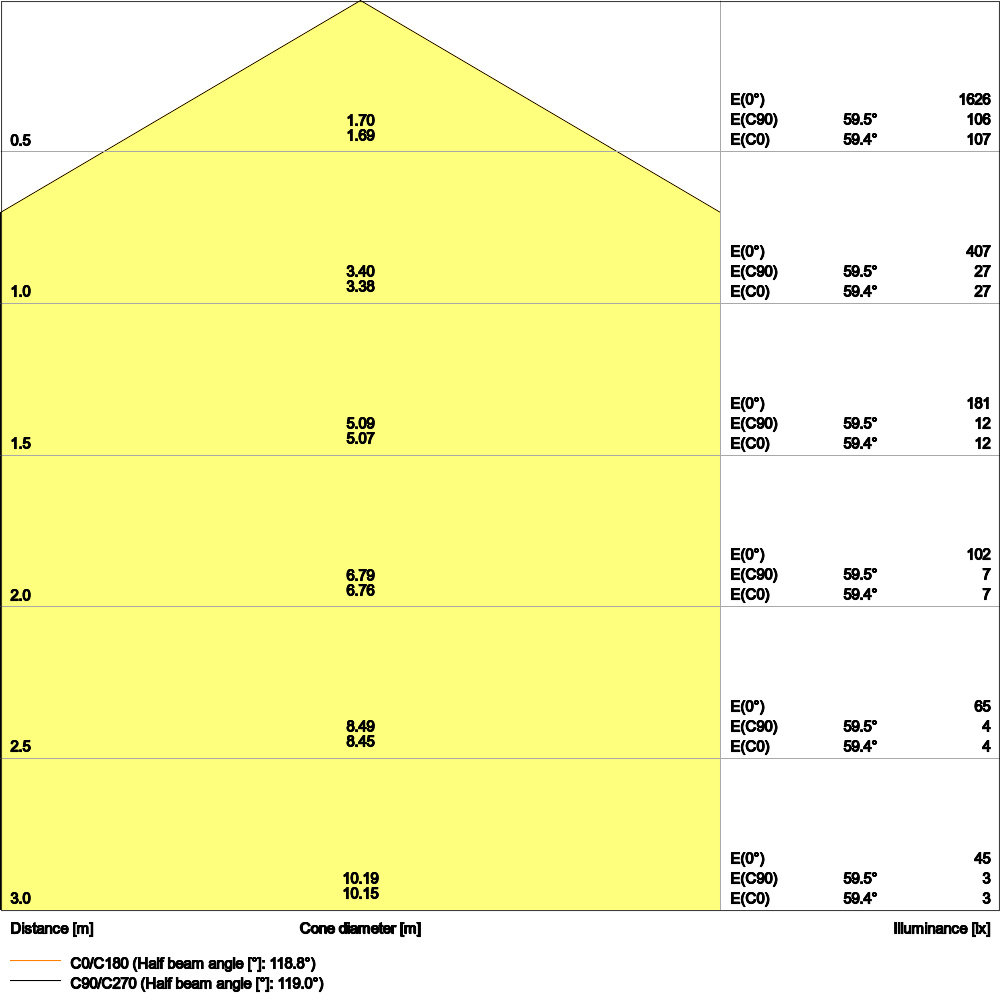

| Beam angle | > 80° - Extreme wide beam |
| Light outlet | Direct |
| Rated lifetime L70/B50 at 25 °C | 30000 |
| Impact strength | IK03 |
| Luminaire efficacy | 80 |
| Rated luminous flux according to IEC 62722-2-1 | 1440 |
| Total harmonic distortion | - |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Ratio (UGR) | - |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Material | |
| Housing material | Steel |
| Surface protection housing | Powder coating |
| Material cover | Plastic, transparent |
| Colour | |
| Housing colour | White |
| Colour of light | White |
| Colour temperature | 3000 |
| Colour rendering index CRI | 80-89 |
| Colour of light adjustable | No |
| Colour consistency (McAdam ellipse) | - |
| Electrical | |
| Voltage type | AC |
| Nominal voltage | 220 |
| Nominal current | 140 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 35 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 56 |
| Emergency power supply integrated | No |
| Max. system power | 18.00 |
| Power factor | 0.55 |
| Number of poles | 2 |
| Suitable for lamp power | - |
| Setting/control | |
| Type of control gear | Electronic ballast |
| Dimming mains voltage modulation | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Operation by Bluetooth | No |
| Connection | |
| Exchangeable control gear | No |
| Connection type | Push-in clamp |
| Conductor cross section | - |
| Options | |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Constant light output (CLO) | No |
| IFTTT support available | Yes |
| Protection | |
| Degree of protection (IP) | IP44 |
| Protection class according to IEC 61140 | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -20 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Measurements | |

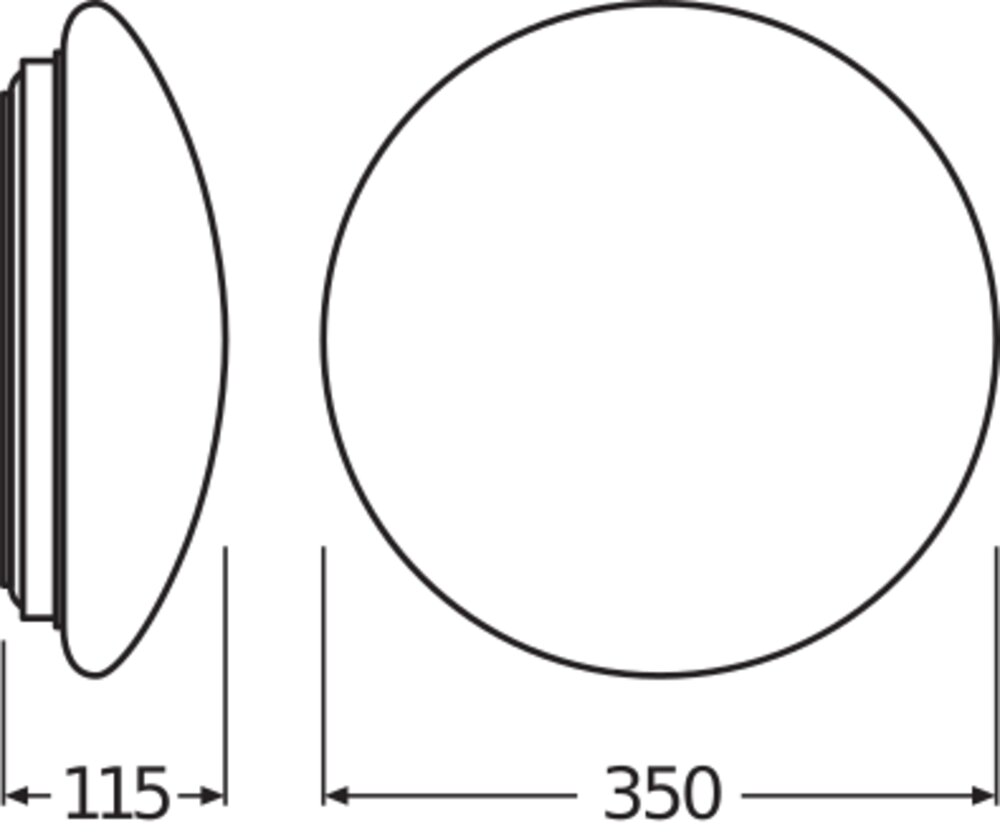

| Height/depth | 115.00 |
| Length | 350.00 |
| Outer diameter | 350.00 |
| Built-in width | - |
| Built-in height/depth | - |
| Built-in diameter | - |
| Built-in length | - |
| Width | - |
| Energy efficiency/environmental | |
| Photobiological safety according to EN 62471 | RG0 |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | No |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Communication | |
| Compatible with Casambi | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Performance | |
| Luminous intensity | - |
| Package 1 | |
| volume | 0,01788 |
| weight | 0,779 |
| length | 0,39 |
| width | 0,39 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4058075617940 |
| Package 2 | |
| volume | 0,105063 |
| weight | 4,912 |
| length | 0,63 |
| width | 0,41 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4058075617957 |
| Dimensions of product | |
| Weight | 0,41 |
