Descriere

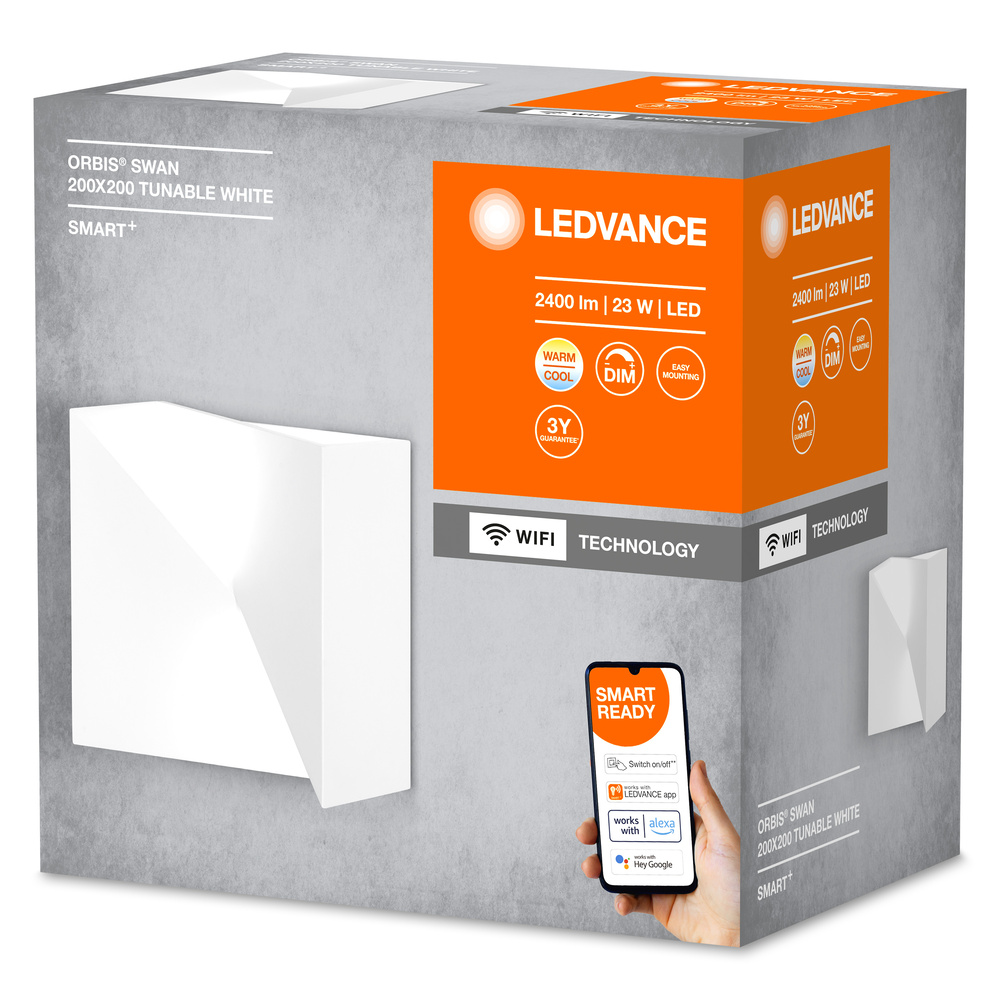

Aplică Smart decorativă, cu tehnologie wifi, TW și cu diminuare posibilă a intensității luminoase, în sus și în jos, se poate vopsi. Caracteristici produs: Se poate controla prin aplicația LEDVANCE SMART+ (cu minim Android 8.0 sau iOS 14.0). Este disponibil control vocal: Google Assistant sau Amazon Alexa. Temperatură reglabilă a culorii prin tehnologia Tunable White (alb reglabil): 3.000…6.500 K. Reglabil (cu posibilitate de diminuare a intensității luminoase). Protocol de rețea: Wi-Fi. Beneficii produs: Instalare ușoară și rapidă. Se poate vopsi. Zone de utilizare: Utilizări în spații interioare. Bucătării, camere de zi, camere pentru copii sau birouri la domiciliu. Echipamente / Accesorii: Suport de fixare inclus. Șuruburi de montare și dibluri incluse. Controlul prin aplicație sau controlul vocal necesită un sistem Smart home compatibil. Pentru control prin aplicația LEDVANCE SMART+, este nevoie de un smartphone sau o tabletă (cu minim Android 8.0 sau iOS 14.0). Recomandări privind siguranța: Toate conexiunile electrice trebuie efectuate de o persoană calificată.. Atenție, risc de electrocutare.. Verificați adecvarea peretelui-plafonului. Dacă nu sunteți siguri, solicitați sfatul unui profesionist..
Documente
Specificatii
| Mounting/installation | |
| Suitable for wall mounting | Yes |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for built-in mounting | No |
| Suitable for surface mounting | Yes |
| Application | |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for emergency lighting | No |
| Model/type | |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Type of grid | Matt |
| With control gear | Yes |
| Dimming potentiometer (integrated) | No |
| With movement sensor | No |
| With light sensor | No |
| With air slots | No |
| Type of wiring | Ending |
| Lamp holder | - |
| Other | |
| Suitable for number of light sources | 0 |
| Beam angle | 21-40° - Medium beam |
| Rated lifetime L70/B50 at 25 °C | 30000 |
| Impact strength | IK03 |
| Luminaire efficacy | 60 |
| Rated luminous flux according to IEC 62722-2-1 | 1300 |
| Light distributor | - |
| Total harmonic distortion | - |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Unified Glare Ratio (UGR) | - |
| Light outlet | - |
| Light distribution | - |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Colour | |
| Housing colour | White |
| Colour of light | White |
| Colour temperature | 3000 |
| Colour rendering index CRI | 80-89 |
| Colour of light adjustable | Continuously variable |
| Colour consistency (McAdam ellipse) | - |
| Material | |
| Material cover | Plastic, opal |
| Surface protection housing | - |
| Housing material | - |
| Electrical | |
| Voltage type | AC |
| Nominal voltage | 220 |
| Nominal current | 96 |
| Emergency power supply integrated | No |
| Max. system power | 23.00 |
| Power factor | 0.90 |
| Number of poles | 2 |
| Suitable for lamp power | - |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | - |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | - |
| Connection | |
| Exchangeable control gear | No |
| Connection type | Screwed terminal |
| Conductor cross section | - |
| Options | |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI-2 | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Constant light output (CLO) | No |
| IFTTT support available | Yes |
| Setting/control | |
| Dimming mains voltage modulation | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Operation by Bluetooth | No |
| Type of control gear | - |
| Energy efficiency/environmental | |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | E |
| Photobiological safety according to EN 62471 | RG0 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -20 |
| Measurements | |
| Width | 110.00 |
| Height/depth | 200.00 |
| Length | 200.00 |
| Built-in width | - |
| Built-in height/depth | - |
| Built-in diameter | - |
| Built-in length | - |
| Outer diameter | - |
| Communication | |
| Compatible with Casambi | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | Yes |
| Compatible with Amazon Alexa | Yes |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | - |
| Performance | |
| Luminous intensity | - |
| Package 1 | |
| volume | 0,011627 |
| weight | 2,248 |
| length | 0,26 |
| width | 0,17 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4058075574052 |
| Package 2 | |
| volume | 0,054142 |
| weight | 9,844 |
| length | 0,36 |
| width | 0,28 |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 4058075574069 |
| Dimensions of product | |
| Weight | 2,03 |
