Descriere
For area lighting applications. Caracteristici produs: Clasa de protecție: II. Durată de viață (L80-B10): până la 100.000 h (la 25 °C). Tip de protecție: IP66. Rezistență la impact: IK10. Distribuirea simetrică a luminii. Beneficii produs: Foarte versatil datorită CCT și treptelor de putere selectabile (Power Select - PS). Lumină cu licărire redusă datorită unui dispozitiv electronic special de control. Economii de energie datorită eficacității sistemului de până la 139 lm/W. Luminos, robust și durabil. Zone de utilizare: Înlocuitor pentru corpurile de iluminat cu lămpi cu vapori de mercur sau cu halogenuri metalice. Străzi. Instalații rezidențiale. Zone pietonale. Parcuri. Zone publice.
Documente
Fisa tehnica
Instructiuni
Alte surse
Specificatii
| Mounting/installation | |
| Mounting method | Post top |
| Model/type | |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Lamp holder | None |
| With control gear | Yes |
| Dimming potentiometer (integrated) | No |
| With radio control | No |
| With light regulation program control | No |
| Type of wiring | Ending |
| With light sensor | No |
| Other | |
| Suitable for number of light sources | 0 |
| Light distributor | Focal lens |
| Rated lifetime L70/B50 at 25 °C | 100000 |
| Impact strength | IK10 |
| Rated luminous flux according to IEC 62722-2-1 | 8200 |
| Luminaire efficacy | 139 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | - |
| Material | |
| Housing material | Aluminium |
| Surface protection | Powder coating |
| Material cover | Plastic, opal |
| Colour | |
| Housing colour | Grey |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Colour of light | White |
| Colour temperature | 3000 |
| Colour rendering index CRI | 80-89 |
| Electrical | |
| Voltage type | AC |
| Nominal voltage | 220 |
| Nominal current | 150 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | 7 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | 11 |
| Max. system power | 59 |
| Power factor | 0.90 |
| Number of poles | 2 |
| Suitable for lamp power | - |
| Setting/control | |
| Type of control gear | Electronic ballast |
| Dimming mains voltage modulation | No |
| Adjustable optics | No |
| Remote control | None |
| Operation by Bluetooth | No |
| Connection | |
| Exchangeable control gear | No |
| With connection cable | Yes |
| Connection type | Other |
| Type of connection for sensor/communication module | - |
| Conductor cross section | - |
| Options | |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming DSI | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Constant light output (CLO) | No |
| IFTTT support available | Yes |
| Energy efficiency/environmental | |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | C |
| Protection | |
| Degree of protection (IP) | IP66 |
| Protection class according to IEC 61140 | II |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Degree of protection (NEMA) | - |
| Measurements | |
| Suitable for spigot size | 48 |
| Cable length | 0.25 |

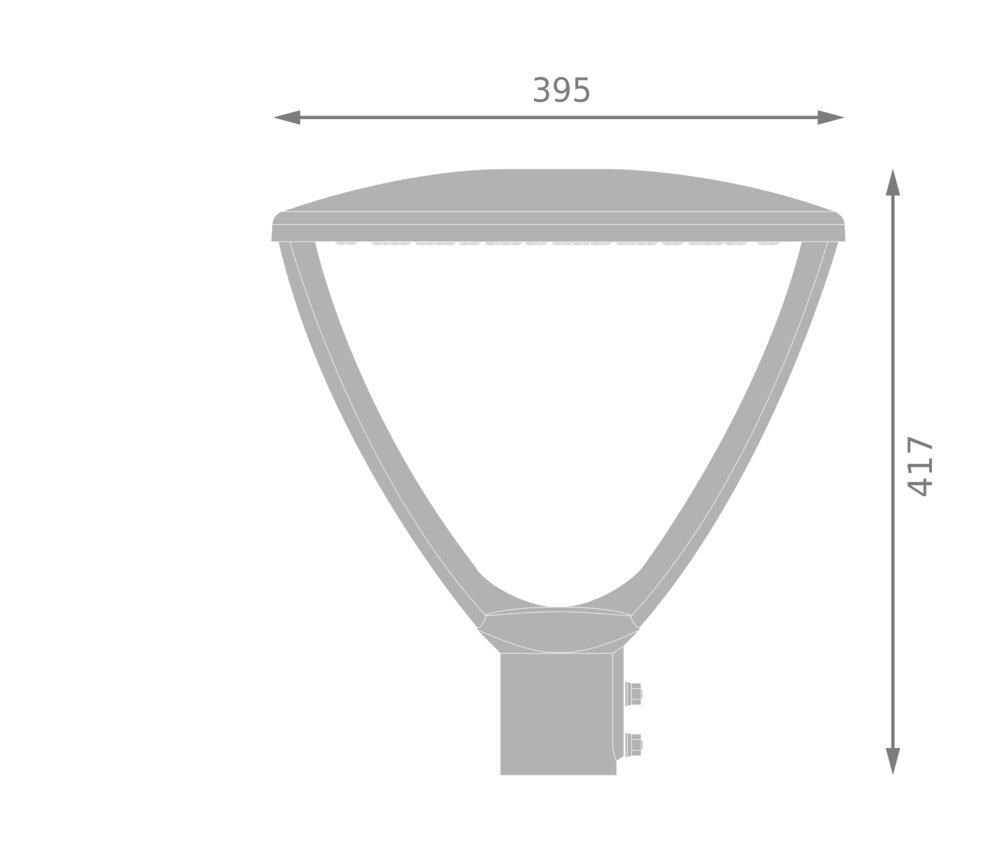

| Height/depth | 417.00 |
| Length | 395.00 |
| Diameter | 395.00 |
| Width | - |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -30 |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 0,04163 |
| weight | 4,62 |
| length | 0,44 |
| width | 0,44 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 4099854246791 |
| Dimensions of product | |
| Weight | 4,255 |
