Descriere

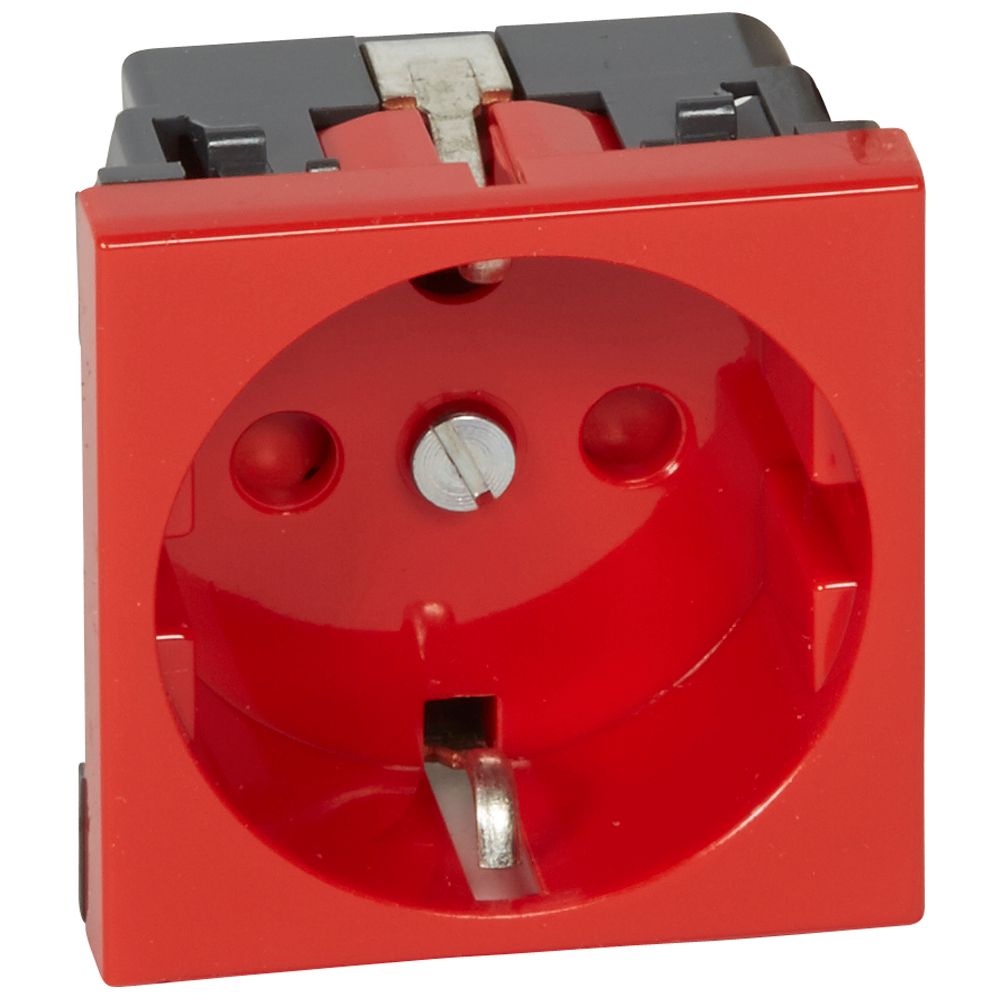

Socket outlet Mosaic - German std - 2P+E screw term. - 2 mod - red tamperproof
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Overvoltage protection | No |
| Nominal current | 16 |
| Special power supply | Additional safety power supply (red) |
| Nominal voltage | 250 |
| Max. current rating of USB power supply | - |
| Rated fault current | - |
| Number of phases | 1 |
| Options | |
| Rotated central insert | No |
| Eject-mechanism | No |
| Anti-bacterial treatment | No |
| Label space/information surface | No |
| Concurrently switching neutral conductor | No |
| Lockable | No |
| IFTTT support available | No |
| Socket outlets phase-separated | No |
| Material | |
| Material quality | Thermoplastic |
| Material | Plastic |
| Surface finishing | Glossy |
| Halogen free | Yes |
| Surface protection | Untreated |
| Mounting/installation | |
| Mounting method | Module frame |
| Mounting direction | - |
| Type of fastening | Snap mounting (engagement) |
| Insulated mounting | No |
| Connection | |
| Connection type | Screwed terminal |
| Number of ports USB-C | 0 |
| Number of ports USB-A | 0 |
| Number of active contacts (square) | 0 |
| Number of active contacts (flat) | 0 |
| Number of active contacts (round) | 2 |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP20 |
| Inflammability class of insulation material according to UL 94 | - |
| Model/type | |
| Number of modules (module system) | 2 |
| With hinged lid | No |
| Model | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of socket outlets switchable | 0 |
| Assembly arrangement | Modular device for domestic switching devices |
| With on/off switch | No |
| With orientation lighting | No |
| With function lighting | No |
| Number of socket outlets | 1 |
| With signal lamp | No |
| With built-in bluetooth speaker | No |
| With miniature fuse | No |
| Number of loop throughs | - |
| With enhanced contact protection | Yes |
| With loop through function | Yes |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| With Wi-Fi signal repeater | No |
| Measurements | |
| Min. depth of built-in installation box | 40 |
| Device depth | 40 |
| Device width | 45 |
| Device height | 45 |
| Device diameter | - |
| Other | |
| Imprint/indication | None |
| Impact strength | IK04 |
| Protective contact | Other |
| Frequency | 50 |
| Colour | |
| Metallic colour | No |
| RAL-number (similar) | 3020 |
| Colour | Red |
| Transparent | No |
| Colour of switch operator | Red |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Compliant with UK Building Regulations Part M | - |
| Package 1 | |
| volume | 0,00157 |
| weight | 0,412 |
| length | 0,056 |
| width | 0,097 |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 3414970655707 |
| Package 2 | |
| volume | 0,018443 |
| weight | 4,338 |
| length | 0,319 |
| width | 0,198 |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 3414970655714 |
| Package 3 | |
| volume | 0,924 |
| weight | 173,52 |
| length | 0,77 |
| width | 1,2 |
| qmax | 4000 |
| qmin | 4000 |
| um | PF |
| gtin | 3414970655738 |
| Dimensions of product | |
| Length | 0,045 |
| Width | 0,045 |
| Depth | 0,04 |
