Descriere

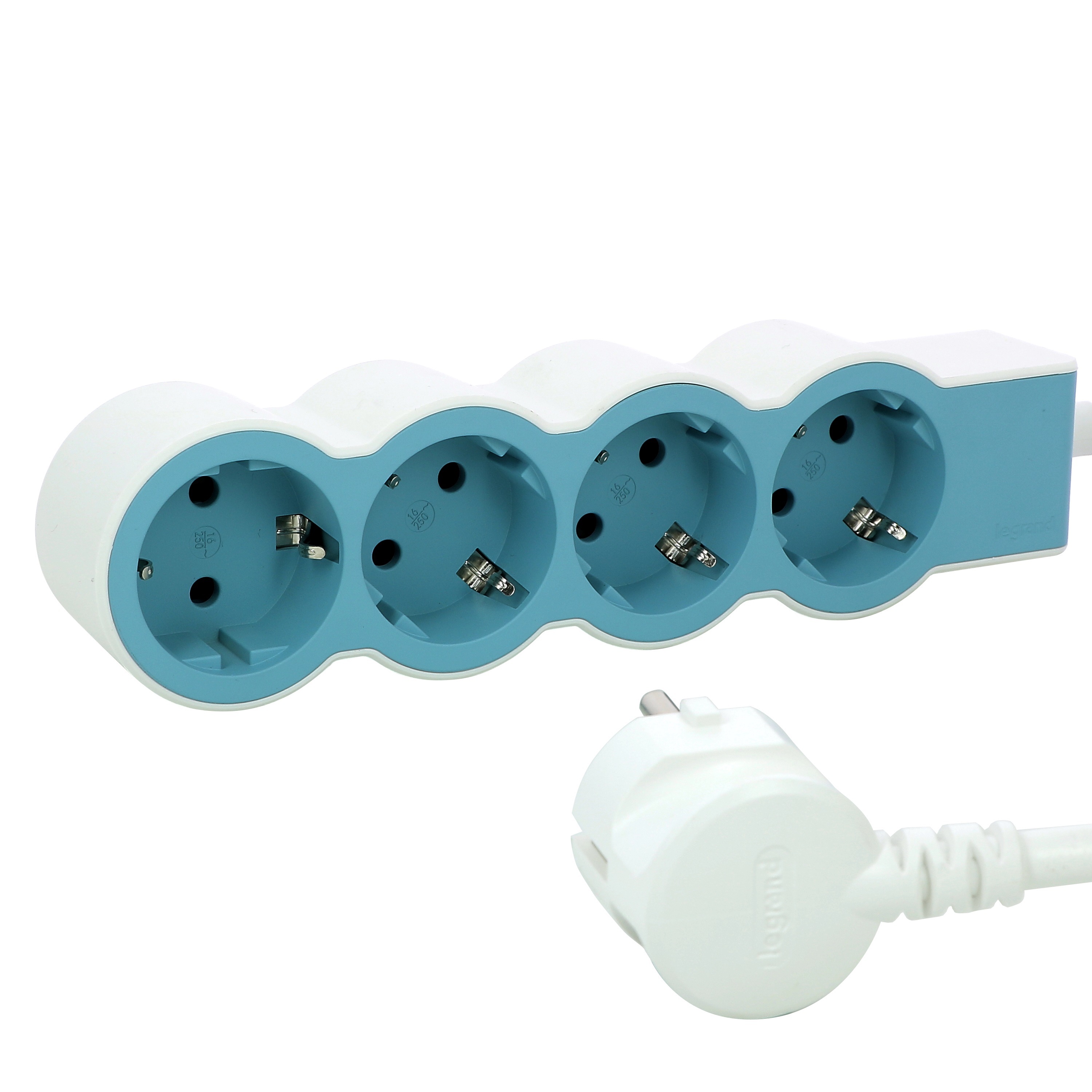

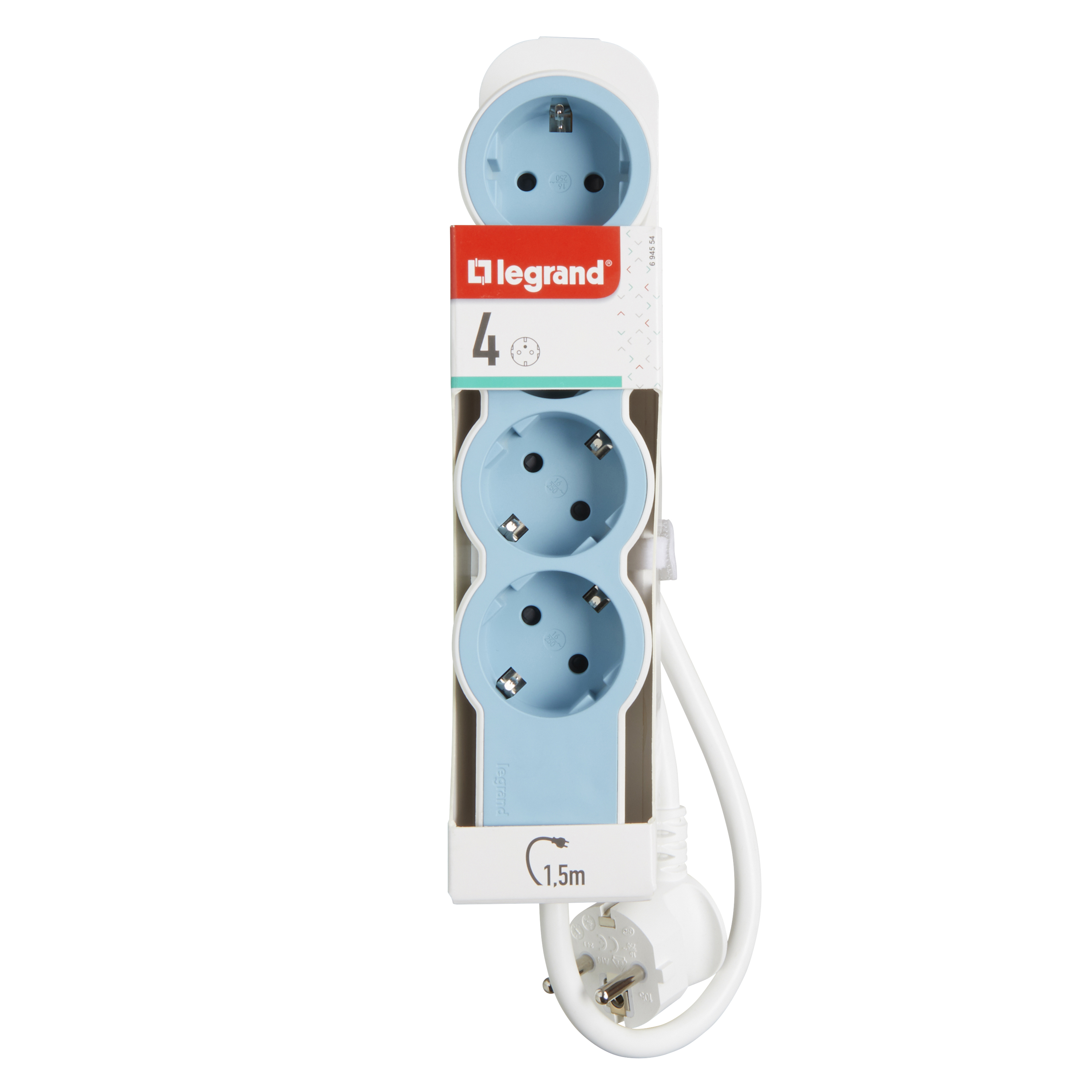

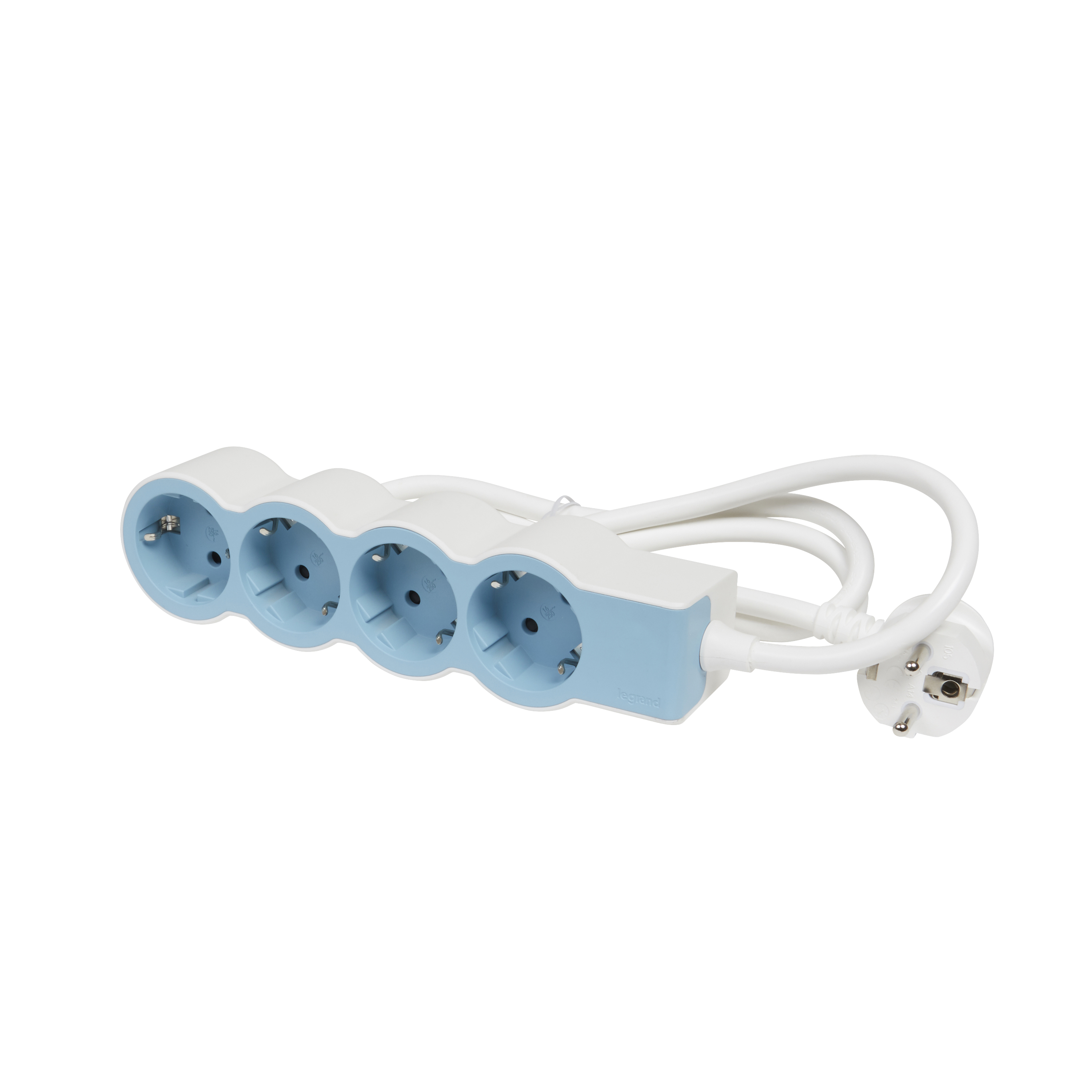

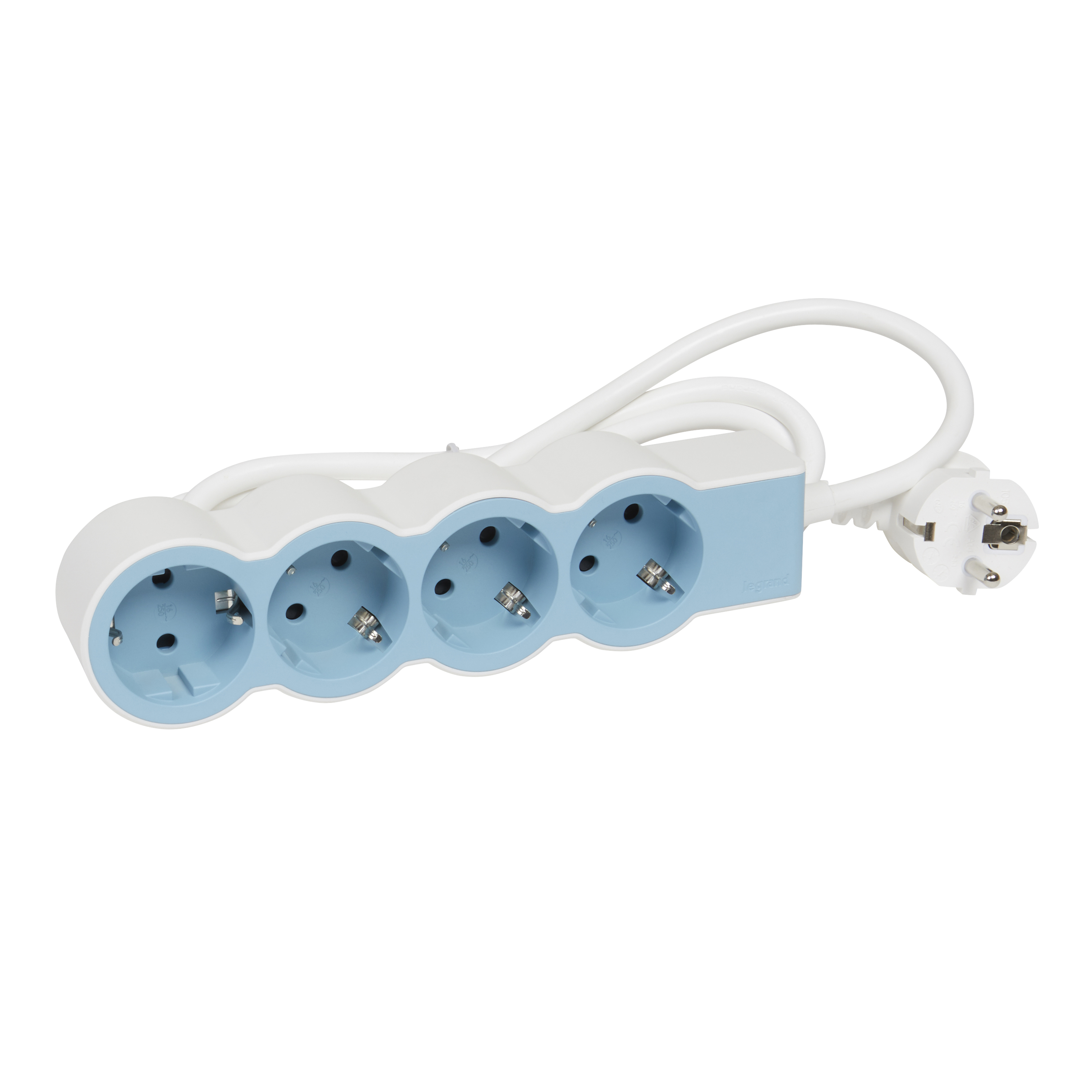

MOES SCH 4X2P+E STANDARD 1.5M 1.5MM2 WHITE/BLUE
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| Number of socket outlets Swiss standard type 25 | 0 |
| Number of socket outlets Swiss standard type 23 | 0 |
| Number of socket outlets CEE 7/16 (EURO) | 0 |
| Number of socket outlets Swiss standard type 15 | 0 |
| Number of socket outlets Swiss standard type 13 | 0 |
| Number of socket outlets Italian standard type P17 | 0 |
| Number of cold device socket outlets | 0 |
| Number of socket outlets Italian standard type Bipasso | 0 |
| Type of plug | Angled |
| Number of socket outlets British Standard BS 1363 | 0 |
| Number of socket outlets Danish standard (earthing pin, type K) | 0 |
| With cover | No |
| With on/off switch | No |
| Number of NEMA-outlets | 0 |
| Number of socket outlets Italian standard type P11 | 0 |
| Number of universal multi standard sockets | 0 |
| Number of socket outlets with protective contact CEE 7/5 (type E) | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 4 |
| Housing shape | Other |
| Number of other socket outlets | 0 |
| Number of socket outlets Italian standard type P30 | 0 |
| Number of socket outlets CEE 7/1 (no protective contact) | 0 |
| With miniature fuse | No |
| With enhanced contact protection | Yes |
| Electrical | |
| Overvoltage protection | No |
| Nominal current | 16 |
| Max. connected load | 3680 |
| Options | |
| Rotated central insert | Yes |
| Overcurrent protection | No |
| Anti-bacterial treatment | No |
| Residual current circuit breaker (RCCB) | No |
| IFTTT support available | No |
| Mains filter | No |
| Other | |
| Angle rotated central insert | - |
| Impact strength | IK04 |
| Material | |
| Material quality | Thermoplastic |
| Material | Plastic |
| Surface finishing | Matt |
| Halogen free | Yes |
| Surface protection | Untreated |
| Connection | |
| Type of mains connection | Plug with protective contact CEE 7/4 (type F) |
| Length of power cord | 1.5 |
| Number of USB connections | 0 |
| Directly pluggable (without power cord) | No |
| Core cross section | 1.5 |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Colour | |
| RAL-number (similar) | 9003 |
| Colour | White |
| Transparent | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| NEMA designation | None |
| Operating conditions | |
| Operating temperature | -5 |
| Package 1 | |
| volume | 0,001209 |
| weight | 0,419 |
| length | 0,076 |
| width | 0,056 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3414971945302 |
| Package 2 | |
| volume | 0,01802 |
| weight | 4,499 |
| length | 0,3 |
| width | 0,205 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 3414971945319 |
| Package 3 | |
| volume | 0,9 |
| weight | 143,968 |
| length | 0,75 |
| width | 1,2 |
| qmax | 320 |
| qmin | 320 |
| um | PF |
| gtin | 3414972025829 |
| Dimensions of product | |
| Length | 0,038 |
| Width | 0,055 |
| Depth | 0,21 |
