Descriere

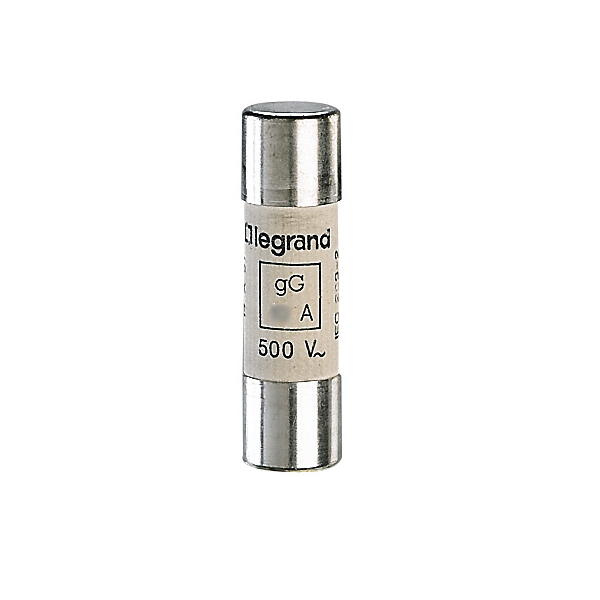

HRC cartridge fuse - cylindrical type gG 14 X 51 - 32 A - with indicator
Documente
Fisa tehnica
Specificatii
| Other | |
| Utilization category according to IEC 60269 | gG |
| Rated operating frequency | 42 |
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Top fuse status indicator |
| Electrical | |
| Voltage type | AC/DC |
| Rated voltage AC | - |
| Power loss at rated current | 3.6 |
| Breaking capacity at nominal voltage, AC | - |
| Rated current | 32 |
| Release characteristic | - |
| Rated voltage DC | - |
| Breaking capacity at nominal voltage, DC | - |
| Measurements | |
| Size | 14x51 mm |
| Package 1 | |
| volume | 0,000161 |
| weight | 0,204 |
| length | 0,11 |
| width | 0,019 |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 3414971540088 |
| Package 2 | |
| volume | 0,009294 |
| weight | 10,5 |
| length | 0,157 |
| width | 0,2 |
| qmax | 500 |
| qmin | 500 |
| um | CT |
| gtin | 3414971534933 |
| Package 3 | |
| volume | 0,384 |
| weight | 210 |
| length | 0,32 |
| width | 1,2 |
| qmax | 10000 |
| qmin | 10000 |
| um | PF |
| Dimensions of product | |
| Depth | 0,051 |
