Descriere

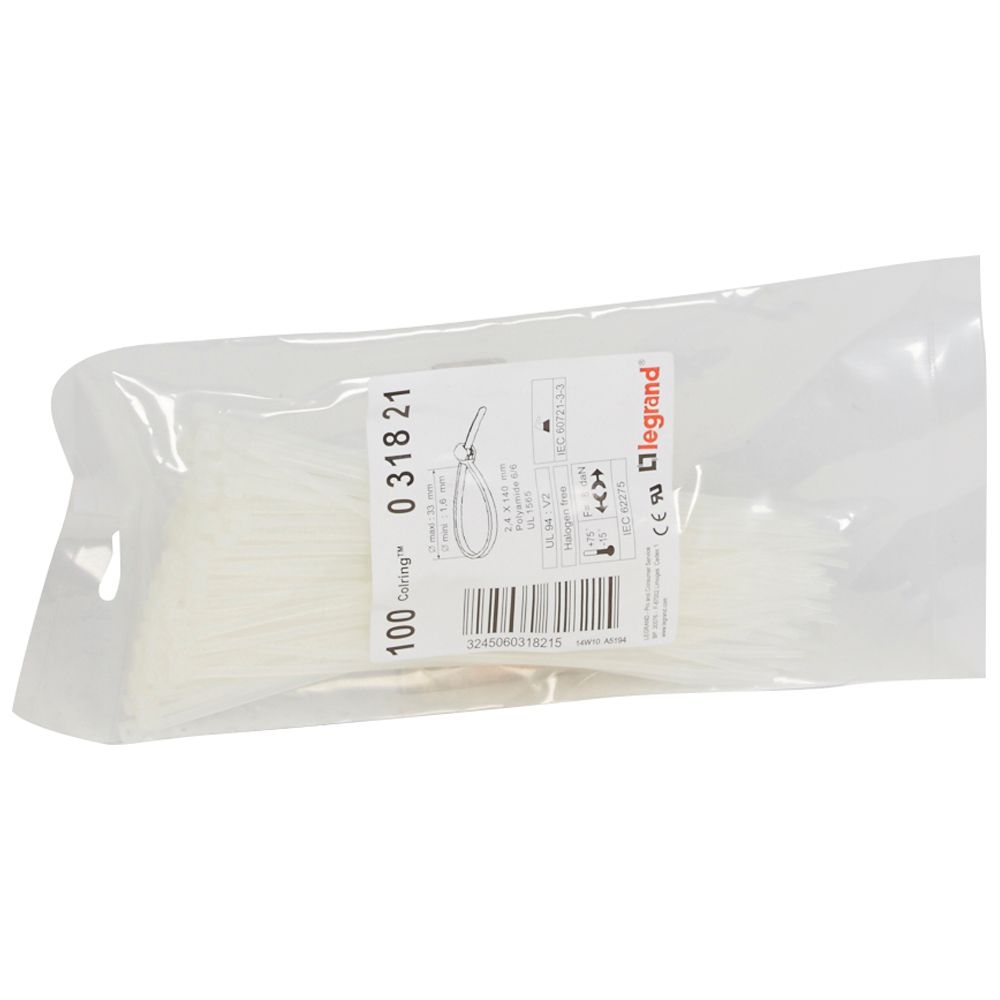

Cable tie Colring - w 2.4 mm - L 140 mm - sachet 100 pcs - colourless
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Approval/certification | |
| VG approval | - |
| MIL approval | - |
| UL approval | Yes |
| Measurements | |
| Length belt/tape/tie | 140 |
| Band width | 2.4 |
| Tie thickness | 1.1 |
| Bundle diameter | - |
| Options | |
| Fluorescent | - |
| Releasable closure | No |
| Protection | |
| Inflammability class of insulation material according to UL94 | - |
| Material | |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Polyamide (PA) |
| Surface protection | Untreated |
| UV-stable according to ASTM D6779 | No |
| Mounting/installation | |
| Type of fastening | None |
| Mounting temperature | -10 |
| Other | |
| Band closure | Plastic lip/-cam |
| Colour | |
| Transparent | Yes |
| Colour | Colourless |
| Application | |
| Detectable | - |
| Model/type | |
| Model | Internal toothing |
| Text strip | None |
| Operating conditions | |
| Operating temperature | -15 |
| Performance | |
| Min. tensile strength | 80 |
| Package 1 | |
| volume | 0,000355 |
| weight | 0,058 |
| length | 0,022 |
| width | 0,095 |
| qmax | 100 |
| qmin | 100 |
| um | BX |
| gtin | 3414971341920 |
| Package 2 | |
| volume | 0,013794 |
| weight | 2,764 |
| length | 0,233 |
| width | 0,2 |
| qmax | 4000 |
| qmin | 4000 |
| um | CT |
| gtin | 3414971341937 |
| Package 3 | |
| volume | 1,8732 |
| weight | 331,68 |
| length | 1,561 |
| width | 1,2 |
| qmax | 480000 |
| qmin | 480000 |
| um | PF |
| gtin | 3414973214505 |
| Dimensions of product | |
| Length | 0,0024 |
| Width | 0,14 |
| Depth | 0,0011 |
