Descriere

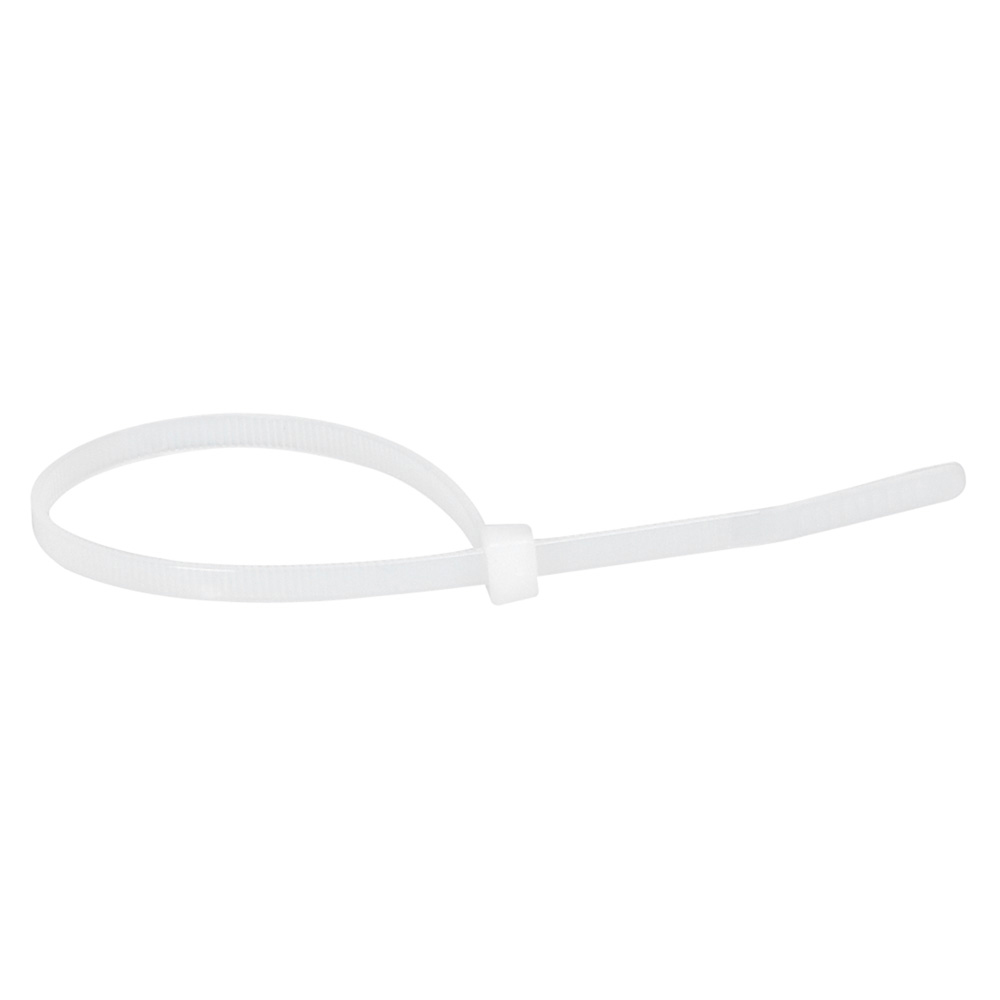

Cable tie Colring - w 3.5 mm - L 180 mm - blister 100 pcs - colourless
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Approval/certification | |
| VG approval | - |
| MIL approval | - |
| UL approval | Yes |
| Measurements | |
| Length belt/tape/tie | 180 |
| Band width | 3.5 |
| Tie thickness | 1.2 |
| Bundle diameter | - |
| Options | |
| Fluorescent | - |
| Releasable closure | No |
| Protection | |
| Inflammability class of insulation material according to UL94 | - |
| Material | |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Polyamide (PA) |
| Surface protection | Untreated |
| UV-stable according to ASTM D6779 | No |
| Mounting/installation | |
| Type of fastening | None |
| Mounting temperature | -10 |
| Other | |
| Band closure | Plastic lip/-cam |
| Colour | |
| Transparent | Yes |
| Colour | Colourless |
| Application | |
| Detectable | - |
| Model/type | |
| Model | Internal toothing |
| Text strip | None |
| Operating conditions | |
| Operating temperature | -40 |
| Performance | |
| Min. tensile strength | 130 |
| Package 1 | |
| volume | 0,00135 |
| weight | 0,093 |
| length | 0,25 |
| width | 0,09 |
| qmax | 100 |
| qmin | 100 |
| um | BG |
| gtin | 3414970757463 |
| Package 2 | |
| volume | 0,010925 |
| weight | 1,026 |
| length | 0,115 |
| width | 0,25 |
| qmax | 1000 |
| qmin | 1000 |
| um | BX |
| gtin | 3414970953704 |
| Package 3 | |
| volume | 0,062119 |
| weight | 4,68 |
| length | 0,261 |
| width | 0,398 |
| qmax | 4000 |
| qmin | 4000 |
| um | CT |
| gtin | 3414970438508 |
| Package 4 | |
| volume | 2,0772 |
| weight | 140,4 |
| length | 1,731 |
| width | 1,2 |
| qmax | 120000 |
| qmin | 120000 |
| um | PF |
| gtin | 3414971239432 |
| Dimensions of product | |
| Length | 0,0035 |
| Width | 0,18 |
| Depth | 0,0012 |
