Descriere

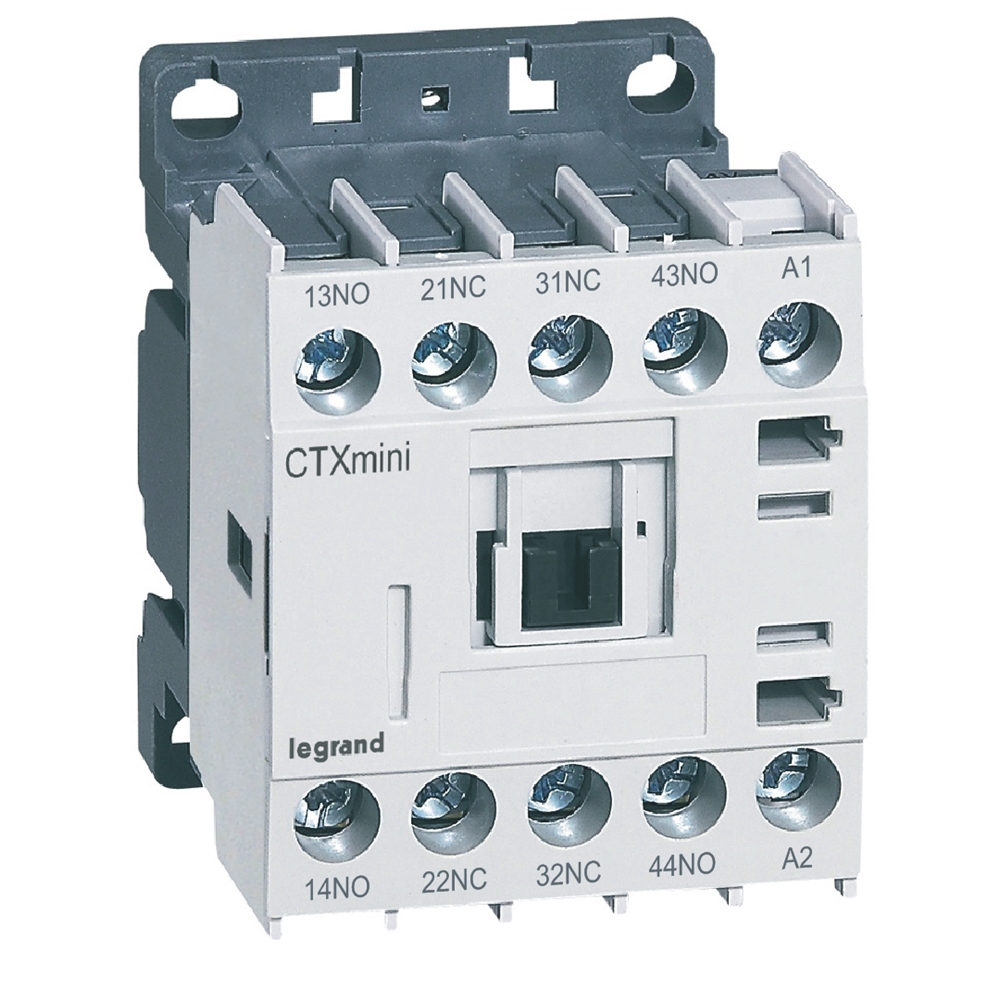

CTX³ control relay 2 NO + 2 NC 230 V~
Documente
Fisa tehnica
Instructiuni
Specificatii
| Model/type | |
| With LED indication | No |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Number of auxiliary contacts as normally open contact | 2 |
| Interface | Yes |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally closed contact, delayed switching | 0 |
| Number of auxiliary contacts as normally open contact, leading | 0 |
| Electrical | |
| Rated control supply voltage DC | - |
| Operating voltage AC 50 Hz | - |
| Rated operation current | - |
| Operating voltage AC 60 Hz | - |
| Operating voltage DC | - |
| Rated operation current Ie, 400 V | 1.9 |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | - |
| Rated switch current | - |
| Rated control supply voltage AC 50 Hz | 195.5 |
| Rated control supply voltage AC 60 Hz | 195.5 |
| Measurements | |
| Height | - |
| Depth | - |
| Width | - |
| Mounting/installation | |
| Mounting method | DIN-rail/screw |
| Application | |
| Suitable for manual operation | Yes |
| Package 1 | |
| volume | 0,000218 |
| weight | 0,196 |
| length | 0,067 |
| width | 0,065 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3414970407788 |
| Package 2 | |
| volume | 0,015163 |
| weight | 10,184 |
| length | 0,164 |
| width | 0,345 |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 3414970527288 |
| Package 3 | |
| volume | 0,924 |
| weight | 244,416 |
| length | 0,77 |
| width | 1,2 |
| qmax | 1200 |
| qmin | 1200 |
| um | PF |
| gtin | 3414970625076 |
