Descriere

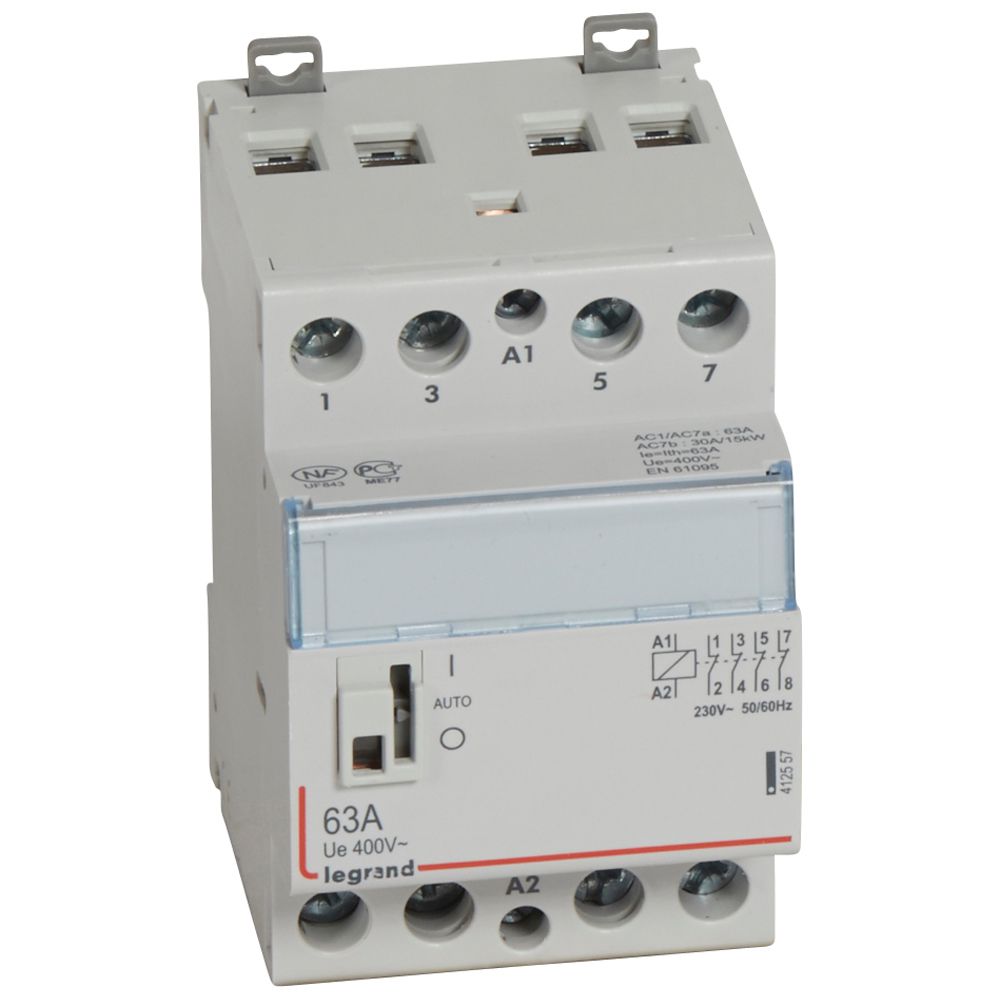

Power contactor CX³ - with 230 V~ coll and handle - 4P - 400 V~ - 63 A - 2 N/C
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Max. load fluorescent lamp | 4700 |
| Rated operation current | 63 |
| Max. incandescent lamp load | 8000 |
| Max. load fluorescent lamp (parallel compensated) | 1700 |
| Max. load fluorescent lamp (Duo circuit) | 5000 |
| Voltage type (excitation voltage) | AC |
| Voltage type (operating voltage) | AC |
| Rated operating voltage | 400 |
| Rated excitation voltage | 195 |
| Protection | |
| Degree of protection (IP) | IP2X |
| Measurements | |
| Width in number of modular spacings | 3 |
| Built-in depth | 44 |
| Options | |
| Additional equipment possible | Yes |
| Hum-free | - |
| Connection | |
| Number of contacts as normally closed contact | 4 |
| Number of contacts as normally open contact | 0 |
| Setting/control | |
| Slider for hand switch | Yes |
| Approval/certification | |
| Utilization category according to EN IEC 60947-4-1 | - |
| Model/type | |
| With day/night function | - |
| Package 1 | |
| volume | 0,000521 |
| weight | 0,349 |
| length | 0,089 |
| width | 0,058 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064125574 |
| Package 2 | |
| volume | 0,01501 |
| weight | 7,242 |
| length | 0,125 |
| width | 0,304 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 3414971667099 |
| Package 3 | |
| volume | 0,3468 |
| weight | 72,42 |
| length | 0,289 |
| width | 1,2 |
| qmax | 200 |
| qmin | 200 |
| um | PF |
| gtin | 3414971667105 |
| Dimensions of product | |
| Length | 0,094 |
| Width | 0,068 |
| Depth | 0,0534 |
