Descriere

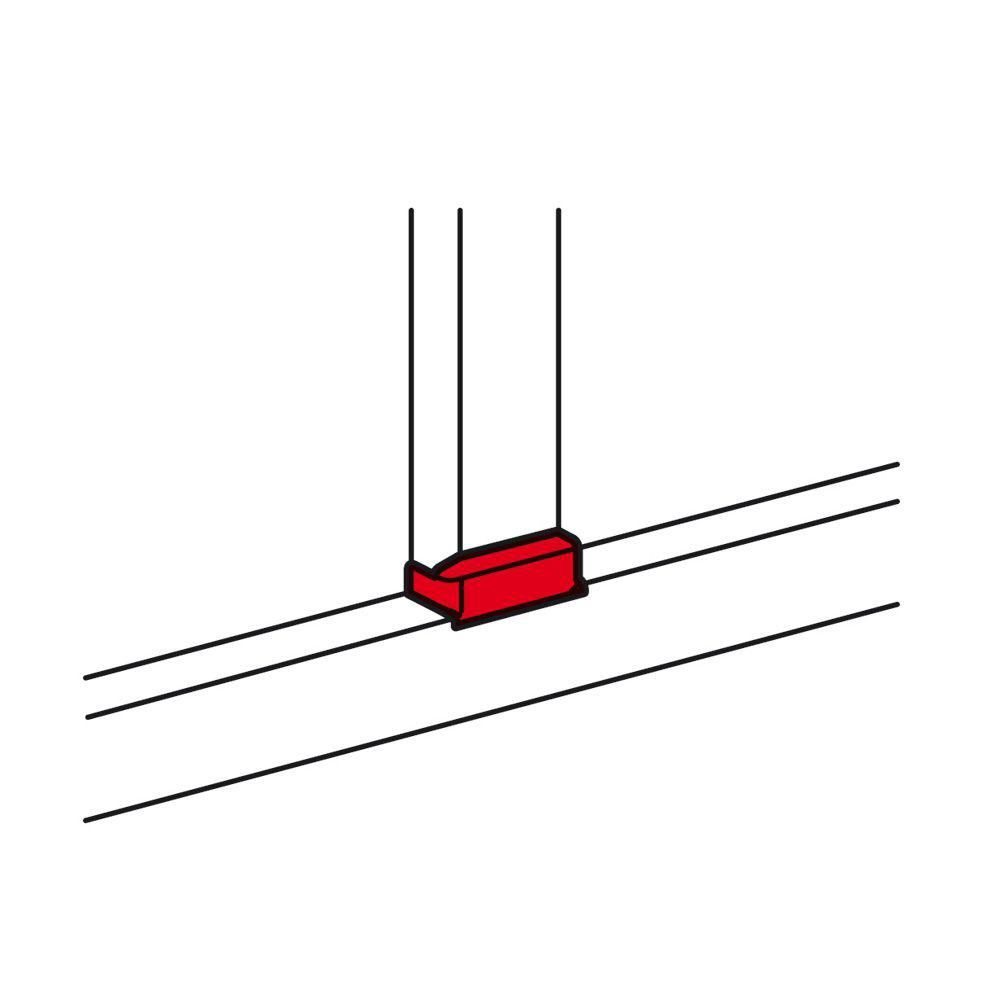

Flat junction - for DLP fully assembled 50x105 to width 105 mm
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Measurements | |
| Cover width 1 | 65 |
| Width branch | 105 |
| Cover width 3 | - |
| Cover width 2 | - |
| Depth | 50 |
| Width | 105 |
| Model/type | |
| With protective foil | No |
| Model | Other |
| Number of covers | 1 |
| With cable fixing clip | No |
| Protection | |
| Degree of protection (IP) | IP40 |
| Material | |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Other |
| Surface protection | Untreated |
| Options | |
| Bottom perforation | No |
| Anti-bacterial treatment | No |
| Symmetric | Yes |
| Other | |
| Impact strength | IK07 |
| Mounting/installation | |
| Mounting method cover | Spanned |
| Operating conditions | |
| Operating temperature | -5 |
| Colour | |
| Colour | White |
| RAL-number | 9003 |
| Connection | |
| With duct connector | Yes |
| Package 1 | |
| qmax | 1 |
| qmin | 1 |
| um | BG |
| gtin | 3245060107406 |
| Package 2 | |
| volume | 0,00897 |
| weight | 0,31 |
| length | 0,115 |
| width | 0,2 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 3414971072657 |
| Package 3 | |
| volume | 0,052881 |
| weight | 2,059 |
| length | 0,225 |
| width | 0,395 |
| qmax | 25 |
| qmin | 25 |
| um | CT |
| gtin | 3414971072664 |
| Package 4 | |
| volume | 2,0604 |
| weight | 72,065 |
| length | 1,717 |
| width | 1,2 |
| qmax | 875 |
| qmin | 875 |
| um | PF |
| gtin | 3414971072671 |
| Dimensions of product | |
| Length | 0,11 |
| Width | 0,054 |
| Depth | 0,054 |
