Descriere

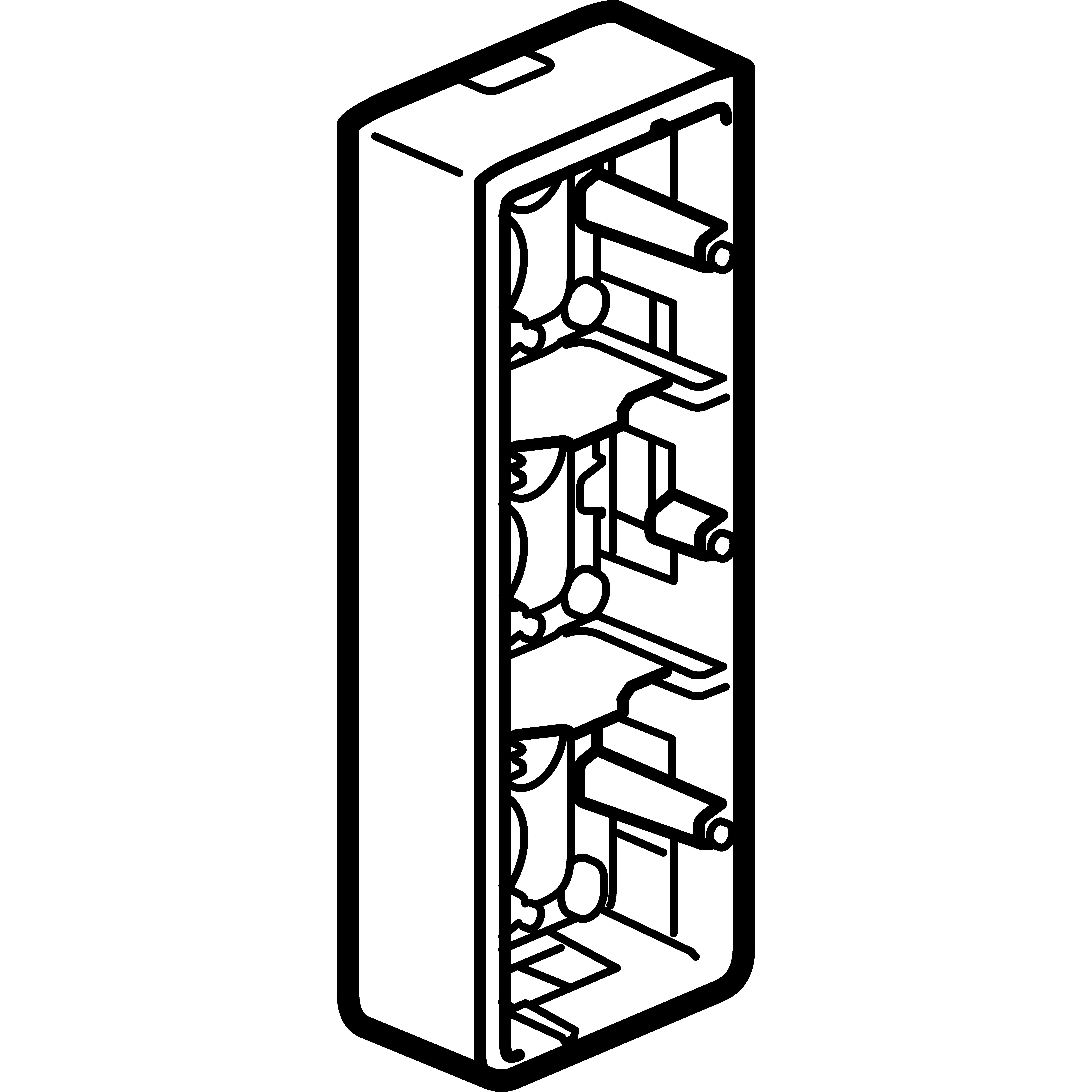

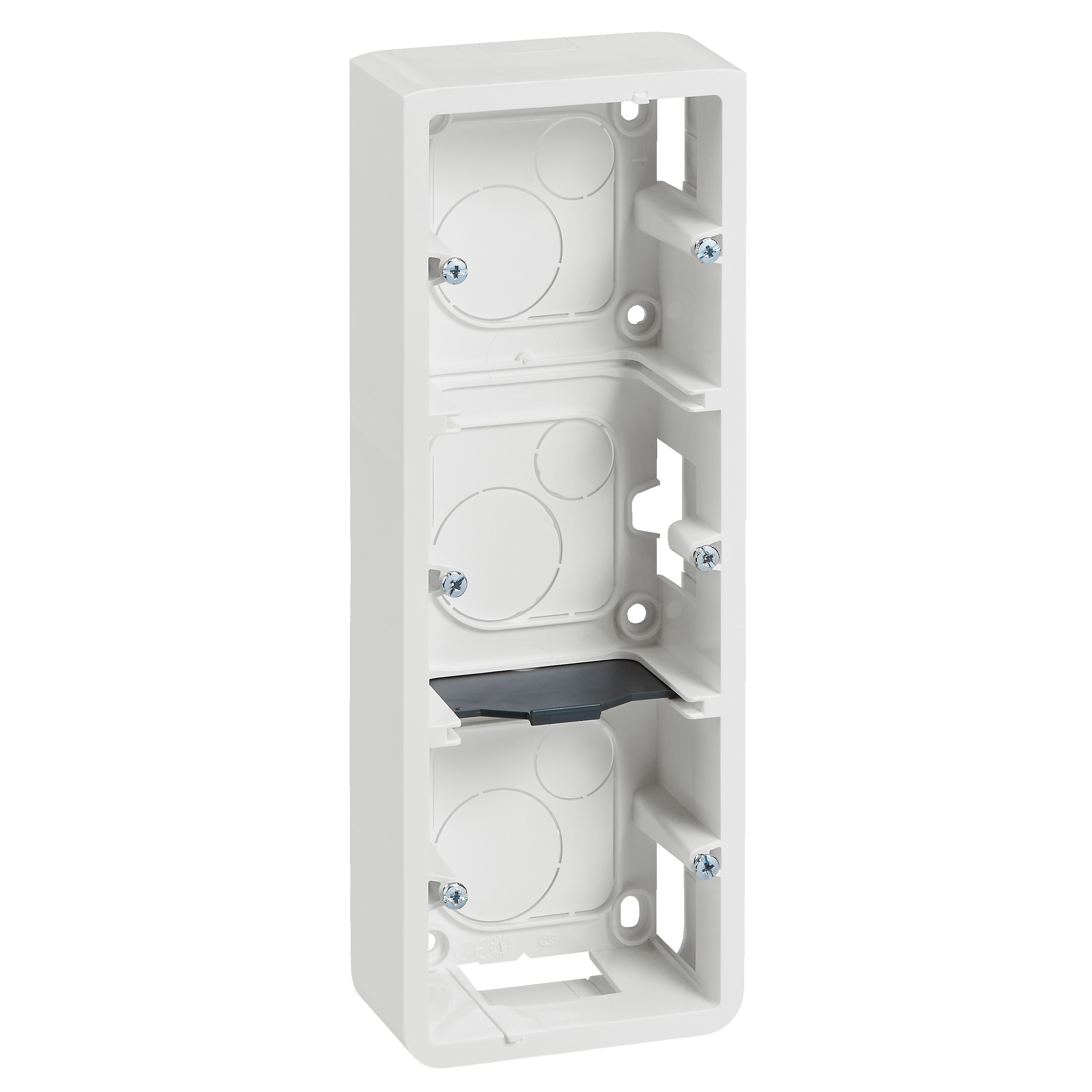

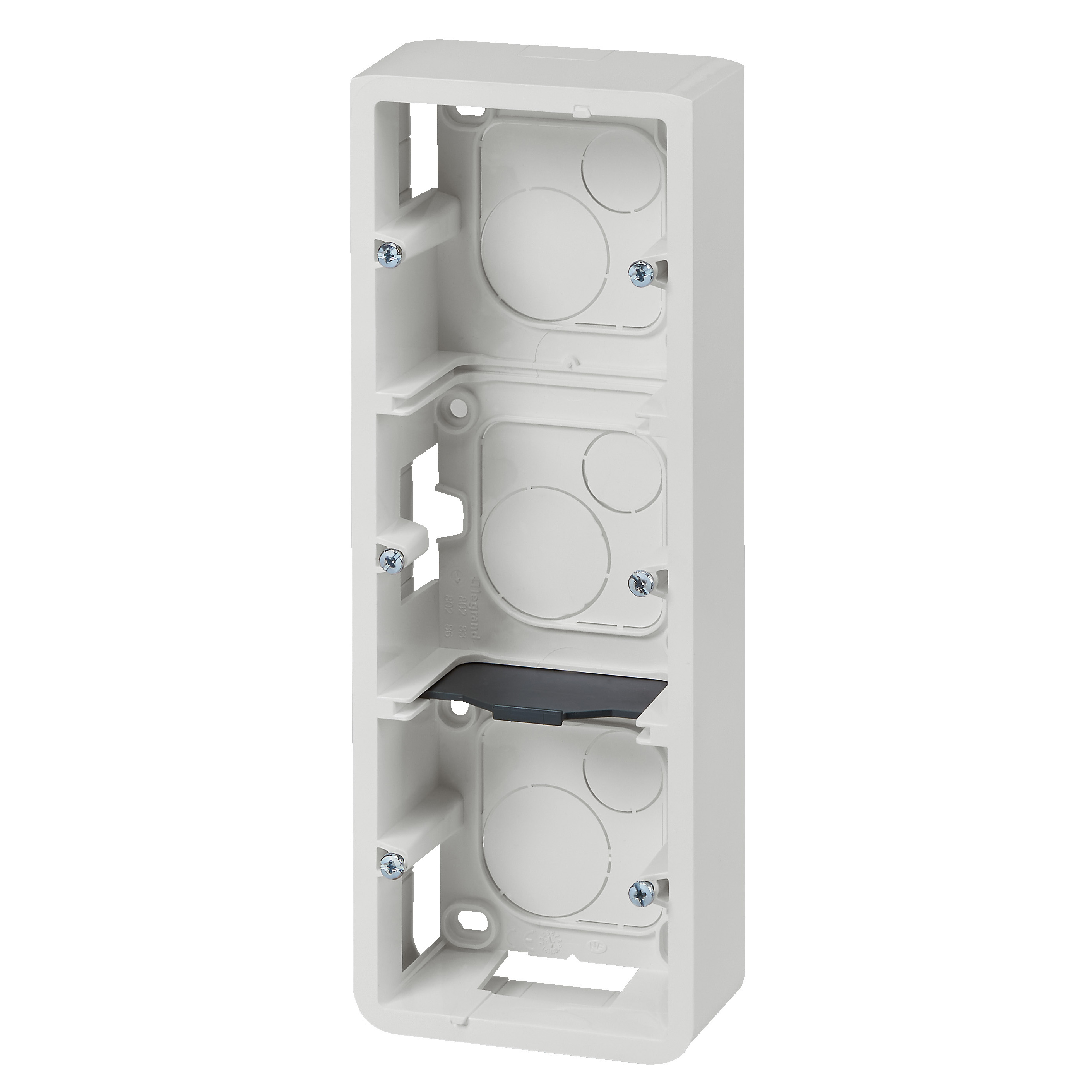

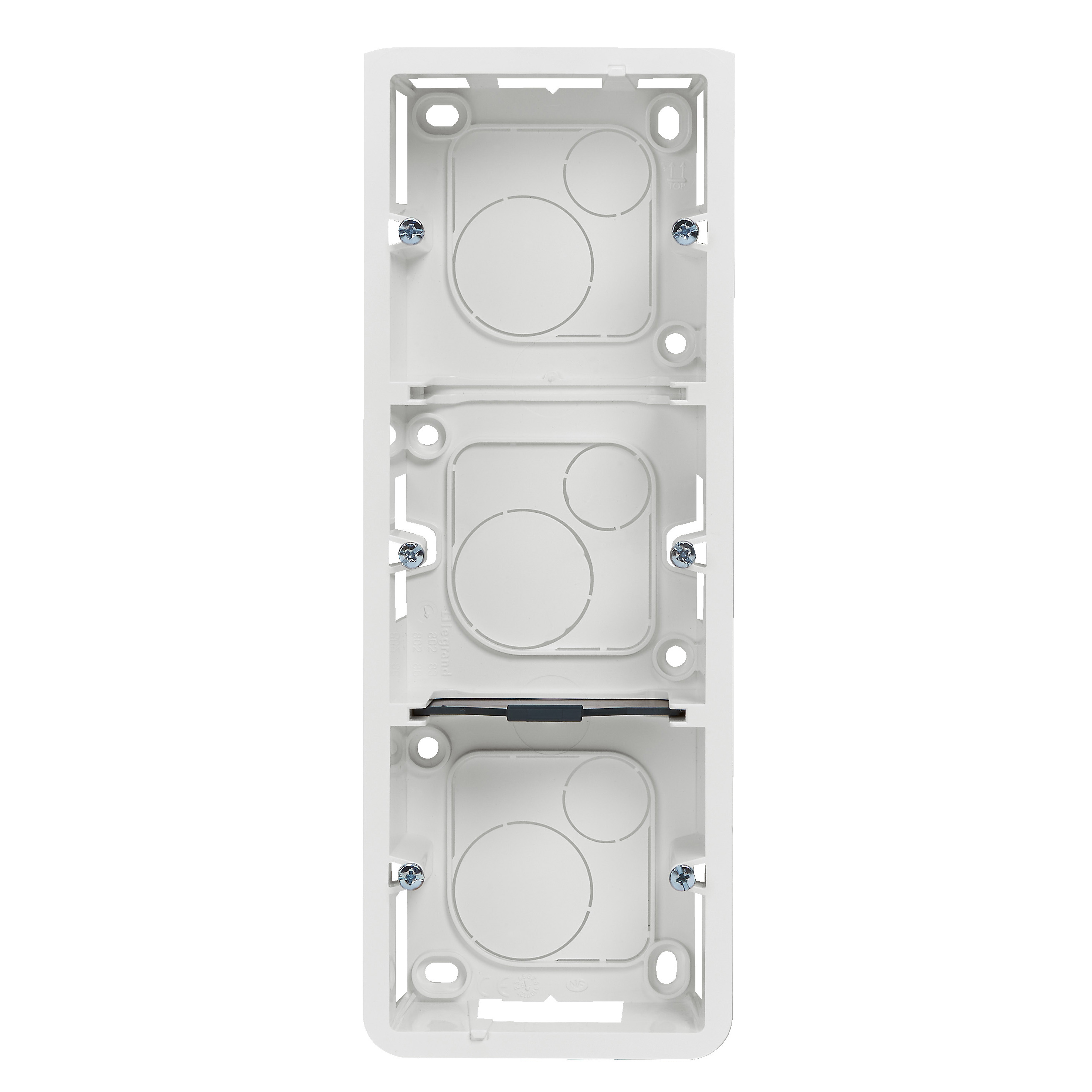

Surface-mounting box Mosaic - 3 x 2 vertical modules - depth 40 mm
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| With duct entry | Yes |
| Number of modules (module system) | 6 |
| With cover frame | No |
| With installation tube entry | - |
| Number of units | 1 |
| Shape | Rectangular |
| With screw gland entry | No |
| Number of earthing terminals | - |
| Desktop device | - |
| Assembly arrangement | Surface mounted frame |
| With cable entry | Yes |
| Measurements | |
| Height | 83 |
| Suitable for switching devices with max. width | - |
| Suitable for switching devices with max. height | - |
| Suitable for switching devices with max. depth | - |
| Diameter | - |
| Depth | 40 |
| Width | 225 |
| Protection | |
| Shock resistant | Yes |
| Degree of protection (IP) | IP2X |
| Connection | |
| Number of inlets | - |
| Inlet from the rear | - |
| Material | |
| Material | Plastic |
| Surface finishing | Glossy |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Application | |
| Suitable for modular domestic switching devices | Yes |
| Colour | |
| Transparent | No |
| RAL-number (similar) | 9003 |
| Colour | White |
| Mounting/installation | |
| Cross-trunking mounting | - |
| Mounting direction | Vertical |
| Suitable for mounting over existing flush-mounted box | - |
| Approval/certification | |
| Compliant with BS 4662 | - |
| Package 1 | |
| volume | 0,006572 |
| weight | 0,745 |
| length | 0,236 |
| width | 0,118 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 3414971509047 |
| Package 2 | |
| volume | 0,05763 |
| weight | 6,3 |
| length | 0,245 |
| width | 0,485 |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 3414971381667 |
| Package 3 | |
| volume | 1,9596 |
| weight | 151,2 |
| length | 1,633 |
| width | 1,2 |
| qmax | 960 |
| qmin | 960 |
| um | PF |
| gtin | 3414971381674 |
| Dimensions of product | |
| Length | 0,083 |
| Width | 0,225 |
| Depth | 0,04 |
