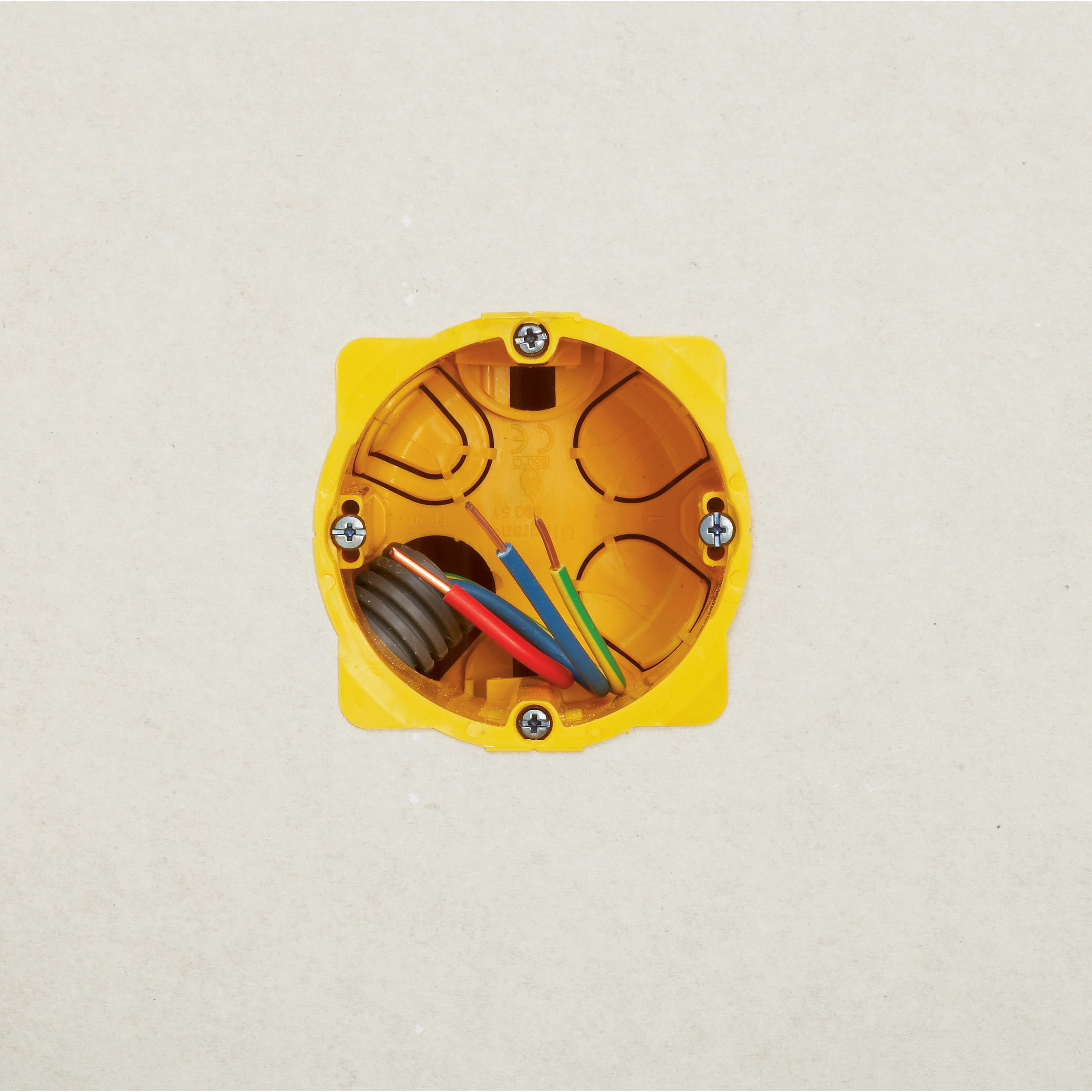

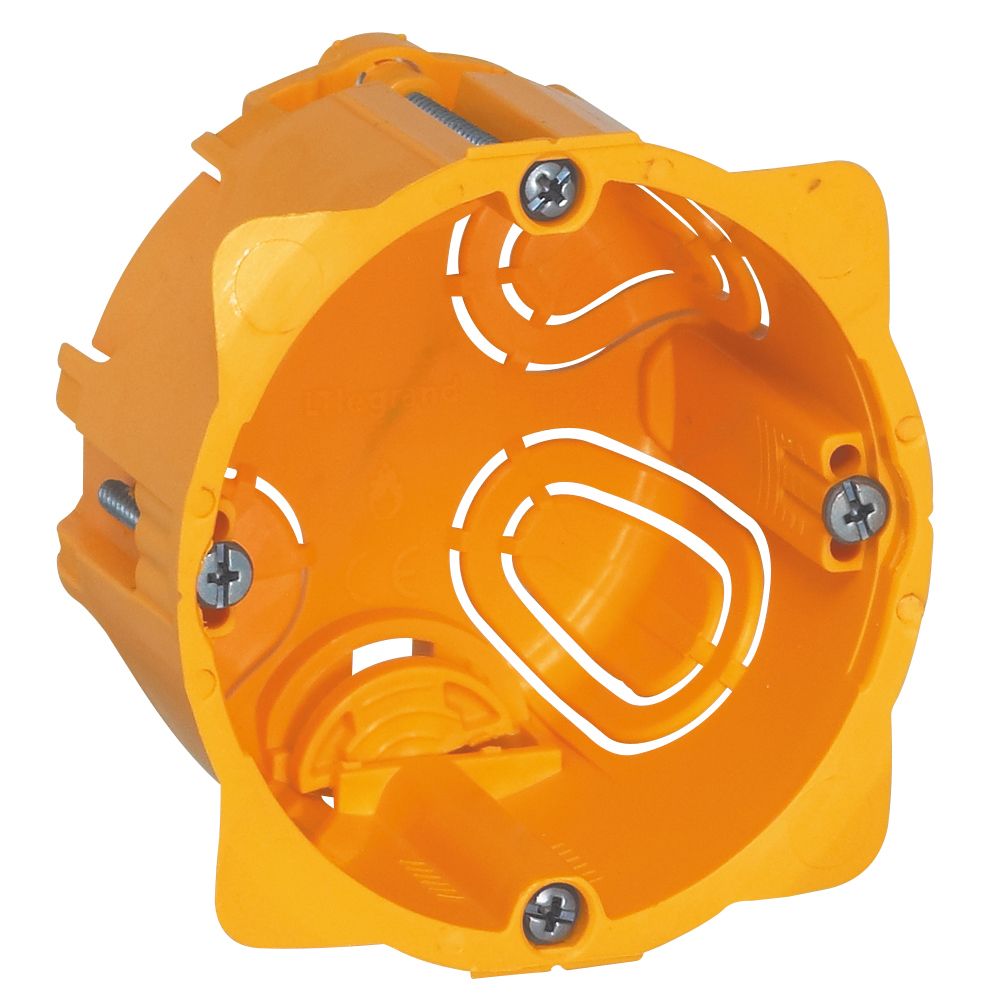

Doza Batibox cu un singur post - perete uscat - surub/gheara - 1 post - adancime 60
Cod produs: 080061
Descriere
BATIBOX CL.SECH.1POSTE P.60MM
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Connection | |
| Number of inlets | 4 |
| Inlet from the rear | Yes |
| Max. conductor cross section | - |
| Measurements | |
| For tube diameter | Other |
| Inner depth | 60 |
| Depth | - |
| Suitable for cable diameter | 16 |
| Width | 71 |
| Diameter | 67 |
| Suitable for wall/board thickness | - |
| Length | 71 |
| Options | |
| Pipe locking | No |
| Sealable | No |
| Clamp position fixed | No |
| Air tight | No |
| Couplable | - |
| Housing feed-through by step membrane | - |
| Housing feed-through by nozzle | - |
| Pipe locking optional | - |
| Provided with revolving ring | - |
| Housing feed-through by seal membrane | - |
| Housing feed-through by break-out opening | - |
| Mounting/installation | |
| Mounting method | Hollow wall |
| Number of non-adjustable device fixing lugs | - |
| Number of adjustable device fixing lugs | - |
| Luminaire hook mounting | No |
| Mounting switching equipment | Screw or spread out |
| Model/type | |
| Number of included spouts | - |
| Cover model | None |
| Equipped with | None |
| Shape | Round |
| Model | Single |
| Number of poles of the clamp | 0 |
| Transparent cover | - |
| With screws | Yes |
| Construction type | Device connection box (round/square) |
| With partition panel | - |
| With screening | No |
| Protection | |
| Circuit integrity | None |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Colour | |
| Colour | Yellow |
| Other | |
| Cover attachment | Other |
| Nozzle | None |
| For number of device inserts | 2 |
| Material | |
| Material | Plastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Application | |
| Special application | - |
| Approval/certification | |
| Compliant with BS 4662 | - |
| Package 1 | |
| volume | 0,009294 |
| weight | 0,789 |
| length | 0,157 |
| width | 0,2 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 3414971157309 |
| Package 2 | |
| volume | 0,7608 |
| weight | 47,34 |
| length | 0,634 |
| width | 1,2 |
| qmax | 1200 |
| qmin | 1200 |
| um | PF |
| Dimensions of product | |
| Length | 0,06 |
| Width | 0,071 |
| Depth | 0,071 |
