Descriere

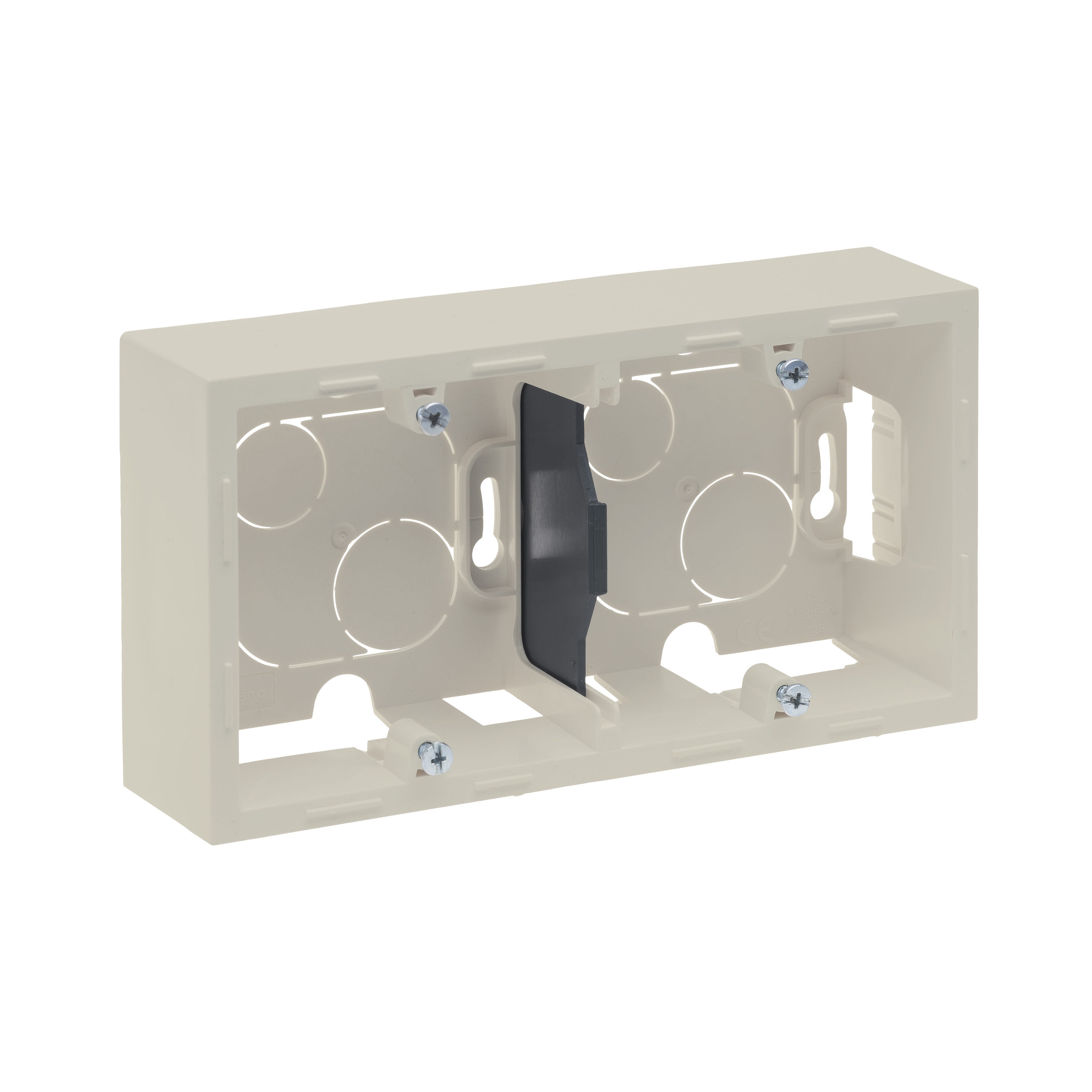

SURFACE MOUNTING BOX 2-GANG IVORY
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| With duct entry | Yes |
| Number of modules (module system) | 2 |
| With cover frame | No |
| With installation tube entry | - |
| Number of units | 1 |
| Shape | Rectangular |
| With screw gland entry | No |
| Number of earthing terminals | - |
| Desktop device | - |
| Assembly arrangement | Surface mounted box |
| With cable entry | Yes |
| Measurements | |
| Height | 83.95 |
| Suitable for switching devices with max. width | - |
| Suitable for switching devices with max. height | - |
| Suitable for switching devices with max. depth | - |
| Diameter | - |
| Depth | 43.3 |
| Width | 154.95 |
| Protection | |
| Shock resistant | Yes |
| Degree of protection (IP) | IP2X |
| Connection | |
| Number of inlets | - |
| Inlet from the rear | - |
| Material | |
| Material | Plastic |
| Surface finishing | Glossy |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Application | |
| Suitable for modular domestic switching devices | No |
| Colour | |
| Transparent | No |
| RAL-number (similar) | 1013 |
| Colour | Beige |
| Mounting/installation | |
| Cross-trunking mounting | - |
| Mounting direction | Horizontal and vertical |
| Suitable for mounting over existing flush-mounted box | - |
| Approval/certification | |
| Compliant with BS 4662 | - |
| Package 1 | |
| volume | 0,004047 |
| weight | 0,558 |
| length | 0,106 |
| width | 0,166 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 3414972236195 |
| Package 2 | |
| volume | 0,037125 |
| weight | 3,748 |
| length | 0,2 |
| width | 0,375 |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 3414972145763 |
| Package 3 | |
| volume | 0,4356 |
| weight | 22,488 |
| length | 0,363 |
| width | 1,2 |
| qmax | 180 |
| qmin | 180 |
| um | PF |
| Dimensions of product | |
| Length | 0,08395 |
| Width | 0,15495 |
| Depth | 0,0433 |
