Descriere

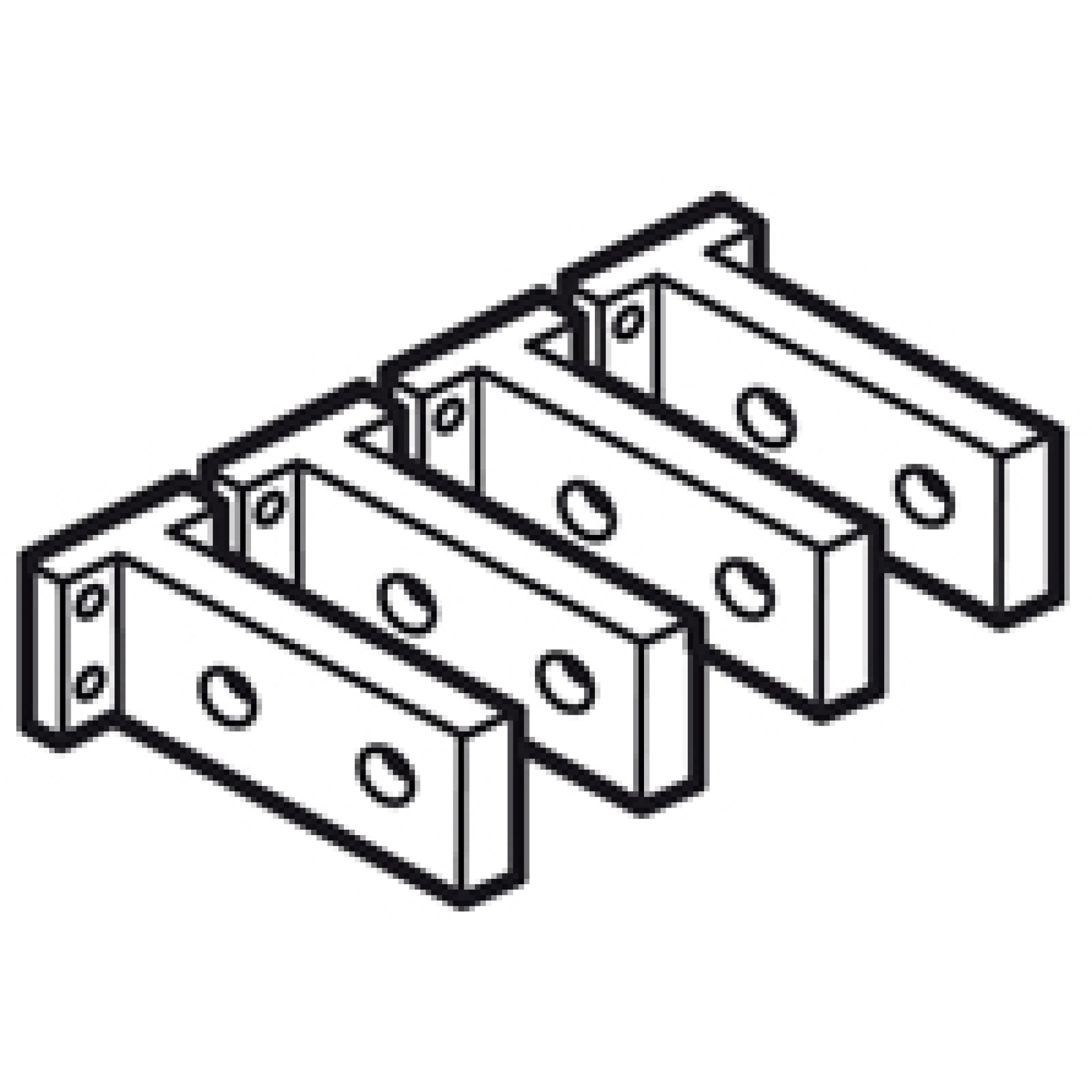

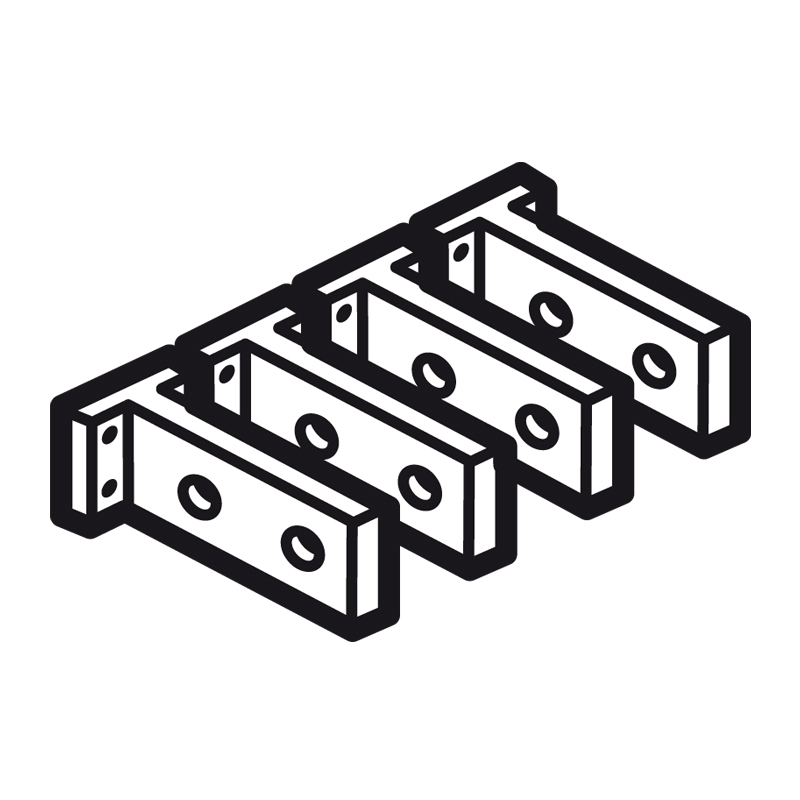

Rear terminals (8) - for DPX 1250/1600 - short - incoming or outgoing - 4P
Documente
Fisa tehnica
Instructiuni
Specificatii
| Application | |
| Suitable for | Flat rail |
| Measurements | |
| Width clamp | 40 |
| Busbar width | 40 |
| Busbar thickness | 11.5 |
| Electrical | |
| Max. rated operation current Ie | 1600 |
| Connection | |
| Suitable for round conductor connection | No |
| Suitable for strip conductor connection | No |
| Suitable for sector conductor connection | Yes |
| Max. conductor cross section | 480 |
| Package 1 | |
| volume | 0,01148 |
| weight | 7,715 |
| length | 0,195 |
| width | 0,203 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 3245060263829 |
| Package 2 | |
| volume | 0,516 |
| weight | 138,87 |
| length | 0,43 |
| width | 1,2 |
| qmax | 18 |
| qmin | 18 |
| um | PF |
| gtin | 3414971926141 |
