Descriere

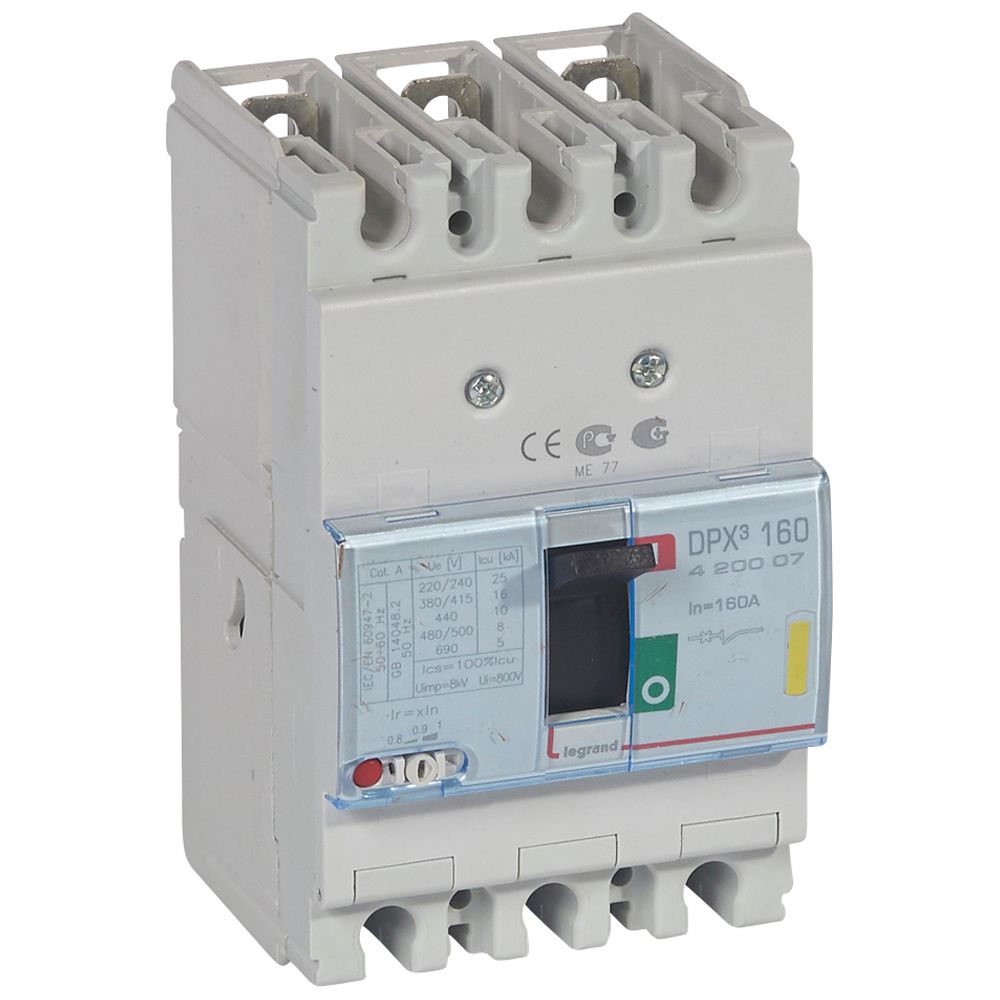

MCCB thermal magnetic - DPX³ 160 - Icu 16 kA - 400 V~ - 3P - 160 A
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Protection | |
| Degree of protection (IP) | IP30 |
| Integrated earth fault protection | No |
| Complete device with protection unit | Yes |
| Connection | |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as change-over contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Screw connection |
| Position of connection for main current circuit | Front side |
| Electrical | |
| Adjustment range undelayed short-circuit release | 1600 |
| With integrated under voltage release | Yes |
| Number of poles | 3 |
| Overload release current setting | 128 |
| Adjustment range short-term delayed short-circuit release | 1600 |
| Power loss | - |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 16 |
| Rated permanent current Iu | 160 |
| Rated voltage | 220 |
| Mounting/installation | |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| DIN rail (top hat rail) mounting optional | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Model/type | |
| Motor drive integrated | No |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Options | |
| Motor drive optional | Yes |
| Package 1 | |
| volume | 0,002447 |
| weight | 1,14 |
| length | 0,115 |
| width | 0,115 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 3245064200073 |
| Package 2 | |
| volume | 0,864 |
| weight | 319,2 |
| length | 0,72 |
| width | 1,2 |
| qmax | 280 |
| qmin | 280 |
| um | PF |
| gtin | 3414971683280 |
