Descriere

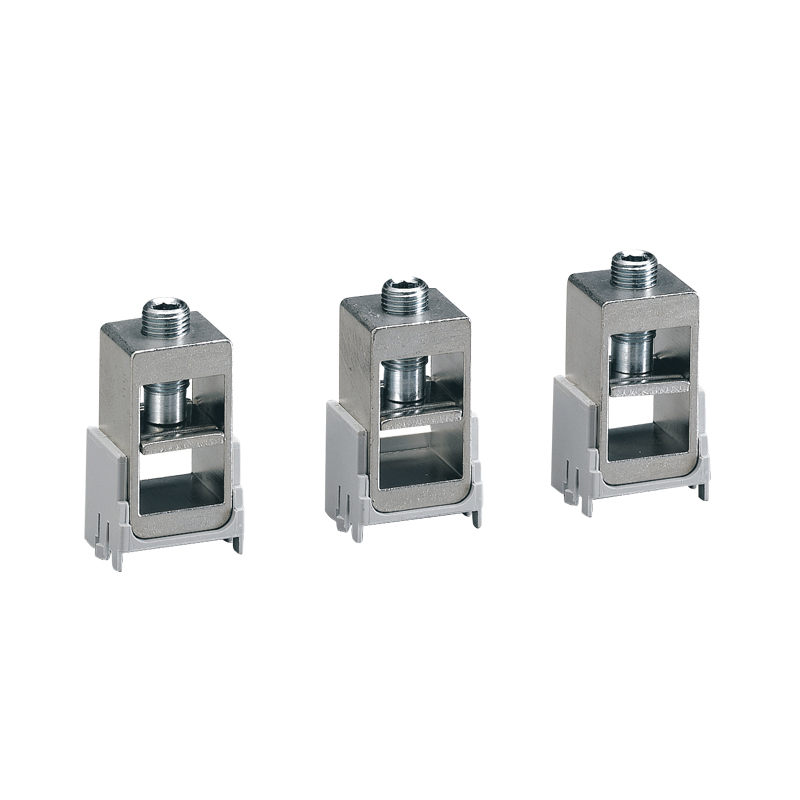

Cage terminals (x 3) - for DPX³ 250
Documente
Fisa tehnica
Instructiuni
Specificatii
| Measurements | |
| Height | 20 |
| Depth | 38 |
| Width | 22 |
| Electrical | |
| Nominal current | - |
| Number of poles | 3 |
| Connection | |
| Connection type | Screwing |
| Conductor cross section, output AWG | - |
| Conductor cross section, output | - |
| Conductor cross section, input AWG | - |
| Conductor cross section, input | - |
| Number of outputs | - |
| Number of inputs | - |
| Mounting/installation | |
| Mounting method | - |
| Options | |
| Contact safe | Yes |
| Application | |
| Suitable for extra fine-strand conductors | - |
| Suitable for extra fine-strand conductors without cable end sleeve | - |
| Suitable for fine strand conductors without cable end sleeve | - |
| Suitable for stranded conductors | - |
| Suitable for fine strand conductors | - |
| Suitable for solid conductors | - |
| Package 1 | |
| volume | 0,00031 |
| weight | 0,134 |
| length | 0,047 |
| width | 0,061 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064210300 |
| Package 2 | |
| volume | 0,003675 |
| weight | 1,153 |
| length | 0,125 |
| width | 0,14 |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 3414971565463 |
| Package 3 | |
| volume | 0,4956 |
| weight | 89,934 |
| length | 0,413 |
| width | 1,2 |
| qmax | 624 |
| qmin | 624 |
| um | PF |
| gtin | 3414971565470 |
| Dimensions of product | |
| Length | 0,022 |
| Width | 0,02 |
| Depth | 0,038 |
