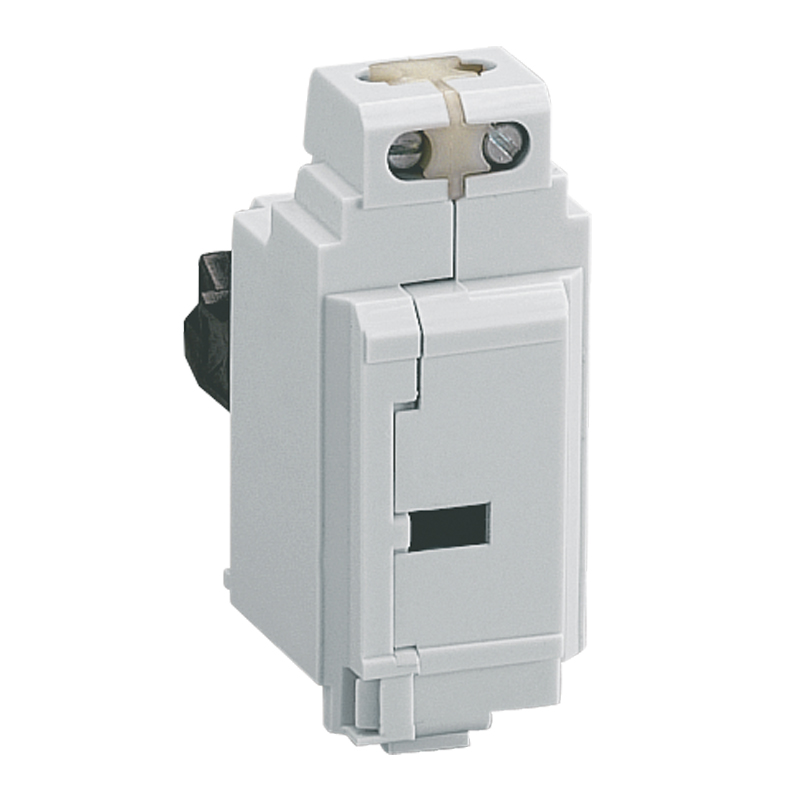

Undervoltage release - for DPX³ - 200-240 V~/=
Documente
Fisa tehnica
Instructiuni
Specificatii
| Electrical | |
| Rated control supply voltage DC | - |
| Voltage type for actuating | DC |
| Rated control supply voltage AC 50 Hz | 200 |
| Rated control supply voltage AC 60 Hz | 200 |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Type of electric connection | Screw connection |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Options | |
| Delayed | No |
| Application | |
| Suitable for off-load switch | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for motor safety switch | Yes |
| Suitable for overload relay | Yes |
| Package 1 | |
| volume | 0,000437 |
| weight | 0,073 |
| length | 0,056 |
| width | 0,071 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064210225 |
| Package 2 | |
| volume | 0,007696 |
| weight | 1,004 |
| length | 0,13 |
| width | 0,2 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 3414971565302 |
| Package 3 | |
| volume | 0,336 |
| weight | 20,08 |
| length | 0,28 |
| width | 1,2 |
| qmax | 240 |
| qmin | 240 |
| um | PF |
| gtin | 3414972397858 |
