Descriere

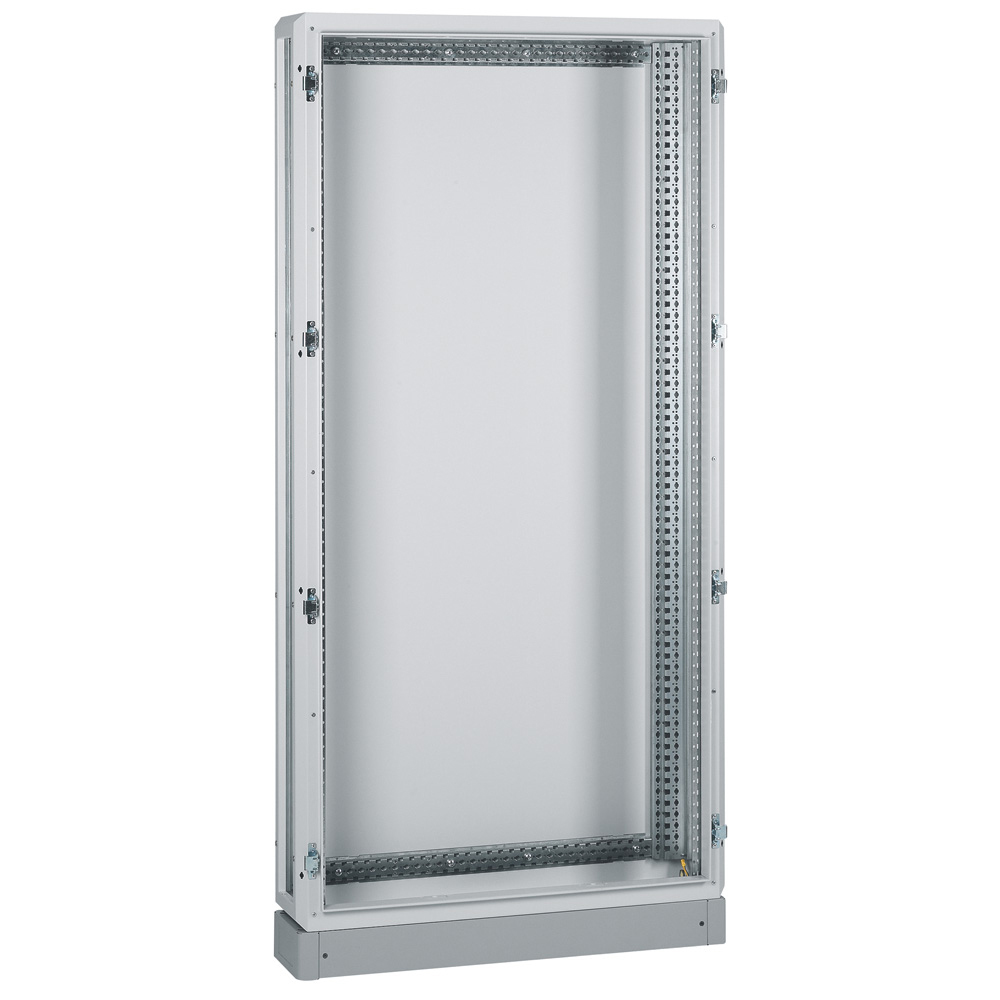

Metal enclosure XL³ 800 - IP 55 - 36/24 mod/row - 1995x700x225 mm
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Connection | |
| Number of connector holes | - |
| Mounting/installation | |
| Suitable for wall built-in | No |
| Suitable for metrical mounting | - |
| With mounting plate | No |
| Mounting plate depth-adjustable | No |
| Pole fastening | No |
| Intermediate mounting | - |
| Suitable for wall mounting | - |
| Measurements | |
| Height | 1995 |
| Depth | 225 |
| Width | 955 |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | Other |
| Model/type | |
| Number of doors | 1 |
| Number of locks | 1 |
| Pitched roof | No |
| With cover | - |
| With ventilation door | No |
| With glazed door | Yes |
| Suitable for outdoor installation | No |
| Transparent cover | - |
| With door | - |
| Floor standing wall model | - |
| Freestanding | - |
| With rear door | No |
| EMC-version | No |
| Corner model | - |
| Material | |
| Material | Steel |
| Surface finishing | Powder coating |
| Material quality | Other |
| Performance | |
| Max. permitted load of the enclosure according to IEC 62208 | - |
| Max. permitted load of the mounting plate according to IEC 62208 | - |
| Max. permitted load of the door(s) according to IEC 62208 | - |
| Energy efficiency/environmental | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | - |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Options | |
| Couplable | - |
| Pre-stamping | - |
| Other | |
| Impact strength | IK08 |
| Package 1 | |
| volume | 0,573983 |
| weight | 80,4 |
| length | 0,29 |
| width | 0,975 |
| qmax | 1 |
| qmin | 1 |
| um | CT |
| gtin | 3245060204594 |
| Package 2 | |
| volume | 0,968 |
| weight | 80,4 |
| length | 0,44 |
| width | 2,2 |
| qmax | 1 |
| qmin | 1 |
| um | PF |
| Dimensions of product | |
| Length | 1,995 |
| Width | 0,955 |
| Depth | 0,225 |
