Descriere

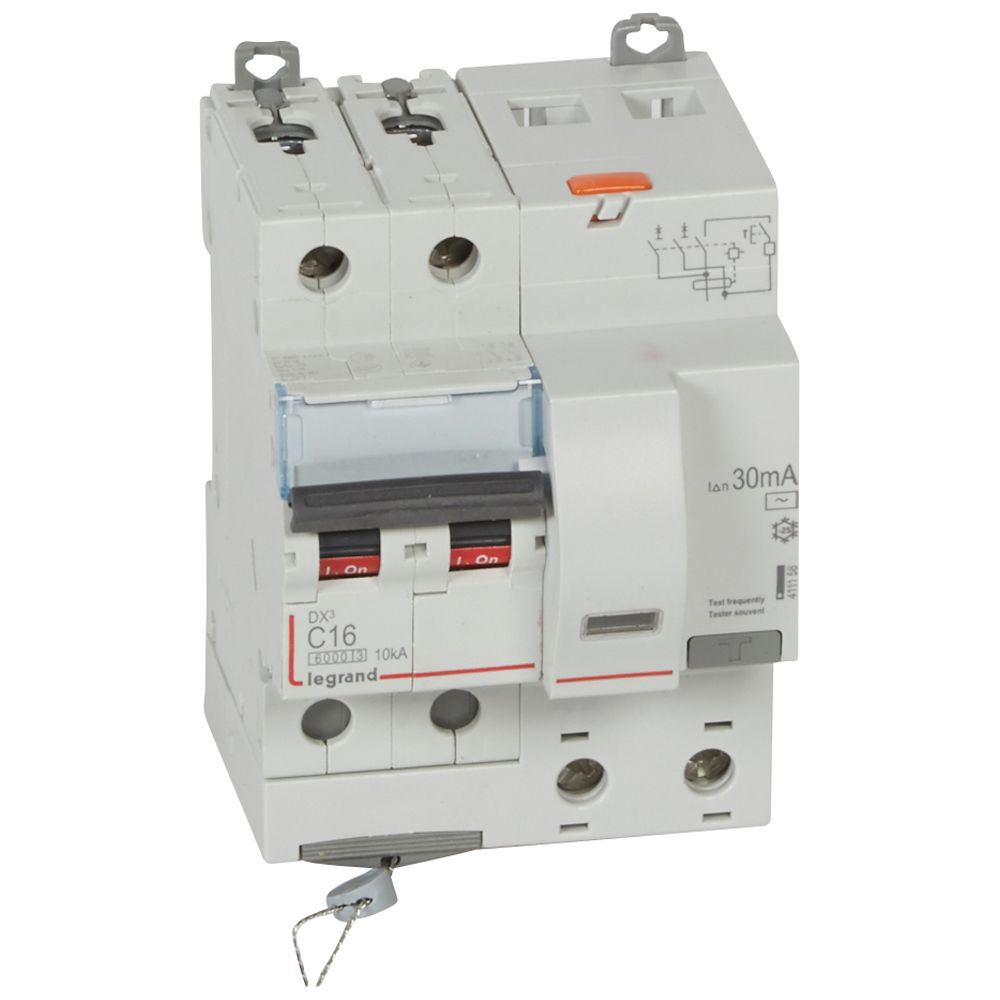

RCBO - DX³ 6000 -10 kA -2P-230 V~ -16 A -30 mA -AC type
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Connection | |
| Connectable conductor cross section solid-core | 1 |
| Connectable conductor cross section multi-wired | 1 |
| Disconnection characteristic | - |
| Operating conditions | |
| Ambient temperature during operating | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Electrical | |
| Leakage current type | AC |
| Voltage type | AC |
| Surge current capacity | 0.25 |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 10 |
| Rated short-circuit breaking capacity according to EN 61009 | 6 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 |
| Rated fault current | 0.03 |
| Rated impulse withstand voltage Uimp | - |
| Power loss | - |
| Rated insulation voltage Ui | - |
| Overvoltage category | - |
| Rated current | 16 |
| Current limiting class | 3 |
| Release characteristic | C |
| Rated voltage | 230 |
| Options | |
| Concurrently switching neutral conductor | Yes |
| Anti-nuisance tripping version | No |
| Mounting/installation | |
| Mounting method | - |
| Model/type | |
| Number of protected poles | 2 |
| Number of poles (total) | 2 |
| With interlocking device | Yes |
| Measurements | |
| Built-in depth | 44 |
| Width in number of modular spacings | 4 |
| Package 1 | |
| volume | 0,001063 |
| weight | 0,462 |
| length | 0,1 |
| width | 0,085 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064111584 |
| Package 2 | |
| volume | 0,024432 |
| weight | 8,62 |
| length | 0,206 |
| width | 0,298 |
| qmax | 18 |
| qmin | 18 |
| um | CT |
| gtin | 3414970747334 |
| Package 3 | |
| volume | 0,4428 |
| weight | 86,2 |
| length | 0,369 |
| width | 1,2 |
| qmax | 180 |
| qmin | 180 |
| um | PF |
| gtin | 3414970747341 |
