Descriere

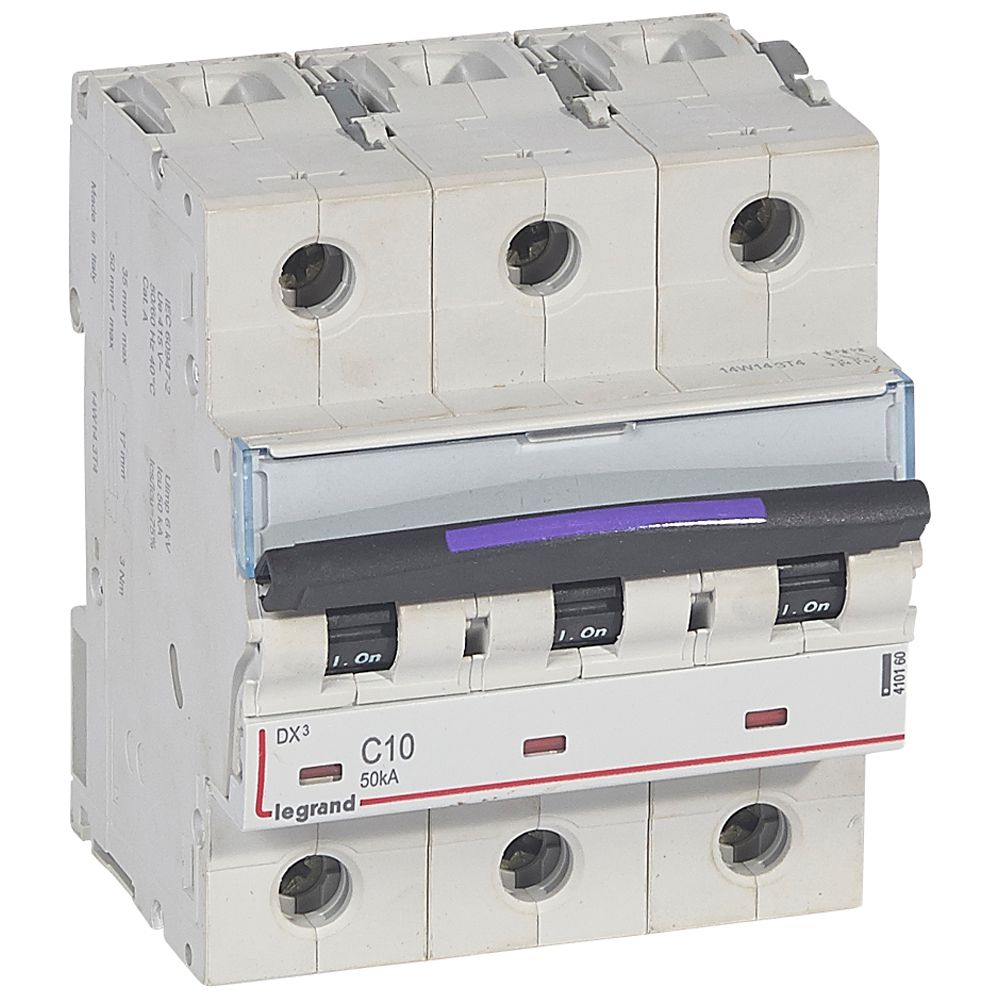

MCB - DX³ - 50 kA - 3P - 400 V~ - 10 A - C curve
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Protection | |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Connection | |
| Connectable conductor cross section solid-core | 1.5 |
| Connectable conductor cross section multi-wired | 1.5 |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Electrical | |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | - |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 50 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 100 |
| Rated impulse withstand voltage Uimp | 6 |
| Power loss | - |
| Rated insulation voltage Ui | 500 |
| Overvoltage category | - |
| Rated current | 10 |
| Current limiting class | - |
| Release characteristic | C |
| Rated voltage | 400 |
| Options | |
| Concurrently switching neutral conductor | No |
| Additional equipment possible | Yes |
| Model/type | |
| Number of protected poles | 3 |
| Number of poles (total) | 3 |
| Other | |
| Frequency | 50 |
| Pollution degree | 3 |
| Measurements | |
| Built-in depth | 47 |
| Width in number of modular spacings | 4.5 |
| Mounting/installation | |
| Flush-mounted installation | Yes |
| Package 1 | |
| volume | 0,00104 |
| weight | 0,662 |
| length | 0,086 |
| width | 0,108 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064101608 |
| Package 2 | |
| volume | 0,007696 |
| weight | 3,61 |
| length | 0,13 |
| width | 0,2 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 3414971560802 |
| Package 3 | |
| volume | 0,3516 |
| weight | 72,2 |
| length | 0,293 |
| width | 1,2 |
| qmax | 100 |
| qmin | 100 |
| um | PF |
| gtin | 3414971560819 |
| Dimensions of product | |
| Length | 0,1275 |
| Width | 0,0801 |
| Depth | 0,0792 |
