Descriere

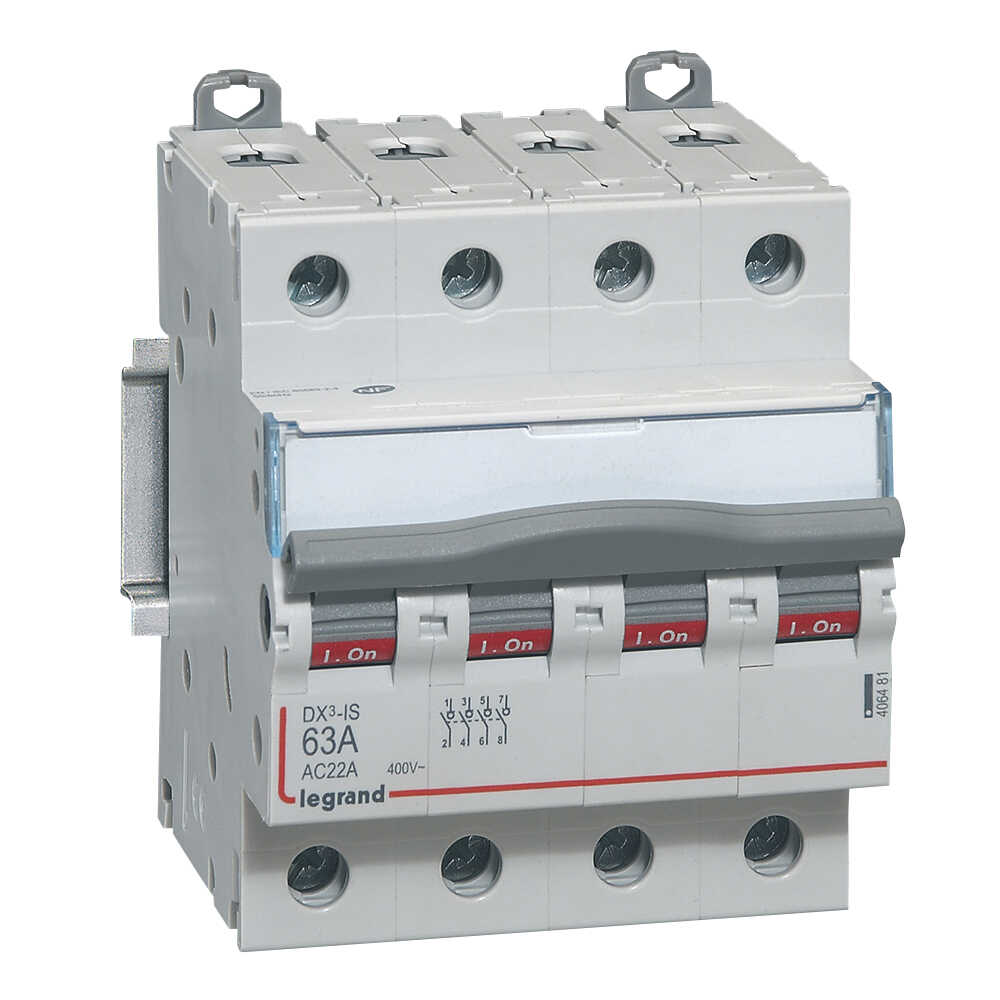

Isolating switch - 4P - 400 V~ - 63 A
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| Version as safety switch | Yes |
| Version as maintenance-/service switch | No |
| Version as main switch | Yes |
| Version as emergency stop installation | No |
| Number of switches | - |
| Motor drive integrated | No |
| Type of control element | Wing knob |
| With pre-assembled cabling | - |
| Measurements | |
| Height | - |
| Width in number of modular spacings | - |
| Depth | - |
| Width | - |
| Material | |
| Housing material | - |
| Connection | |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as change-over contact | - |
| Number of auxiliary contacts as normally closed contact | - |
| Type of electrical connection of main circuit | Screw connection |
| Electrical | |
| Max. rated operation voltage Ue AC | 400 |
| Rated permanent current at AC-23, 400 V | - |
| Rated short-time withstand current lcw | - |
| Number of poles | 4 |
| Rated operation power at AC-3, 400 V | - |
| Conditioned rated short-circuit current Iq | 4500 |
| Rated operation power at AC-23, 400 V | - |
| Rated permanent current Iu | 63 |
| Switching power at 400 V | - |
| Rated permanent current at AC-21, 400 V | - |
| Rated operating voltage | - |
| Options | |
| Interlockable | Yes |
| Voltage release optional | - |
| Version as reversing switch | - |
| Motor drive optional | No |
| Protection | |
| Degree of protection (NEMA) | - |
| Degree of protection (IP), front side | IP20 |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Colour | |
| Housing colour | - |
| Colour control element | - |
| Mounting/installation | |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for intermediate mounting | No |
| Suitable for floor mounting | No |
| Application | |
| Suitable for distribution board installation | Yes |
| Package 1 | |
| volume | 0,000701 |
| weight | 0,361 |
| length | 0,089 |
| width | 0,078 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 3245064064811 |
| Package 2 | |
| volume | 0,023128 |
| weight | 11,19 |
| length | 0,195 |
| width | 0,298 |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 3414971731660 |
| Package 3 | |
| volume | 0,924 |
| weight | 335,7 |
| length | 0,77 |
| width | 1,2 |
| qmax | 900 |
| qmin | 900 |
| um | PF |
| gtin | 3414971731677 |
