Descriere

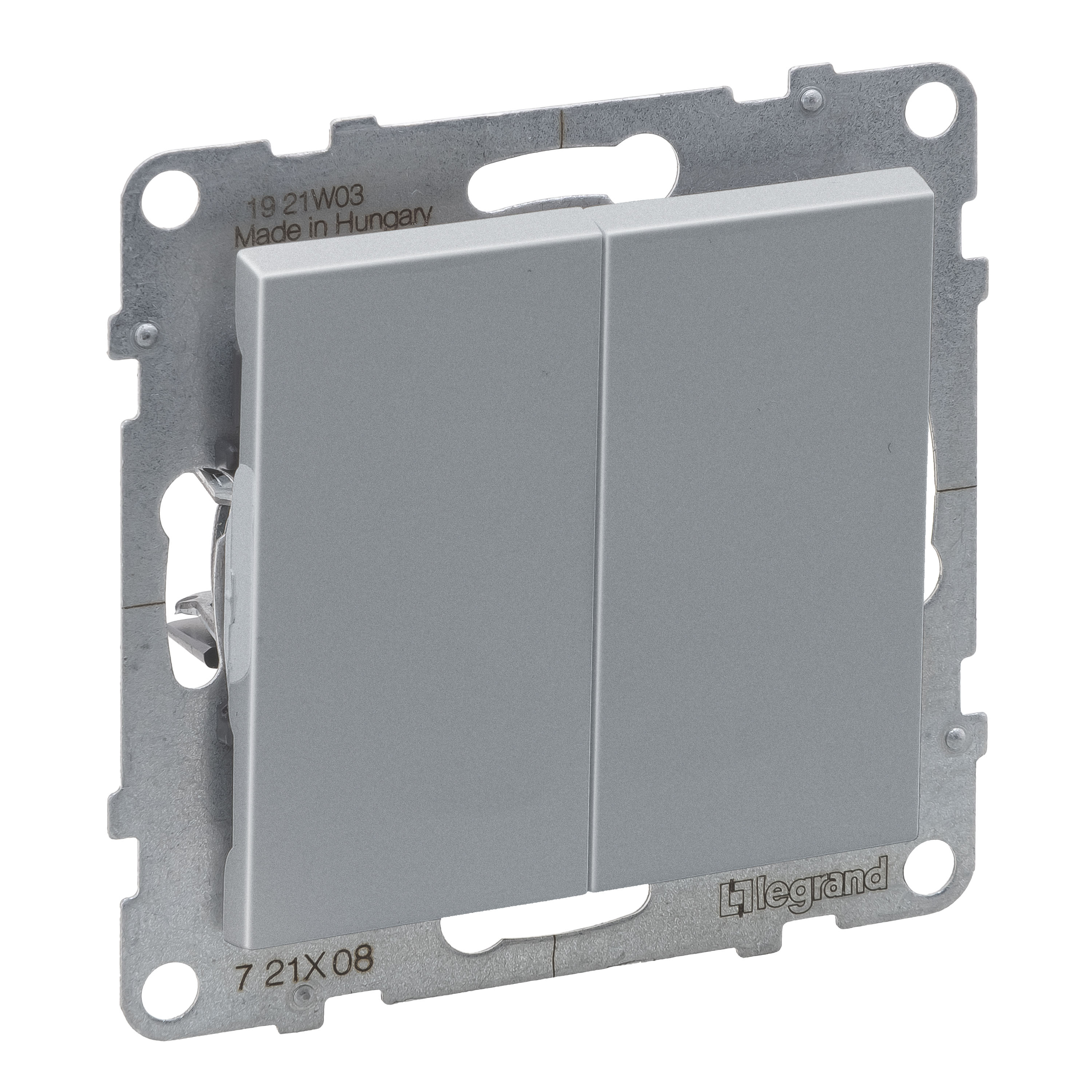

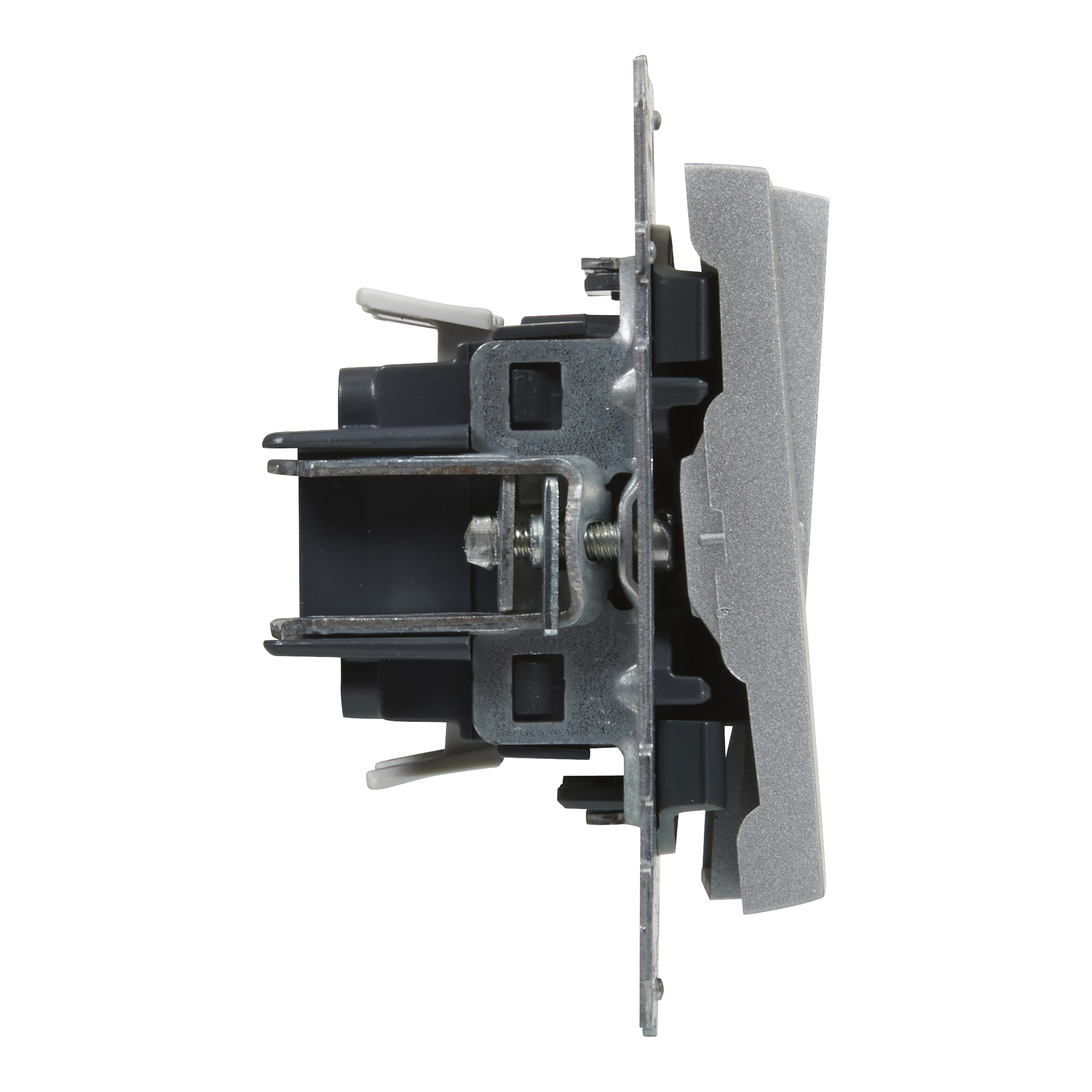

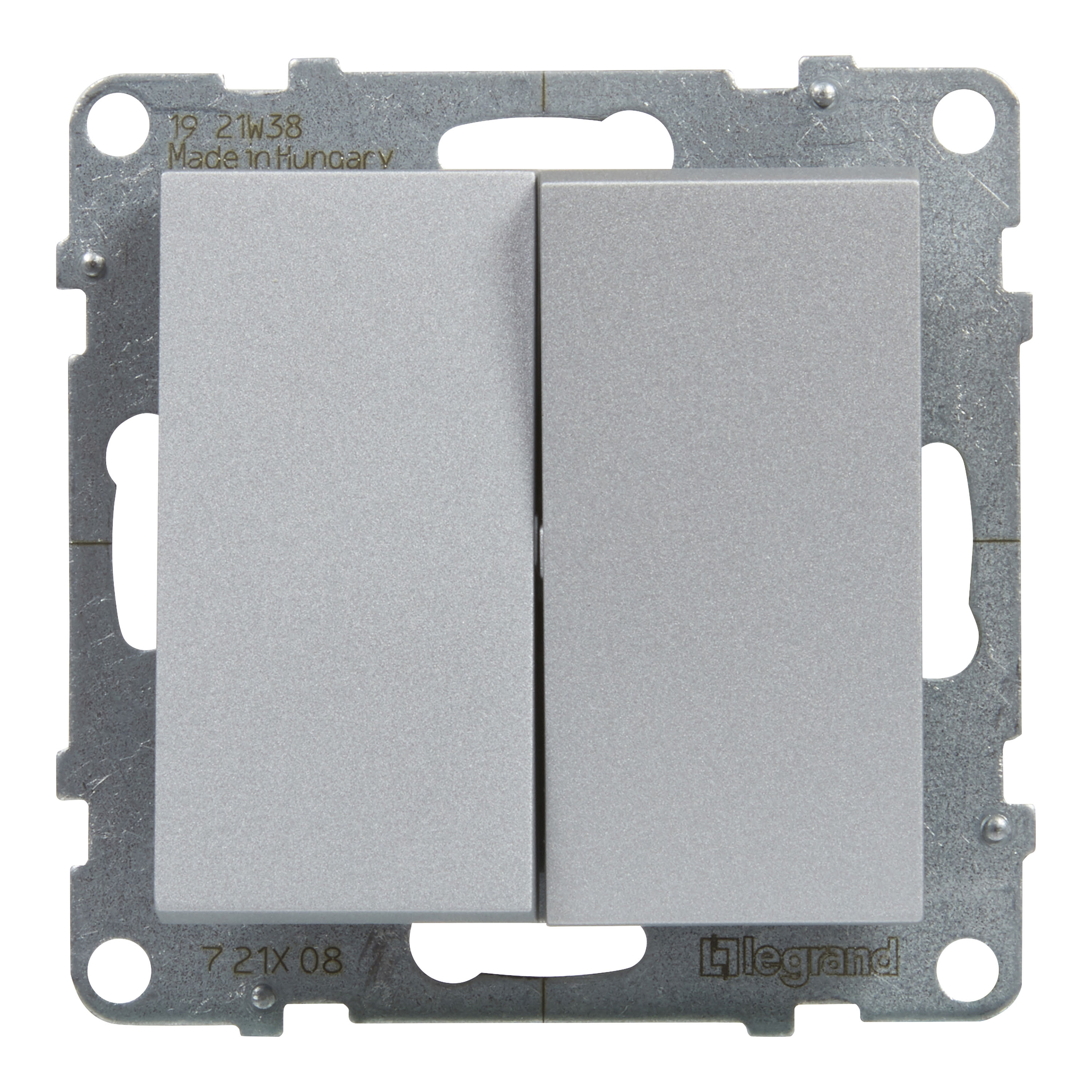

2-GANG TWO-WAY SWITCH 10AX AUTOMATIC TERMINALS ALUMINIUM
Documente
Specificatii
| Model/type | |
| Label space/information surface | No |
| Number of modules (module system) | 1 |
| Heating switch | No |
| Type of lighting | - |
| Washing machine switch | No |
| Lighting | No |
| Assembly arrangement | Basic element with central cover plate |
| Number of rockers | 2 |
| Material | |
| Material | Plastic |
| Surface finishing | Matt |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Connection | |

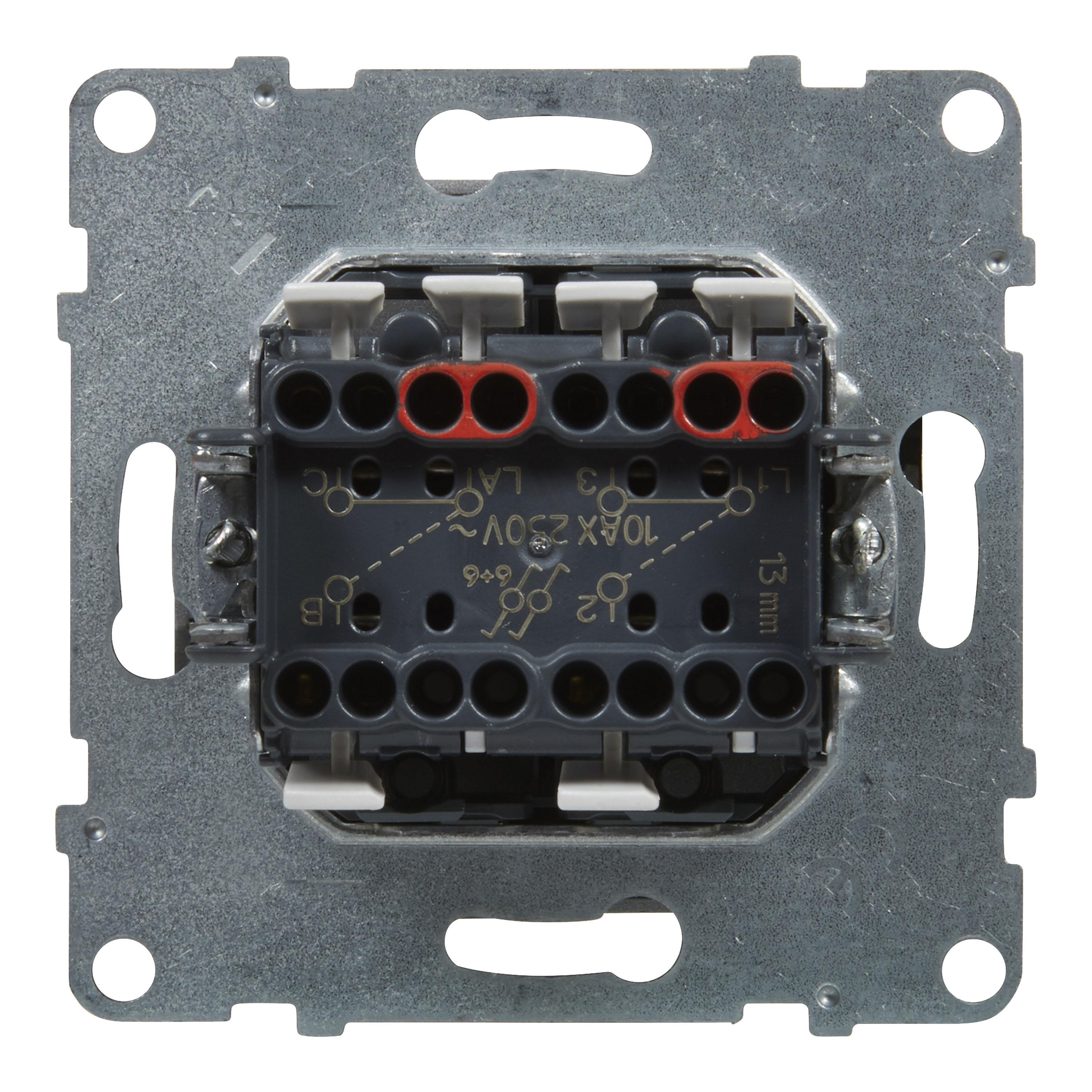

| Connection type | Push-in clamp |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Type of fastening | Mounting with claw and screw |
| With mounting plate | Yes |
| Other | |
| Wiring system | Two-way switch |
| Imprint/indication | - |
| Function lighting | - |
| Impact strength | IK04 |
| Electrical | |
| Nominal voltage | 250 |
| Switching current for fluorescent lamps | 10 |
| Rated current | 10 |
| Options | |
| Push button switch | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Colour | |
| Colour of switch operator | Aluminium |
| RAL-number (similar) | - |
| Colour | Aluminium |
| Measurements | |
| Min. depth of built-in installation box | 32 |
| Built-in depth | 28 |
| Device diameter | - |
| Device depth | 40 |
| Device width | 72.9 |
| Device height | 72.9 |
| Approval/certification | |
| Compliant with UK Building Regulations Part M | - |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Setting/control | |
| Method of operation | Rocker/button |
| Package 1 | |
| volume | 0,002064 |
| weight | 0,416 |
| length | 0,115 |
| width | 0,093 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 3414972040709 |
| Package 2 | |
| volume | 0,048077 |
| weight | 8,844 |
| length | 0,202 |
| width | 0,398 |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 3414972145824 |
| Package 3 | |
| volume | 0,4224 |
| weight | 44,22 |
| length | 0,352 |
| width | 1,2 |
| qmax | 500 |
| qmin | 500 |
| um | PF |
| gtin | 3414972628686 |
| Dimensions of product | |
| Length | 0,0729 |
| Width | 0,0729 |
| Depth | 0,04 |
