Descriere

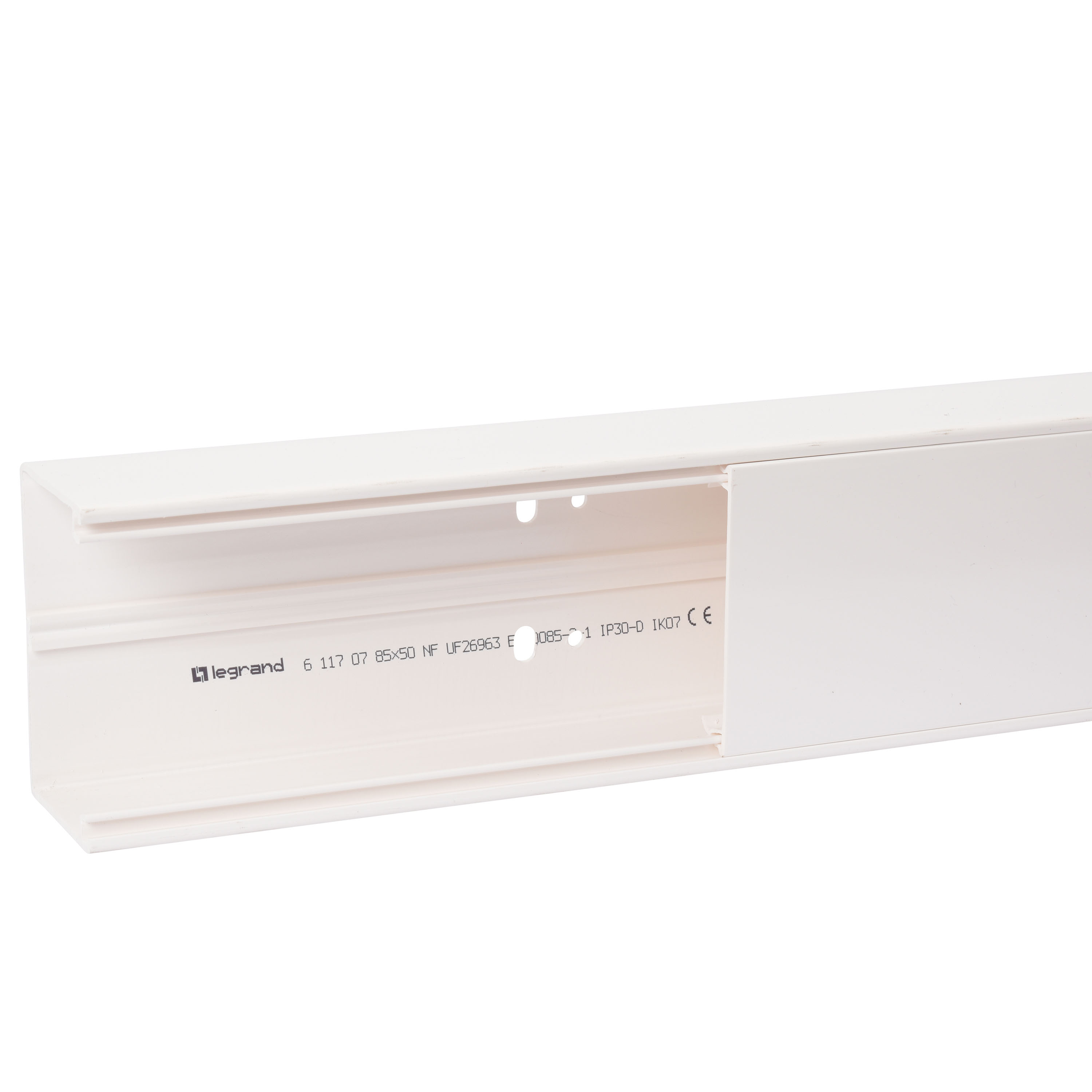

Trunking without halogen 85x50
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Protection | |
| Degree of protection (IP) | IP3X |
| Material | |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Other |
| Surface protection | Untreated |
| Model/type | |
| Construction type rectangular | Yes |
| Construction rear wall (inner side) | Perforated |
| Number of plug-in partitions | 1 |
| With cable fixing clip | No |
| With protective foil | Yes |
| Number of covers | 1 |
| Covers included | Yes |
| Options | |
| Bottom perforation | Yes |
| Symmetric | Yes |
| Anti-bacterial treatment | No |
| Operating conditions | |
| Operating temperature | 15 |
| Colour | |
| RAL-number | - |
| Colour | White |
| Measurements | |
| Cover width 1 | 80 |
| Cover width 3 | - |
| Cover width 2 | - |
| Depth | 50 |
| Length | 2000 |
| Width | 85 |
| Other | |
| Impact strength | IK07 |
| Connection | |
| Usable cross section | 3585 |
| With duct connector | No |
| Mounting/installation | |
| Mounting method cover | Inner lying |
| Package 1 | |
| volume | 0,076312 |
| weight | 17,3 |
| length | 0,112 |
| width | 0,334 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 3414970862952 |
| Package 2 | |
| volume | 1,6443 |
| weight | 259,5 |
| length | 0,81 |
| width | 2,03 |
| qmax | 360 |
| qmin | 360 |
| um | PF |
| gtin | 3414972127677 |
| Dimensions of product | |
| Length | 0,05 |
| Width | 0,085 |
| Depth | 2 |
