Descriere

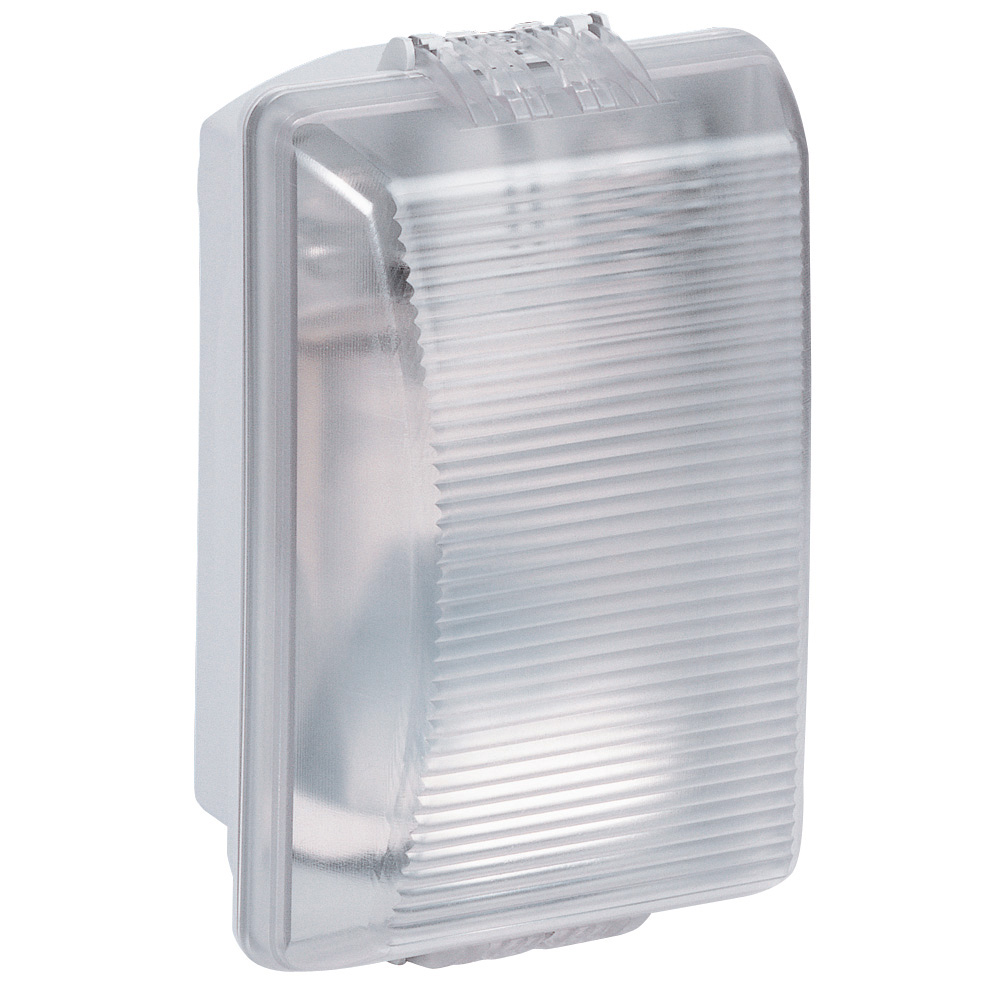

Bulkhead light Plexo - IP 54 - IK 08 - rectangular - 55 W incandescent - clear
Documente
Instructiuni
Declaratie de conformitate
Specificatii
| Connection | |
| Conductor cross section | - |
| Connection type | - |
| Connectable conductor cross section | - |
| Exchangeable control gear | - |
| Mounting/installation | |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for suspended mounting | No |
| With mounting material | - |
| Suitable for built-in mounting | No |
| Suitable for clamp-mounting | - |
| Suitable for wall mounting | Yes |
| Model/type | |
| Lamp type | Incandescent lamp |
| With control gear | No |
| With light sensor | No |
| With light source | No |
| Type of wiring | - |
| With movement sensor | No |
| With switch | - |
| Type of grid | None |
| With air slots | No |
| Dimming potentiometer (integrated) | No |
| Lamp holder | E27 |
| With presence detector | - |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible with Casambi | - |
| Material | |
| Material cover | Plastic, opal |
| Surface protection housing | - |
| Housing material | Plastic |
| Other | |
| Light distribution | Asymmetric |
| Light outlet | Direct |
| Movement sensor/presence detector technology | - |
| Impact strength | IK08 |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Total harmonic distortion (THD) | - |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | - |
| Luminaire efficacy | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | - |
| Rated luminous flux according to IEC 62722-2- 1 | 900 |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | - |
| Light distributor | Diffuser lens/optic/panel |
| Flickering value Pst LM | - |
| Stroboscope effect value SVM | - |
| Rated lifetime L70/B50 at 25 °C | - |
| Suitable for number of light sources | 1 |
| Unified Glare Ratio (UGR) | - |
| Beam angle | > 80° - Extreme wide beam |
| Measurements | |
| Built-in height/depth | - |
| Height/depth | 113 |
| Width | 140 |
| Built-in length | 219 |
| Length | 219 |
| Built-in width | - |
| Outer diameter | - |
| Built-in diameter | - |
| Electrical | |
| Max. system power | 55 |
| Nominal current | 239 |
| Voltage type | AC |
| Number of poles | - |
| Nominal voltage | 110 |
| Power factor | - |
| Suitable for lamp power | 55 |
| Emergency power supply system | - |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) | - |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) | - |
| Power consumption in emergency mode | - |
| Max. number of luminaires per miniature circuit breaker C10 (MCB) | - |
| Colour | |
| Colour temperature | 2700 |
| Colour of light adjustable | - |
| Colour rendering index CRI | 90-100 |
| Colour of light | White |
| Housing colour | Grey |
| Colour consistency (McAdam ellipse) | - |
| Energy efficiency/environmental | |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | - |
| Containing product according to 2019/2020/EU | - |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | - |
| Photobiological safety according to EN 62471 | - |
| Performance | |
| Luminous intensity | 0 |
| Luminous flux in emergency mode | 900 |
| Options | |
| Dimming DSI | No |
| Dimming manufacturer's proprietary system | No |
| Dimming DALI-2 | - |
| IFTTT support available | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming phase cut-off (trailing edge) | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Emergency function monitoring system | - |
| Dimmable | No |
| Constant light output (CLO) | - |
| Protection | |
| Protection class according to IEC 61140 | II |
| Degree of protection (IP), front side | - |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Degree of protection (IP), rear side | - |
| Degree of protection (NEMA) | - |
| Ball-proof according to DIN 18032-3 | - |
| Setting/control | |
| Beam angle adjustable | - |
| Luminous flux adjustable | - |
| Dimming mains voltage modulation | No |
| Operation by Bluetooth | - |
| Type of control gear | Not required |
| Application | |
| Suitable for emergency lighting | No |
| Suitable for light line configuration | No |
| Suitable for workplace according to EN 12464-1 | No |
| Operating conditions | |
| Rated ambient temperature according to IEC 62722-2-1 | -10 |
| Approval/certification | |
| Filament test according to IEC 60695-2-11 | - |
| Package 1 | |
| volume | 0,028335 |
| weight | 2,663 |
| length | 0,171 |
| width | 0,323 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 3414971210554 |
| Package 2 | |
| volume | 2,0448 |
| weight | 143,802 |
| length | 1,704 |
| width | 1,2 |
| qmax | 270 |
| qmin | 270 |
| um | PF |
| gtin | 3414971210561 |
| Dimensions of product | |
| Length | 0,113 |
| Width | 0,14 |
| Depth | 0,219 |
