Descriere

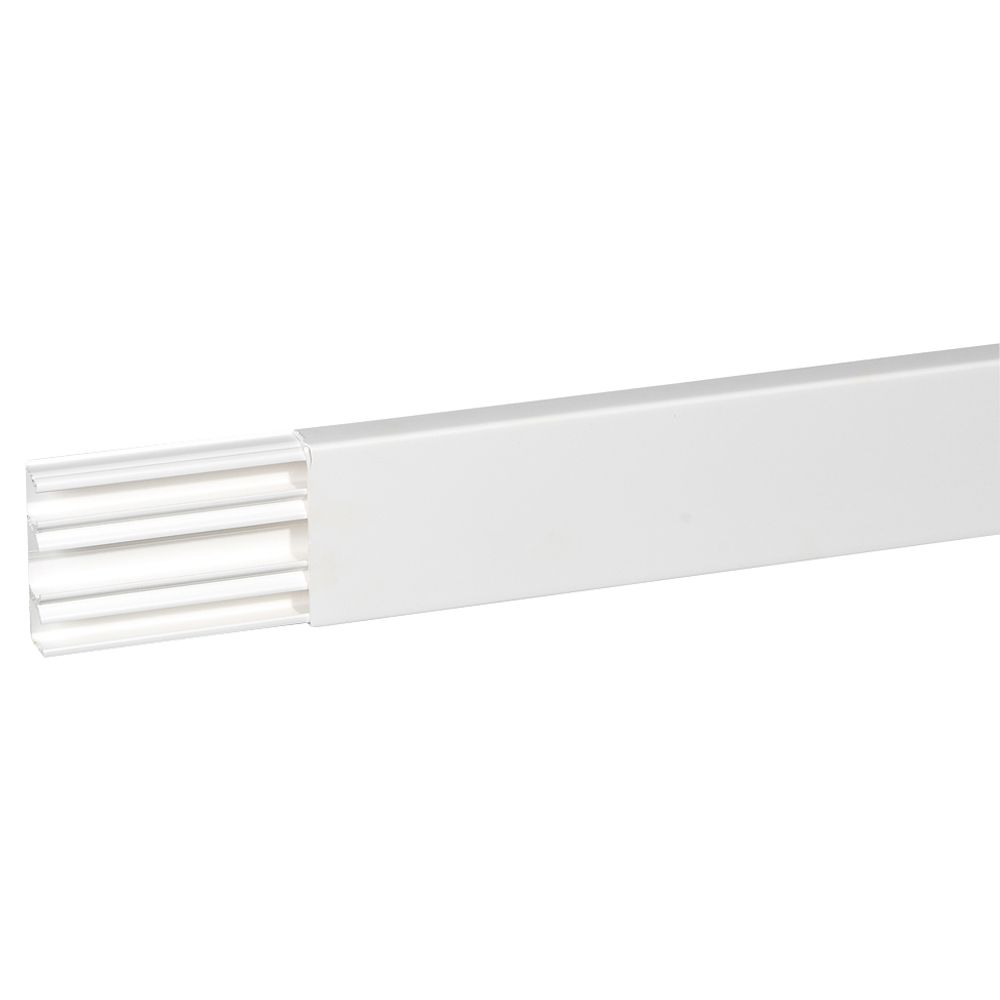

Mini-trunking DLPlus - 75x20 mm - with 2 partitions - L 2.1 m - white
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| Height | 20 |
| Width | 75 |
| Length | 2100 |
| Protection | |
| Degree of protection (IP) | IP40 |
| Material | |
| Material | Plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | No |
| Surface protection | Untreated |
| Mounting/installation | |
| Type of fastening | Bottom perforation |
| Model/type | |
| Cover model | Loose |
| Number of plug-in partitions | 0 |
| With cable fixing clip | Yes |
| With protective foil | No |
| Number of permanent partitions | 2 |
| Colour | |
| Transparent | No |
| RAL-number | 9003 |
| Colour | White |
| Operating conditions | |
| Operating temperature | -5 |
| Application | |
| Suitable for circuit integrity | No |
| Connection | |
| Usable cross section | 1025 |
| With duct connector | No |
| Other | |
| Impact strength | IK07 |
| Options | |
| Anti-bacterial treatment | No |
| Pre-stamping | - |
| Delivery on roll | No |
| Package 1 | |
| qmax | 2 |
| qmin | 2 |
| um | BG |
| gtin | 3414971338333 |
| Package 2 | |
| volume | 0,039794 |
| weight | 11,7 |
| length | 0,11 |
| width | 0,17 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 3414971160460 |
| Package 3 | |
| volume | 1,782 |
| weight | 351 |
| length | 0,81 |
| width | 2,2 |
| qmax | 600 |
| qmin | 600 |
| um | PF |
| gtin | 3414971160477 |
| Dimensions of product | |
| Length | 0,02 |
| Width | 0,075 |
| Depth | 2,1 |
